Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2584120000CABLE GLAND M63 POLYAMIDE |
1,488 |
|
Datasheet | Cable Gland - Splittable Body | - | - | M63 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|

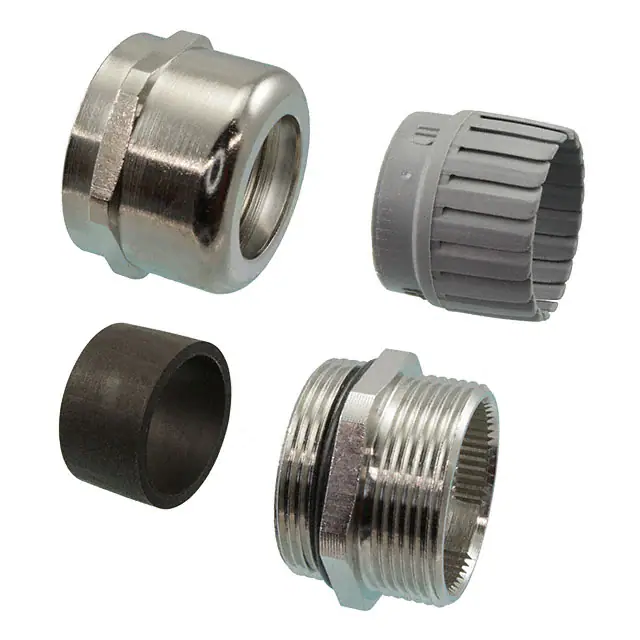

1909930000CABLE GLAND 15-21MM M32 BRASS |
3,481 |
|
Datasheet | Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1909780000CABLE GLAND 5-10MM PG11 POLYAMID |
4,622 |
|
- |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
|
1909860000CABLE GLAND 4-8MM M16 POLYAMIDE |
1,132 |
|
- |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1772280000CABLE GLAND 3.05-6.5MM M12 |
3,487 |
|
Datasheet | Cable Gland | 0.120" (3.05mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1569000000CABLE GLAND 6-12MM PG13.5 |
3,772 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1909720000CABLE GLAND 18.01-25MM M32 |
3,445 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
1569010000CABLE GLAND 10-14MM PG16 |
4,272 |
|
Datasheet | Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
1909690000CABLE GLAND 6-12MM M20 POLYAMIDE |
1,482 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
|
1772210000CABLE GLAND 4-8MM M16 BRASS |
2,937 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
