Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84181252CABLE GLAND 4-8MM M16 POLYAMIDE |
225 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
84181250CABLE GLAND 3-6.5MM M12 POLYAMID |
3,208 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
84181256CABLE GLAND 11-16.99MM M25 |
1,591 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
84181254CABLE GLAND 6-12MM M20 POLYAMIDE |
2,098 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|

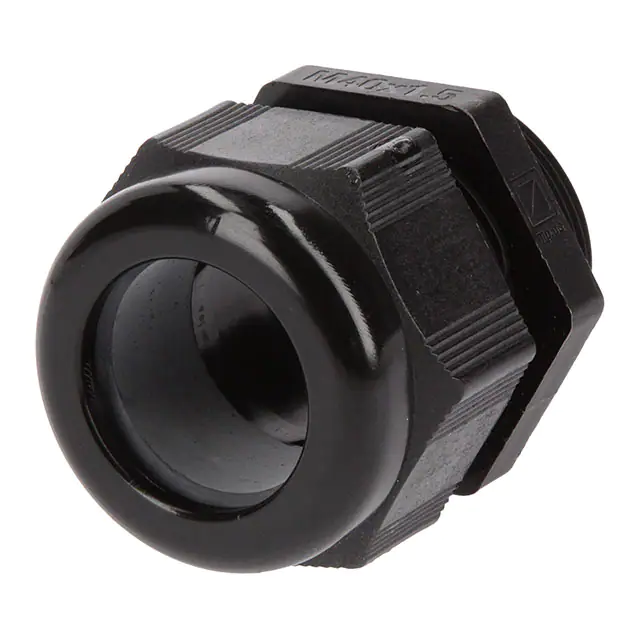

84181260CABLE GLAND 19-28MM M40 POLYAMID |
1,552 |
|
Datasheet | Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
84181262CABLE GLAND 30-38MM M50 POLYAMID |
2,593 |
|
Datasheet | Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | M50 | 0.709" (18.01mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 150°C | |
|
84241012CABLE GLND 11-13.5MM M20 S STEEL |
1,451 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.531" (13.50mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Stainless Steel | - | Silver | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
|
84241010CABLE GLAND 9-12MM M20 S STEEL |
4,878 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Stainless Steel | - | Silver | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
|
84241016CABLE GLAND 14-16MM M25 S STEEL |
3,038 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Stainless Steel | - | Silver | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C | |
|
|
84241018CABLE GLAND 15-18.01MM M25 |
3,556 |
|
Datasheet | Cable Gland | 0.591" (15.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Stainless Steel | - | Silver | IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 120°C |
