Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53112250CABLE GLND 11-18.01MM PG21 BRASS |
2,924 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112140CABLE GLAND 7-15MM M32 BRASS |
2,179 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
53112044CABLE GLAND 11-21MM 1" NPT BRASS |
4,087 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
S2542CABLE GLAND 34-45MM M63 POLYAMID |
3,715 |
|
Datasheet | Cable Gland | 1.339" (34.00mm) | 1.772" (45.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
53112260CABLE GLAND 16-25MM PG29 BRASS |
2,238 |
|
Datasheet | Cable Gland | 0.630" (16.00mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

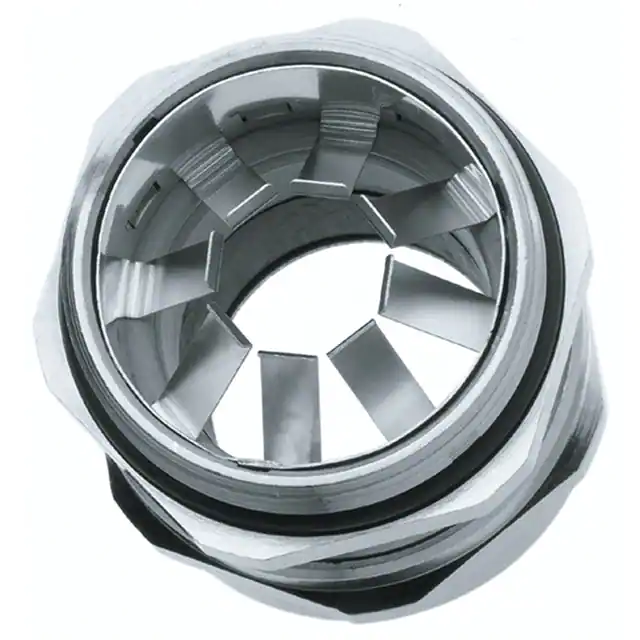

53112940CABLE GLAND 11-21MM 1" NPT BRASS |
2,101 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|

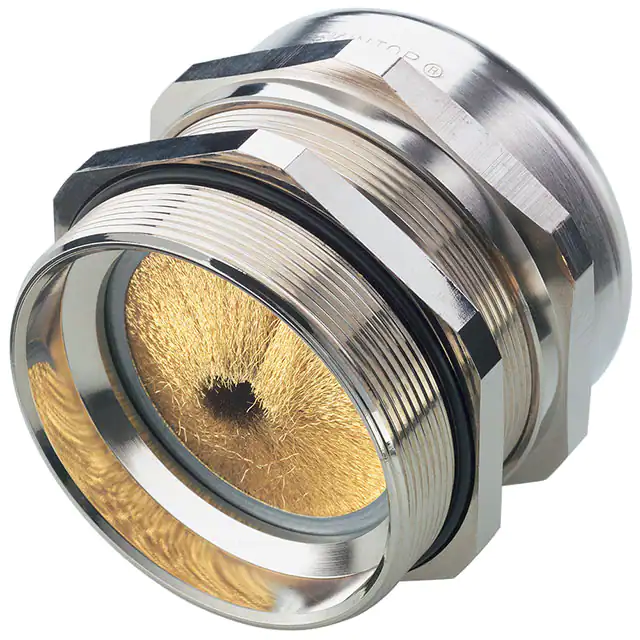

53112037CABLE GLAND 9-16.99MM 3/4" NPT |
4,230 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | - | |
|
|
53112046CABLE GLAND 7-15MM 1" NPT BRASS |
3,619 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | 1" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
53806739CABLE GLAND 4-7MM M12 S STEEL |
3,042 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

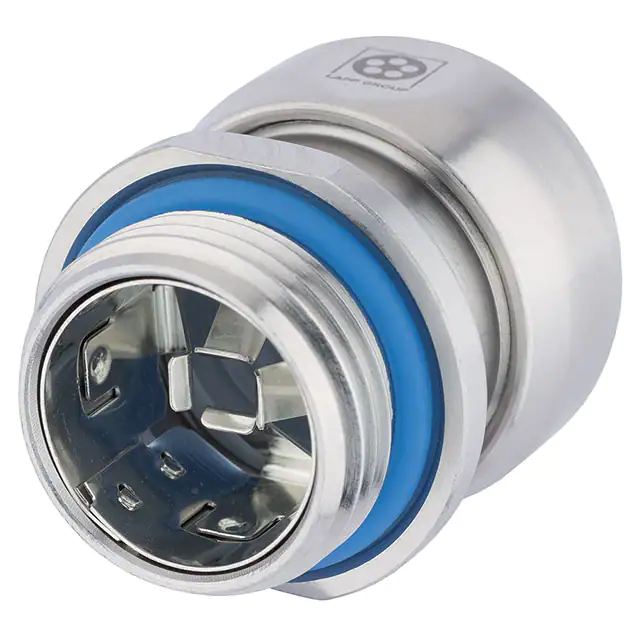

53806720CABLE GLAND 4.01-7MM M12 S STEEL |
4,855 |
|
Datasheet | Cable Gland | 0.158" (4.01mm) | 0.276" (7.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4, 6, 12 | -40°C ~ 100°C |
