Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1116CABLE GLAND 9-14MM PG16 POLYAMID |
6,328 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
S1113CABLE GLAND 6-12MM PG13 POLYAMID |
294 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13 | 0.354" (8.99mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
CG-NPT-3/4-2-BKCABLE GLAND 14-18.01MM 3/4" NPT |
675 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.067" (27.1mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
A1545.11.07CABLE GLAND 2-7MM PG11 POLYAMIDE |
211 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.276" (7.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
3239CABLE GRP 11.43-18.01MM 3/4" NPT |
2,476 |
|
Datasheet | Cable Grip | 0.450" (11.43mm) | 0.709" (18.01mm) | 3/4" NPT | 0.630" (16.00mm) | - | 1.067" (27.1mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
8437CABLE GRIP 14.99-25.4MM 1" NPT |
8,043 |
|
Datasheet | Cable Grip | 0.590" (14.99mm) | 1.000" (25.40mm) | 1" NPT | 0.750" (19.05mm) | - | 1.350" (34.3mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
S1112CABLE GLAND 5-12MM 1/2" NPT |
4,451 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
M4348CABLE GRIP 14.99-25.4MM M32 |
2,940 |
|
Datasheet | Cable Grip | 0.590" (14.99mm) | 1.000" (25.40mm) | M32 | 0.570" (14.48mm) | - | 1.260" (32.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
5309 624CABLE GLAND 5-12MM M25 POLYAMIDE |
183 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 953CABLE GLAND 9-18.01MM M25 |
10,612 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
PNC3/8 BK080CABLE GLAND 5-10MM 3/8" NPT |
595 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | 0.675" (17.2mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
3454CABLE GRIP 6.35-12.32MM PG21 |
360 |
|
Datasheet | Cable Grip | 0.250" (6.35mm) | 0.485" (12.32mm) | PG21 | 0.520" (13.21mm) | - | 1.114" (28.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
PPS7 BK080CABLE GLAND 3-6.5MM PG7 POLYAMID |
352 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.492" (12.5mm) | Polyamide (PA), Nylon | Gasket, Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
M3243CABLE GRIP 5.84-10.03MM PG11 |
2,079 |
|
Datasheet | Cable Grip | 0.230" (5.84mm) | 0.395" (10.03mm) | PG11 | 0.380" (9.65mm) | - | 0.732" (18.6mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M3235GBHCABLE GRIP 5.33-8.48MM 3/4" NPT |
630 |
|
Datasheet | Cable Grip - Split | 0.210" (5.33mm) | 0.334" (8.48mm) | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
M3234GBJCABLE GRIP 3.5-15.5MM 3/4" NPT |
576 |
|
Datasheet | Cable Grip, Oval Hole - Split | 0.138" (3.50mm) | 0.610" (15.50mm) | 3/4" NPT | 0.620" (15.75mm) | - | 1.040" (26.4mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
M3234GAQCABLE GRIP 3/4" NPT POLYAMIDE |
568 |
|
Datasheet | Cable Grip, Multi-Hole | - | - | 3/4" NPT | 0.620" (15.75mm) | - | 0.315" (8.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
5308 922CABLE GLAND 9-18.01MM 3/4" NPT |
1,635 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

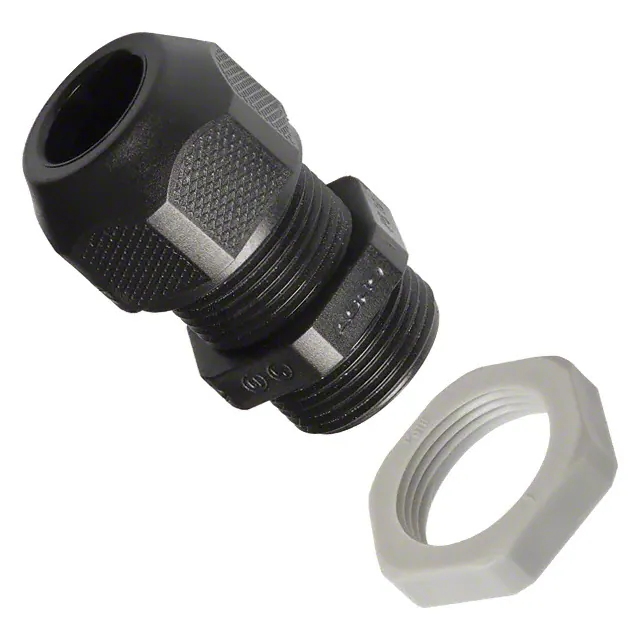

A1545.16.14CABLE GLAND 8.5-14MM PG16 |
156 |
|
Datasheet | Cable Gland | 0.335" (8.50mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
|
PPS11 BK080CABLE GLAND 5-10MM PG11 POLYAMID |
15,346 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Gasket, Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C |
