Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

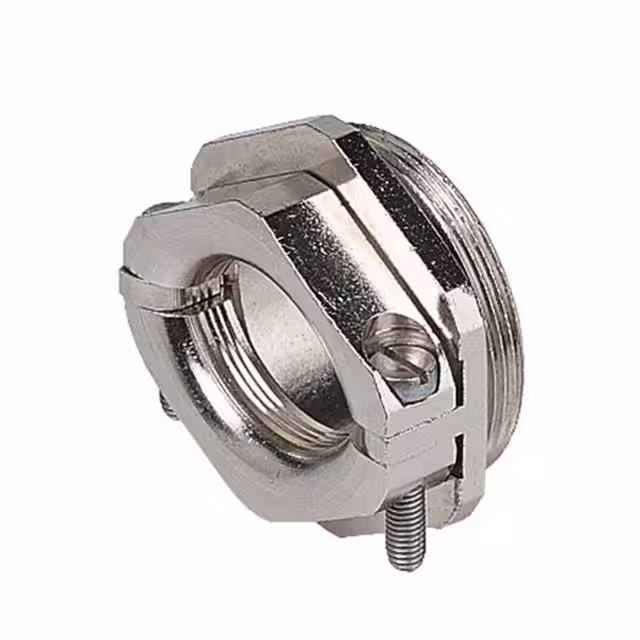

09000005196CABLE GLAND PG36 BRASS |
3,472 |
|
Datasheet | Cable Gland | - | - | PG36 | - | - | - | Brass | - | - | - | - | |
|
|
19000007123CABLE GLAND 14.5-18.01MM M25 |
3,785 |
|
Datasheet | Cable Gland | 0.571" (14.50mm) | 0.709" (18.01mm) | M25 | - | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
19000007124CABLE GLAND 16-20.5MM M32 BRASS |
2,940 |
|
Datasheet | Cable Gland | 0.630" (16.00mm) | 0.807" (20.50mm) | M32 | - | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
19000007125CABLE GLAND 20.5-25MM M32 BRASS |
3,691 |
|
Datasheet | Cable Gland | 0.807" (20.50mm) | 0.984" (25.00mm) | M32 | - | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

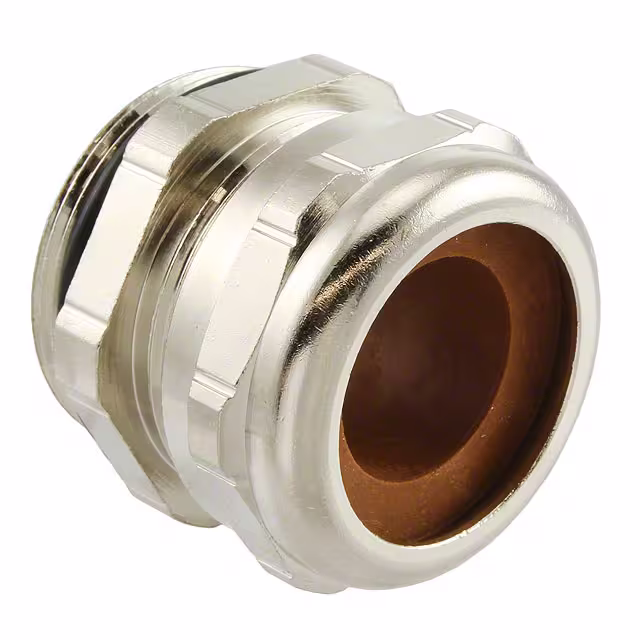

09620005009CABLE GLAND 17-20.5MM PG29 METAL |
1,988 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 0.807" (20.50mm) | PG29 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
19440005084CABLE GLAND 13-21MM M32 S STEEL |
3,934 |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 0.827" (21.00mm) | M32 | - | - | - | Stainless Steel | Clamping Ring | - | - | - | |
|
|
19000007127CABLE GLAND 26.5-32MM M40 BRASS |
2,854 |
|
Datasheet | Cable Gland | 1.043" (26.50mm) | 1.260" (32.00mm) | M40 | - | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
09370005102CABLE GLAND 9-14MM PG13.5 METAL |
1,556 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.551" (14.00mm) | PG13.5 | - | - | - | Metal | - | Silver | - | - | |
|
19000005181CABLE GLAND 5-9MM M20 POLYAMIDE |
2,532 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

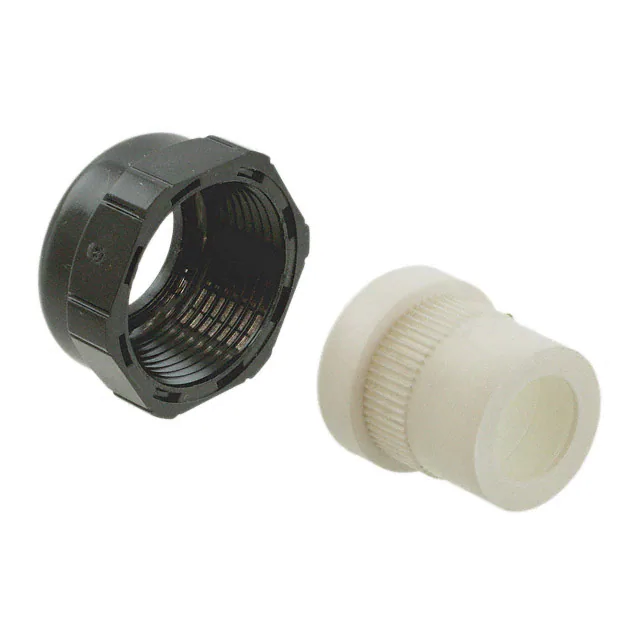

09000005059CABLE GLAND 11.5-15.5MM PG16 |
3,653 |
|
Datasheet | Cable Gland | 0.453" (11.50mm) | 0.610" (15.50mm) | PG16 | - | - | - | Thermoplastic | - | - | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C |
