Bipolar Transistor Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STA302ATRANS 3PNP DARL 50V 4A 8-SIP |
3,673 |
|
Datasheet | - | 8-SIP | Tube | Active | 3 PNP Darlington (Emitter Coupled) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|

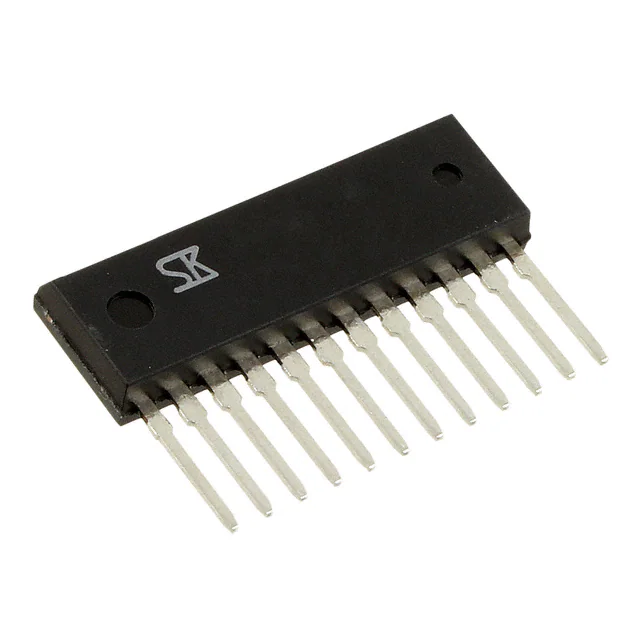

SMA4030TRANS 4NPN DARL 100V 3A 12-SIP |
2,742 |
|
Datasheet | - | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
STA408ATRANS 4PNP DARL 120V 4A 10-SIP |
2,399 |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 4A | 120V | 1.5V @ 4mA, 2A | 100µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA404ATRANS 4NPN DARL 200V 3A 10-SIP |
791 |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 200V | 2V @ 1.5mA, 1A | 100µA (ICBO) | 1000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SMA6010TRANS 3NPN/3PNP DARL 60V 12SIP |
229 |
|
Datasheet | - | 12-SIP | Tube | Active | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 100µA (ICBO) | 2000 @ 3A, 4V | 4W | 75MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA402ATRANS 4PNP DARL 50V 4A 10-SIP |
453 |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 PNP Darlington (Quad) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6024TRANS 3NPN/3PNP DARL 60V 12SIP |
646 |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 8A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SLA6023TRANS 3NPN/3PNP DARL 60V 12SIP |
78 |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 6A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 80MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

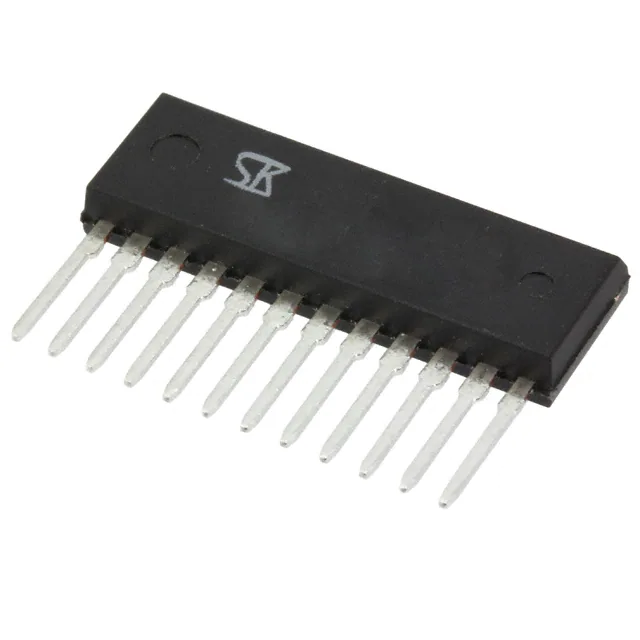

SMA4032TRANS 4NPN DARL 100V 3A 12-SIP |
1 |
|
Datasheet | - | 12-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA471ATRANS 4NPN DARL 60V 2A 10SIP |
9,837 |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 2A | 60V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
