Battery Holders, Clips, Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Battery Type, Function | Style | Battery Cell Size | Number of Cells | Battery Series | Mounting Type | Termination Style | Height Above Board | Operating Temperature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2485BATTERY HOLDER MULTIPLE PC PIN |
2,280 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | Multiple | 1 | - | PCB, Through Hole | PC Pin | - | 0.602" (15.29mm) | - |
|
967BATTERY CONNECTOR SNAP 9V PC PIN |
2,593 |
|
Datasheet | - | Bulk | Active | 9V, Snap Connector | Connector, Snap | 9V | 1 | - | PCB, Through Hole | PC Pin | - | - | - |
|
1053BATT HOLDER COIN 24.5MM PC PIN |
3,160 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 24.5mm | 1 | 2450 | PCB, Through Hole | PC Pin | - | 0.374" (9.50mm) | -50°C ~ 145°C |
|
BC2AAPCBATTERY HOLDER AA 2 CELL PC PIN |
59,469 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | AA | 2 | - | PCB, Through Hole | PC Pin | - | 0.591" (15.01mm) | -10°C ~ 100°C |
|
BH401BATTERY HOLDER COIN 10MM PC PIN |
3,188 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 10.0mm | 1 | 1025 | PCB, Through Hole | PC Pin | - | 0.271" (6.88mm) | - |
|
1056BATTERY HOLDER COIN 12.5MM SMD |
102,822 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 12.5mm | 1 | 1220 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.157" (4.00mm) | - |
|
103BATTERY HOLDER COIN 20MM PC PIN |
15,009 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 1 | 2016, 2020, 2025, 2032 | PCB, Through Hole | PC Pin | - | 0.235" (5.97mm) | -50°C ~ 145°C |
|
504TRBATTERY HOLDER COIN 16MM SMD |
14,349 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 16.0mm | 1 | 1632 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.212" (5.38mm) | - |
|
BC2AAAWBATT HOLDER AAA 2 CELL 6" LEADS |
11,369 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | AAA | 2 | - | Chassis Mount | Wire Leads - 6" (152.4mm) | - | - | -10°C ~ 100°C |
|
BHSD-1225-SMBATTERY HOLDER COIN 12MM SMD |
6,689 |
|
Datasheet | Snap Dragon | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open, Cover Required) | Coin, 12.0mm | 1 | 1225 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.190" (4.83mm) | -40°C ~ 280°C |
|
1060TRBATTERY HOLDER COIN 20MM SMD |
6,051 |
|
Datasheet | Vibra-Fit | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 1 | 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.217" (5.50mm) | -50°C ~ 145°C |
|
|
1060BATTERY HOLDER COIN 20MM SMD |
2,612 |
|
Datasheet | Vibra-Fit | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 1 | 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.217" (5.50mm) | -50°C ~ 145°C |
|
104BATTERY HOLDER COIN 23MM PC PIN |
4,646 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 23.0mm | 1 | 2320, 2325, 2330, 2335 | PCB, Through Hole | PC Pin | - | 0.235" (5.97mm) | -50°C ~ 145°C |
|
BH600-5.8BATTERY HOLDER COIN 16MM PC PIN |
60,734 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 16.0mm | 1 | 625, F5 iButton®, V80H | PCB, Through Hole | PC Pin | - | 0.460" (11.68mm) | -55°C ~ 180°C |
|
S8421-45RBATTERY HOLDER COIN 20MM SMD |
8,700 |
|
Datasheet | S8421R | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 1 | 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.209" (5.30mm) | -40°C ~ 105°C |
|
BH1000GBATT HOLDER COIN 24.5MM PC PIN |
596 |
|
Datasheet | - | Bulk | Active | Coin Cell, Holder | Holder (Open) | Coin, 24.5mm | 1 | 2477 | PCB, Through Hole | PC Pin | - | 0.496" (12.60mm) | -55°C ~ 180°C |
|
S8411-45RBATTERY HOLDER COIN 12MM SMD |
3,609 |
|
Datasheet | S8411R | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 12.0mm | 1 | 1220 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.167" (4.25mm) | -55°C ~ 105°C |
|

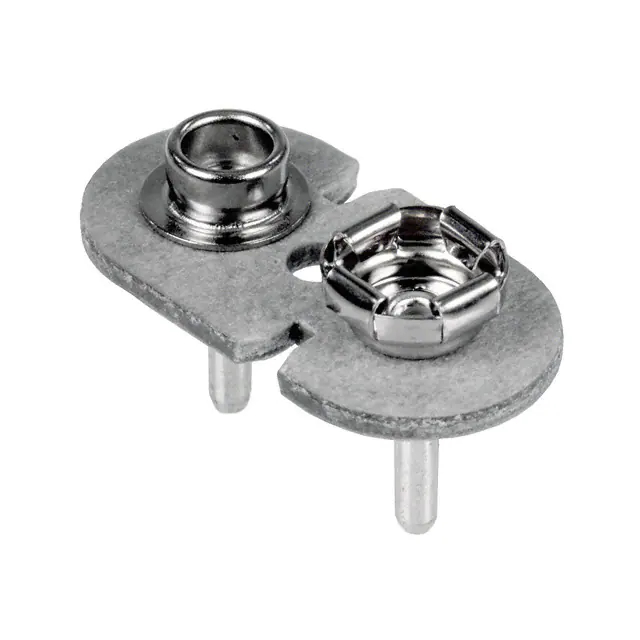

968BATTERY CONNECTOR SNAP 9V PC PIN |
1,717 |
|
Datasheet | - | Bulk | Active | 9V, Snap Connector | Connector, Snap | 9V | 1 | - | PCB, Through Hole | PC Pin | - | - | - |
|
BHSD-2032-SMBATTERY HOLDER COIN 20MM SMD |
6,688 |
|
Datasheet | Snap Dragon | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open, Cover Required) | Coin, 20.0mm | 1 | 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.187" (4.75mm) | -40°C ~ 280°C |
|
BU2450SM-JJ-GTRBATTERY HOLDER COIN 24.5MM SMD |
25,178 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 24.5mm | 1 | 2450 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.276" (7.01mm) | -40°C ~ 315°C |
