Battery Holders, Clips, Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Battery Type, Function | Style | Battery Cell Size | Number of Cells | Battery Series | Mounting Type | Termination Style | Height Above Board | Operating Temperature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1082TRBATT HLDR COIN 20MM 2/3 CELL SMD |
842 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 2, 3 | 2012 (3), 2016 (3), 2020 (2), 2025 (2), 2032 (2) | PCB, Surface Mount | SMD (SMT) Tab | - | 0.406" (10.30mm) | -50°C ~ 145°C |
|
CAB72A3-02W-2XBATTERY HOLDER AAA 2 CELL LEADS |
170 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Covered) | AAA | 2 | - | Chassis Mount | Wire Leads | IP65 - Dust Tight, Water Resistant | 0.453" (11.50mm) | -20°C ~ 85°C |
|
LS-00031BATTERY HOLDER AA 2 CELL LEADS |
133 |
|
Datasheet | - | Retail Package | Active | Cylindrical, Holder | Holder (Open) | AA | 2 | - | Chassis Mount | Wire Leads | - | 1.000" (25.40mm) | - |
|

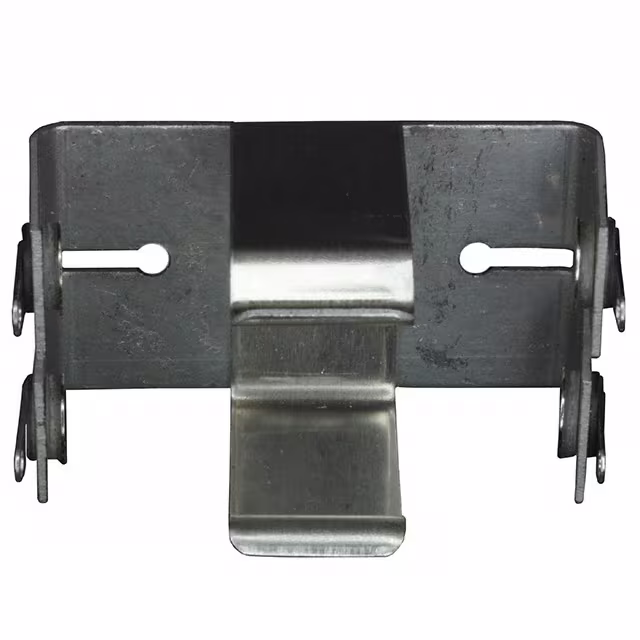

178BATT HLD 22 1/2V 2 CELL SLD |
941 |
|
Datasheet | - | Bulk | Active | 22 1/2V, Holder | Holder (Open) | 22 1/2V | 2 | - | Chassis Mount | Solder Lug | - | - | - |
|

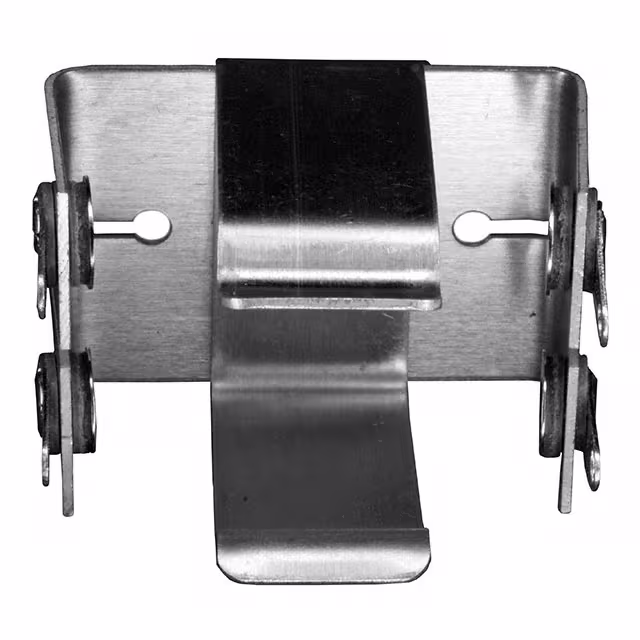

167BATT HLDR 15V 2 CELL SOLDER LUG |
307 |
|
Datasheet | - | Bulk | Active | 15V, Holder | Holder (Open) | 15V | 2 | - | Chassis Mount | Solder Lug | - | - | - |
|
CAB75A2-03W-1XBATTERY HOLDER AA 3 CELL LEADS |
158 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Covered) | AA | 3 | - | Chassis Mount | Wire Leads | IP65 - Dust Tight, Water Resistant | 0.453" (11.50mm) | -20°C ~ 85°C |
|
1195BATT HOLDER C 3 CELL SOLDER LUG |
158 |
|
Datasheet | 1100 | Bulk | Active | Cylindrical, Holder | Holder (Open) | C | 3 | - | Chassis Mount | Solder Lug | - | - | - |
|
|
0097048803BATTERY CONTACT SOLID SMD |
2,222 |
|
- |
- | Bag | Active | Coin Cell, Contact | Contact Solid (Negative) | - | 1 | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.050" (1.28mm) | - |
|
1100BATTERY HOLDER 2/3A 2 CELL SMD |
207 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | 2/3A | 2 | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.600" (15.24mm) | -50°C ~ 145°C |
|
1198BATT HOLDER C 4 CELL SOLDER LUG |
476 |
|
Datasheet | 1100 | Bulk | Active | Cylindrical, Holder | Holder (Open) | C | 4 | - | Chassis Mount | Solder Lug | - | - | - |
|
161BATTERY HOLDER 15V SOLDER LUG |
163 |
|
Datasheet | - | Bulk | Active | 15V, Holder | Holder (Open) | 15V | 1 | - | Chassis Mount | Solder Lug | - | - | - |
|
2225BATTERY HOLDER C 2 CELL PC PIN |
121 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | C | 2 | - | PCB, Through Hole | PC Pin | - | - | - |
|
|
EM733403BATTERY HOLDER 2 CELL 9V SNAP |
443 |
|
- |
- | Tape & Box (TB) | Active | Cylindrical, Holder | Holder (Open) | - | 2 | - | Chassis Mount | 9V Snap Connector | - | 0.551" (14.00mm) | - |
|
|
EM733409BATTERY HOLDER 4 CELL 9V SNAP |
437 |
|
- |
- | Tape & Box (TB) | Active | Cylindrical, Holder | Holder (Open) | - | 4 | - | PCB, Surface Mount | 9V Snap Connector | - | 0.630" (16.00mm) | - |
|
BAT-HLD-012-SMT-TRBATTERY RETAINER COIN 12MM SMD |
1,833 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Retainer | Retainer | Coin, 12.0mm | 1 | 1216, 1225 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.140" (3.55mm) | - |
|
292BATT CONTACT SOLID MULTI 2 CELL |
244 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Dual) | Contact Solid (Positive) | AA | 2 | - | Custom | - | - | - | - |
|
3000BATTERY RETAINER COIN 12MM SMD |
3,921 |
|
Datasheet | - | Bulk | Active | Coin Cell, Retainer | Retainer | Coin, 12.0mm | 1 | 1216, 1220, 1225 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.125" (3.17mm) | - |
|
1012BATTERY HOLDER AA 2 CELL SMD |
4,044 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder (Open) | AA | 2 | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.585" (14.86mm) | -50°C ~ 145°C |
|
2983BATTERY CONTACT SPRING SMD |
708 |
|
Datasheet | - | Bulk | Active | Coin Cell, Contact | Contact Spring (Leaf) | - | - | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.105" (2.67mm) | - |
|
BAT-HLD-005-THMBATT RETAINER COIN 20MM PC PIN |
756 |
|
Datasheet | - | Bag | Active | Coin Cell, Retainer | Retainer | Coin, 20.0mm | 1 | 2016, 2020, 2025, 2032 | PCB, Through Hole | PC Pin | - | - | - |
