Battery Holders, Clips, Contacts
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Battery Type, Function | Style | Battery Cell Size | Number of Cells | Battery Series | Mounting Type | Termination Style | Height Above Board | Operating Temperature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
293BATT CONTACT SPRING MULTI 2 CELL |
48,588 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Dual) | Contact Spring and Solid Button | A, AA | 2 | - | Custom | - | - | - | - |
|
5206BATTERY CONTACT SPRING AA 2 CELL |
17,670 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Dual) | Contact Spring (Leaf) | AA | 2 | - | Custom | - | - | - | - |
|
ABG-96 NEGBATT COIN CELL 20-30MM PC PIN |
5,558 |
|
Datasheet | - | Bulk | Active | Coin Cell, Contact | - | - | - | - | PCB, Through Hole | PC Pin | - | 0.146" (3.70mm) | - |
|

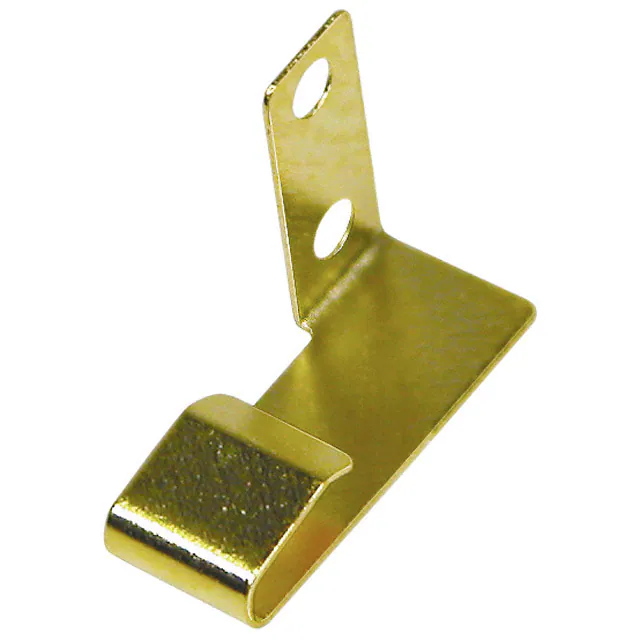

BK-6112BATTERY CONTACT SPRING AAAA SMD |
3,625 |
|
Datasheet | - | Tray | Active | Cylindrical, Contact (Single) | Contact Spring (Leaf) | AAAA | 1 | - | PCB, Surface Mount | SMD (SMT) Tab | - | - | - |
|
SN-T5-4BATT CONT SPR AA 2 CELL PC PIN |
2,530 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Dual) | Contact Spring and Solid Button | AA | 2 | - | PCB, Through Hole | PC Pin | - | 0.512" (13.00mm) | - |
|
SN-T5-3BATT CONT SPR AA 2 CELL PC PIN |
1,022 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Dual) | Contact Spring and Solid Button | AA | 2 | - | PCB, Through Hole | PC Pin | - | - | - |
|
1020-1BATT CONTACT SPRING MULTIPLE SMD |
36,464 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Single) | Contact Spring (Leaf) | Multiple | 1 | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.434" (11.02mm) | -50°C ~ 145°C |
|
90BATTERY HOLDER CLIP AAA |
2,857 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder Clip (No Contacts) | AAA | 1 | - | Chassis Mount | - | - | - | - |
|
BH-123A-1BATTERY HOLDER COIN 20MM PC PIN |
5,885 |
|
Datasheet | - | Tray | Active | Coin Cell, Holder | Holder (Open) | Coin, 20.0mm | 1 | 2032 | PCB, Through Hole | PC Pin | - | 0.299" (7.60mm) | -55°C ~ 105°C |
|
BH-44C-5BATTERY HOLDER COIN 12MM SMD |
1,067 |
|
Datasheet | - | Tray | Active | Coin Cell, Holder | Holder (Open) | Coin, 12.0mm | 1 | 1220 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.157" (3.99mm) | -25°C ~ 85°C |
|
5251BATT CONTACT SPRING D SOLDER LUG |
49,033 |
|
Datasheet | - | Bulk | Active | Cylindrical, Contact (Single) | Contact Spring (Coil) | D | - | - | Custom | Solder Lug | - | - | - |
|
91BATTERY HOLDER CLIP AA |
20,797 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder Clip (No Contacts) | AA | 1 | - | Chassis Mount | - | - | - | - |
|
2993TRBATTERY CONTACT SPRING SMD |
3,036 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Contact | Contact Spring (Leaf) | - | - | - | PCB, Surface Mount | SMD (SMT) Tab | - | 0.105" (2.67mm) | - |
|
BAT-HLD-003-SMT-TRBATTERY RETAINER COIN 20MM SMD |
1,685 |
|
Datasheet | - | Tape & Reel (TR) | Active | Coin Cell, Retainer | Retainer | Coin, 20.0mm | 1 | 2016, 2020, 2025, 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.154" (3.90mm) | - |
|
86BATT CONTACT CLIP C SOLDER LUG |
59,932 |
|
Datasheet | - | Bulk | Active | Cylindrical, Clip | Contact Clip | C | 1 | - | Chassis Mount | Solder Lug | - | - | - |
|
2898BATTERY RETAINER COIN 20MM SMD |
11,530 |
|
Datasheet | - | Bulk | Active | Coin Cell, Retainer | Retainer | Coin, 20.0mm | 1 | 2032 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.171" (4.34mm) | - |
|

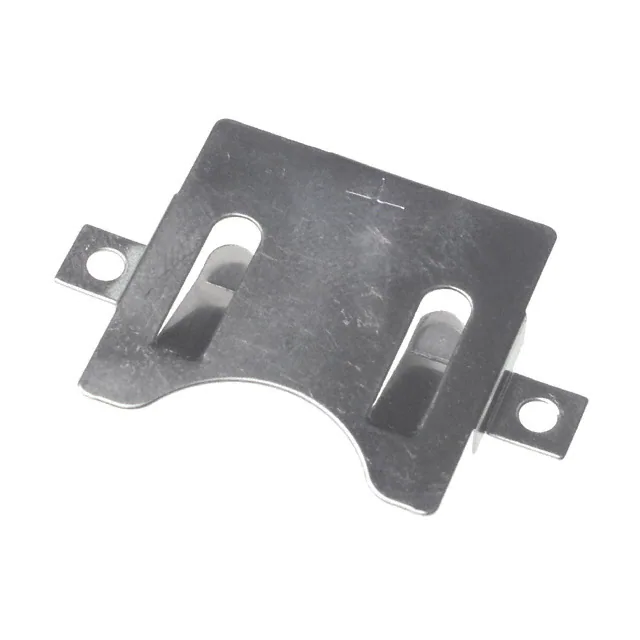

3004BATTERY RETAINER COIN 23MM SMD |
3,679 |
|
Datasheet | - | Bulk | Active | Coin Cell, Retainer | Retainer | Coin, 23.0mm | 1 | 2320, 2325, 2330 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.156" (3.96mm) | - |
|
3030BATTERY RETAINER COIN 10MM SMD |
3,581 |
|
Datasheet | - | Bulk | Active | Coin Cell, Retainer | Retainer | Coin, 10.0mm | 1 | 1025 | PCB, Surface Mount | SMD (SMT) Tab | - | 0.116" (2.95mm) | - |
|
|
69BATTERY HOLDER CLIP AA 2 CELL |
1,121 |
|
Datasheet | - | Bulk | Active | Cylindrical, Holder | Holder Clip (No Contacts) | AA | 2 | - | Chassis Mount | - | - | - | - |
|
BK-5033BATT RETAINER COIN 24.5MM PC PIN |
162,822 |
|
Datasheet | - | Bulk | Active | Coin Cell, Retainer | Retainer | Coin, 24.5mm | 1 | 2450 | PCB, Through Hole | PC Pin | - | 0.260" (6.60mm) | - |
