Automotive Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1904056-2V23134A0007X936-EV-441 |
3,118 |
|
- |
V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
3-1904131-0RELAY V23134-B4052-X546 |
1,852 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | 12VDC | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|
|
8-1904049-6V23134A0007X933-EV-850 |
3,981 |
|
Datasheet | V23134, AXICOM | Bulk | Active | Non Latching | - | - | - | - | 12VDC - Nom | - | - | 7 ms | 2 ms | - | - | - | -40°C ~ 125°C |
|

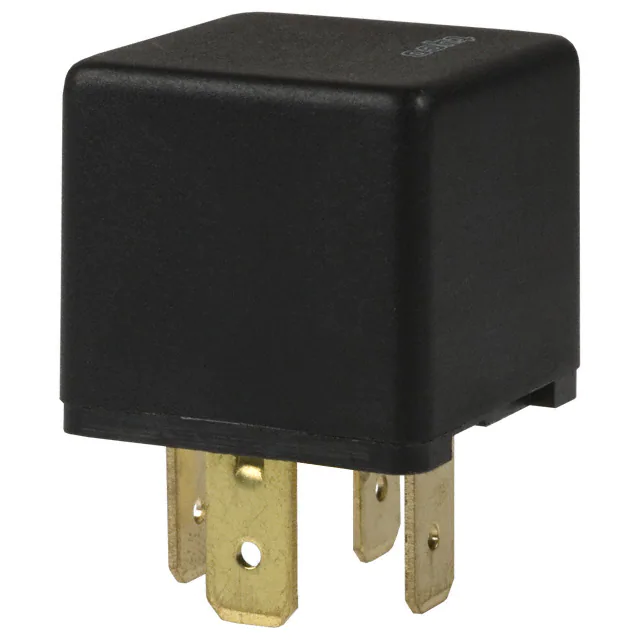

V23134-A3052-X540RELAY GEN PURPOSE SPDT 40A 12V |
2,185 |
|
Datasheet | VF4 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1904002-2RELAY AUTO SPST-NO 50A 24V |
1,980 |
|
Datasheet | HCR 75 | Bulk | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 50 A | 24VDC - Nom | 19 VDC | 1 VDC | - | - | - | Chassis Mount | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1904001-4RELAY AUTO SPST-NO 30A 24V |
2,344 |
|
Datasheet | HCR 75 | Bulk | Obsolete | Non Latching | - | 24VDC | SPST-NO (1 Form A) | 30 A | 24VDC - Nom | 19 VDC | 1 VDC | 7 ms | 2 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
1904001-2RELAY AUTO SPST-NO 75A 12V |
4,784 |
|
- |
HCR 75 | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 75 A | 12VDC - Nom | 8 VDC | 4 VDC | 10 ms | 15 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 100°C |
|
|
5-1415002-5V23132E2001B200 |
4,424 |
|
- |
- | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 17.2 VDC | 1.2 VDC | 25 ms | 8 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|
VFMA-15F41-S01RELAY AUTOMOTIVE SPDT 12V |
2,529 |
|
Datasheet | VFM | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 7.2 VDC | 1.2 VDC | - | - | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1-1904020-2V23234A0001X032-EV-144 |
2,778 |
|
Datasheet | - | Box | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
