Attenuators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Attenuation Value | Frequency Range | Power (Watts) | Impedance | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE7429-1515DB ATTN 2.92MM 0.5W 40GHZ |
1,510 |
|
Datasheet | 2.92mm In-Line Module | 2.92mm | Bulk | Active | 15dB | 0 Hz ~ 40 GHz | 500mW | - | - | - |
|
PE7389-3030 DB FIXED ATTENUATOR, N MALE T |
1,466 |
|
Datasheet | N-Type In-Line Module | - | Retail Package | Active | 10dB | 0 Hz ~ 3 GHz | 50W | 50 Ohms | - | - |
|
|
PE7389-4040 dB Fixed Attenuator, N Male t |
4,546 |
|
Datasheet | N-Type In-Line Module | - | Retail Package | Active | 30dB | 0 Hz ~ 3 GHz | 50W | 50 Ohms | - | - |
|
PE7AP1001-2020DB ATTN 4.3-10 15W 6GHZ |
3,529 |
|
Datasheet | Module | - | Bag | Active | 20dB | 0 Hz ~ 6 GHz | 15W | 50 Ohms | - | - |
|
|
PE7388-2020 dB Fixed Attenuator, N Male t |
4,725 |
|
Datasheet | N-Type In-Line Module | - | Retail Package | Active | 20dB | 0 Hz ~ 3 GHz | 50W | 50 Ohms | - | - |
|
PE7AP1001-66DB ATTN 4.3-10 15W 6GHZ |
1,128 |
|
Datasheet | Module | - | Bag | Active | 6dB | 0 Hz ~ 6 GHz | 15W | 50 Ohms | - | - |
|
|
PE7088-1010 dB Fixed Attenuator, 2.92mm M |
1,376 |
|
Datasheet | 2.92mm In-Line Module | - | Retail Package | Active | 10dB | 0 Hz ~ 40 GHz | 1W | 50 Ohms | - | - |
|

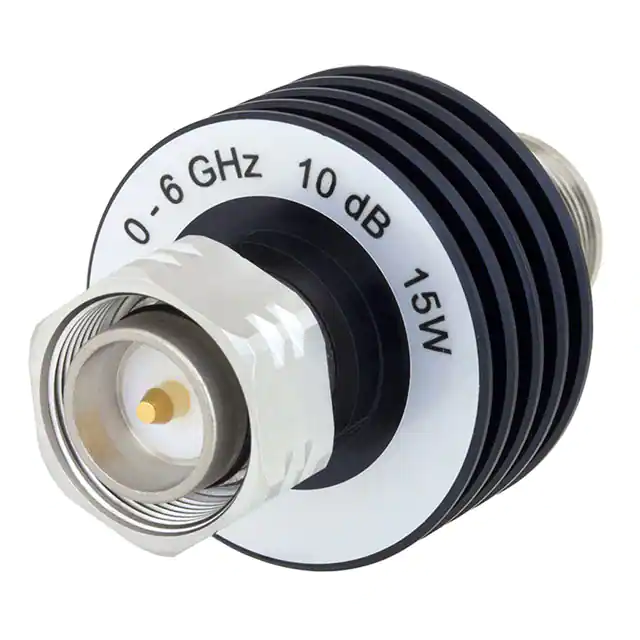

PE7AP1001-1010DB ATTN 4.3-10 15W 6GHZ |
1,107 |
|
Datasheet | Module | - | Bag | Active | 10dB | 0 Hz ~ 6 GHz | 15W | 50 Ohms | - | - |
|
|
PE7016-1010 dB Fixed Attenuator, SMA Male |
1,750 |
|
Datasheet | SMA In-Line Module | - | Retail Package | Active | 3dB | 0 Hz ~ 18 GHz | 10W | 50 Ohms | - | - |
|
|
PE7016-2020 dB Fixed Attenuator, SMA Male |
184 |
|
Datasheet | SMA In-Line Module | - | Retail Package | Active | 5dB | 0 Hz ~ 18 GHz | 10W | 50 Ohms | - | - |
