Attenuators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Attenuation Value | Frequency Range | Power (Watts) | Impedance | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

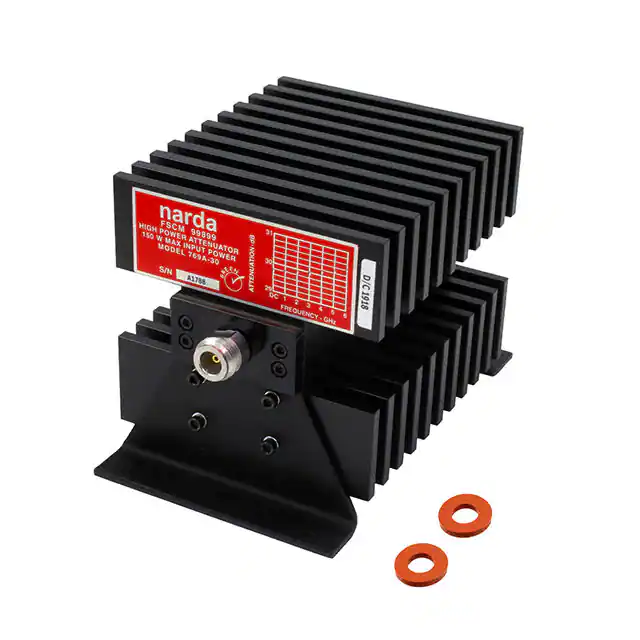

769A-30RF ATTENUATOR 30DB MODULE |
1,057 |
|
Datasheet | Module | 769A | Box | Active | 30dB | 0 Hz ~ 6 GHz | 150W | - | - | - |
|
770-30RF ATTENUATOR 30DB MODULE |
4,011 |
|
Datasheet | Module | 770 | Box | Active | 30dB | 0 Hz ~ 18 GHz | 100W | - | - | - |
|
770-40RF ATTENUATOR 40DB MODULE |
3,886 |
|
Datasheet | Module | 770 | Box | Active | 40dB | 0 Hz ~ 18 GHz | 100W | - | - | - |
|

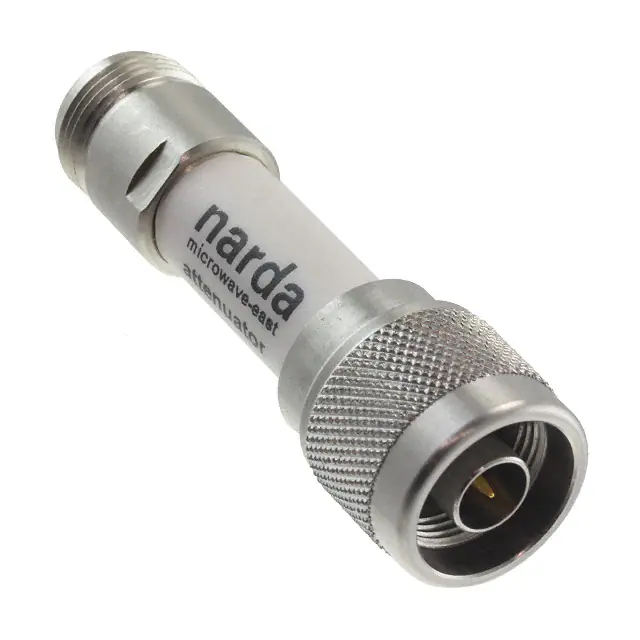

773-10RF ATTENUATOR 10DB NTYPE MODULE |
2,398 |
|
Datasheet | N-Type In-Line Module | - | Bulk | Active | 10dB | 0 Hz ~ 6 GHz | 2W | - | - | - |
|
776C-20RF ATTENUATOR 20DB NTYPE MODULE |
3,333 |
|
Datasheet | N-Type In-Line Module | 776C | Bulk | Active | 20dB | 0 Hz ~ 18 GHz | 50W | - | - | - |
|
779-20RF ATTENUATOR 20DB NTYPE MODULE |
4,470 |
|
Datasheet | N-Type In-Line Module | - | Bulk | Active | 20dB | 0 Hz ~ 18 GHz | 2W | - | - | - |
|

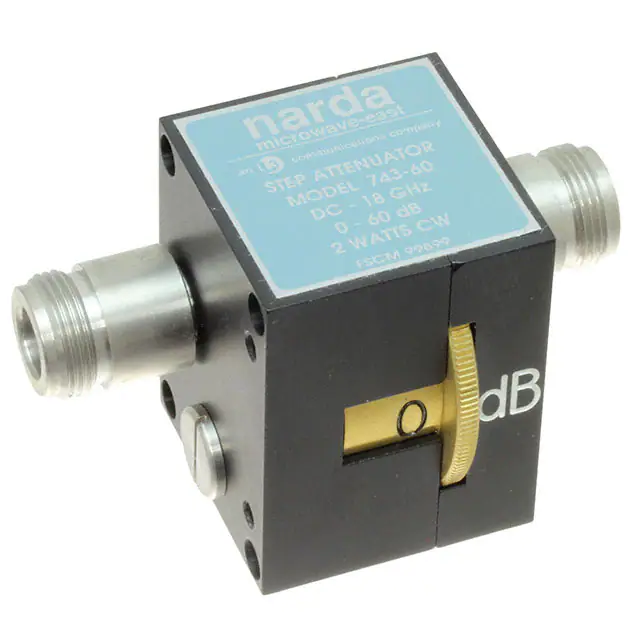

743-60RF ATTENUATOR 60DB 50OHM MODULE |
3,354 |
|
Datasheet | Module | - | Box | Active | 60dB | 0 Hz ~ 18 GHz | 2W | 50 Ohms | - | - |
|
745-69RF ATTENUATOR 69DB 50OHM MODULE |
2,358 |
|
Datasheet | Module | - | Box | Active | 69dB | 0 Hz ~ 18 GHz | 2W | 50 Ohms | - | - |
|
4796RF ATTENUATOR 15DB MODULE |
4,728 |
|
Datasheet | Module | - | Box | Active | 15dB | 7 GHz ~ 26.5 GHz | 5W | - | - | - |
|
779-40ATTENUATOR |
3,567 |
|
Datasheet | N-Type In-Line Module | - | Box | Active | 40dB | 0 Hz ~ 18 GHz | 2W | - | - | - |
