Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

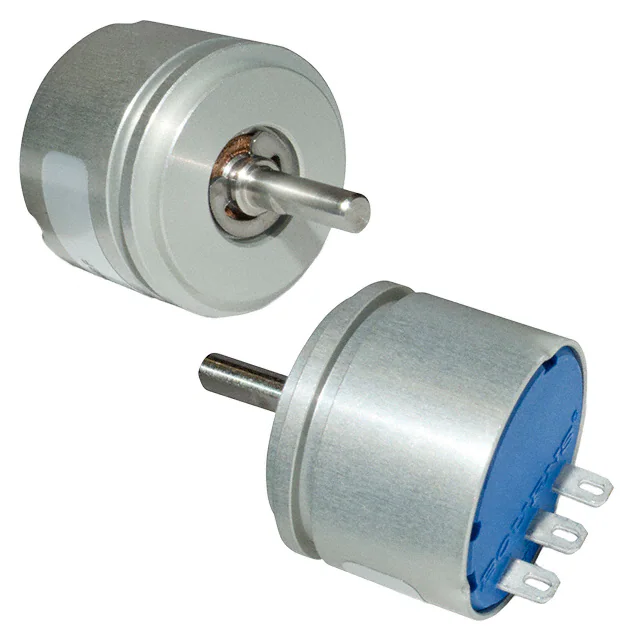

AMS22S5A1BHBFL336SENSOR ROTARY 360DEG SOLDER LUG |
3,671 |
|
Datasheet | Module, Flatted Shaft | AMS22S | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
1070819SENSOR LINEAR CBL W/CONN |
2,085 |
|
Datasheet | Module | MZT7 | Bulk | Active | - | Linear Position | GMR (Giant Magnetoresistive) | - | - | NPN | - | T-Slot | - | - | - | 10V ~ 30V | Chassis Mount | Cable with Connector | -30°C ~ 80°C (TA) | - | - | - |
|
PST360G2-1A-C0000-ERA360-RESENSOR ANGLE 360DEG WIRE LEADS |
4,343 |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 7V ~ 15V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
|
PST360G2-2AA-C0002-ERA360-05KSENSOR ANGLE 360DEG WIRE LEADS |
2,877 |
|
Datasheet | Box with Wire Leads | PST360G2 | Bulk | Active | - | Angle, Linear, Rotary | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | Hole for Shaft | ±1% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
9800-682-1SENSOR ROTARY 120 DEG CONNECTOR |
2,063 |
|
Datasheet | Box with Connector | 9800 | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 85°, 0° ~ 120° | - | Resistive | - | Hole for Shaft | ±2% | 5 kOhms | ±20% | - | Chassis Mount | Connector | -40°C ~ 135°C | - | - | - |
|
981HE2B1WA1F16SENSOR ROTARY 90DEG WIRE LEADS |
2,856 |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90° | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
93603603SENSOR ROTARY 360DEG CONNECTOR |
3,840 |
|
Datasheet | Box with Connector | 9360 | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage, PWM | Programmable | Shaft | - | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTP060LVEAASENSOR ROTARY 60DEG CONNECTOR |
3,312 |
|
Datasheet | Box with Connector | RTP | Bulk | Active | - | Rotary Position | Hall Effect | 60° (±30°) | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
SP-L-1000-203-1%-RLUSENSOR LINEAR 1000MM CONNECTOR |
3,723 |
|
Datasheet | Sensor Strip | SoftPot | Box | Active | - | Linear Position | Resistive | - | 0 ~ 1000.00mm (0 ~ 39.37") | Resistive | - | Flexible Membrane - Linear | ±1% | 20 kOhms | ±20% | - | Custom | Connector | -40°C ~ 50°C | - | - | - |
|
99600003MECHANICAL POSITION SENSOR, HIGH |
2,734 |
|
Datasheet | Cylinder, Threaded - M8 | 99600 | Bag | Active | - | Linear Position | - | - | - | NO | - | Pin | - | - | - | 30V | Panel Mount | Cable with Connector | -20°C ~ 105°C | - | - | - |
|
9960-090-C-5C-SWSENSOR ROTARY 90DEG CBL W/CONN |
4,680 |
|
Datasheet | Box with Connector | 9960 | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 90° | - | Analog Voltage | Programmable | Hole for Shaft | - | 10 kOhms | - | 5V | Chassis Mount | Cable with Connector | -40°C ~ 125°C | - | - | - |
|
|
A63-APS360-LACB1EANGLE POSITION SENSOR - BARREL, |
1,835 |
|
Datasheet | Barrel, Aluminum | - | Bulk | Active | - | Angle | - | 0° ~ 360° | - | Analog Voltage | Programmable | - | ±1% | - | - | 8V ~ 32V | Panel Mount | Cable with Connector | -40°C ~ 110°C | - | - | - |
|
SRBS-Q12-12-E270-EP-1-S-M8POSITION SENSOR |
2,416 |
|
Datasheet | Module | - | Bulk | Active | - | Angle | Hall Effect | 270° (±135°) | - | PNP/NPN-NO/NC | - | - | - | - | - | 10V ~ 30V | Chassis Mount | Cable with Connector | -20°C ~ 70°C (TA) | - | - | - |
|
V23401-T1079-B101RESOLVER |
1,360 |
|
Datasheet | Ring, Wire Leads | - | Box | Active | - | Angle | - | 0° ~ 20° | - | - | - | - | - | - | - | - | Custom | - | - | - | - | - |
|
|
93601803SENSOR ROTARY 180DEG CONNECTOR |
4,758 |
|
Datasheet | Box with Connector | 9360 | Tray | Active | - | Rotary Position | Hall Effect | 0° ~ 180° | - | Analog Voltage, PWM | Programmable | - | - | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
LRI-19-025-R-00-20-ASENSOR LINEAR 25.4MM CABLE |
1,760 |
|
Datasheet | Cylinder | LR-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 25.40mm (0 ~ 1.00") | 4mA ~ 20mA | - | Round Shaft | ±0.15% | - | - | - | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
|
LRE-19-025-R-00-10-ASENSOR LINEAR 25.4MM CABLE |
2,878 |
|
Datasheet | Cylinder | LR-19 | Tube | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 25.40mm (0 ~ 1.00") | 0 V ~ 10 V | - | Round Shaft | ±0.15% | - | - | 0V ~ 10V | Chassis Mount | Cable | -20°C ~ 85°C | - | - | - |
|
LZE-13-6.4-A-00-10-SLINEAR POSITION SENSOR 1/4" RANG |
2,142 |
|
Datasheet | Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 6.35mm (0 ~ 0.25") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
|
|
LZE-13-200-A-00-10-SLINEAR POSITION SENSOR 8" RANGE, |
1,864 |
|
Datasheet | Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 200.00mm (0 ~ 7.87") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
|
|
LZE-13-025-A-00-10-SLINEAR POSITION SENSOR 1" RANGE, |
1,529 |
|
Datasheet | Cylinder, Wire Leads | LZE-13 | Box | Active | - | Linear Position | LVIT (Linear Variable Inductance Transducer) | - | 0 ~ 25.00mm (0 ~ 0.98") | 0V ~ 10V | - | Round Shaft | ±0.15% | - | - | 12V ~ 30V | Chassis Mount | Cable | -20°C ~ 105°C | - | - | - |
