Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTY090LVNAXSENSOR ROTARY 90DEG CONNECTOR |
437 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY120LVEAXSENSOR ROTARY 120DEG CONNECTOR |
1,127 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 120° (±60°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY180LVNAXSENSOR ROTARY 180DEG CONNECTOR |
207 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 180° (±90°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
RTY090LVNAASENSOR ROTARY 90DEG CONNECTOR |
1,602 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY360LVNAXSENSOR ROTARY 360DEG CONNECTOR |
1,160 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY090HVNAXSENSOR ROTARY 90DEG CONNECTOR |
1,365 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|

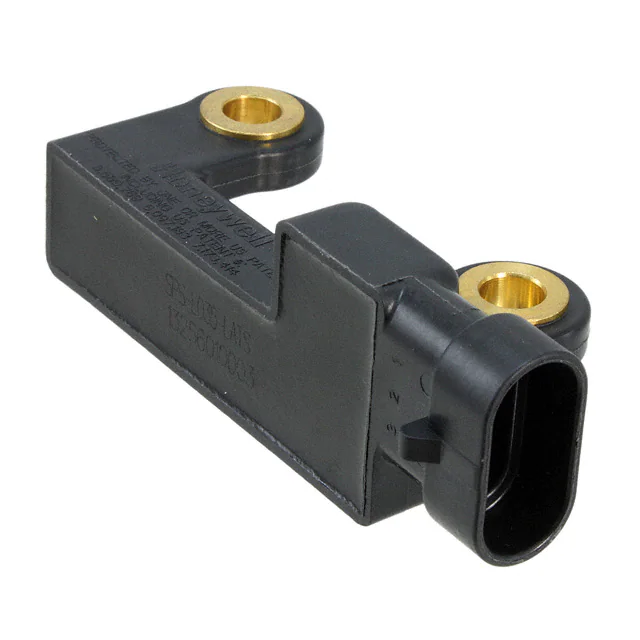

SPS-L035-LATSSENSOR LINEAR 35MM CONNECTOR |
3,140 |
|
Datasheet | Box with Connector | SPS | Bulk | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 35.00mm (0 ~ 1.38") | Analog Voltage | - | External Magnet, Included | ±1% | - | - | 4.75V ~ 5.25V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
SPS-L225-HALSSENSOR LINEAR 225MM WIRE LEAD |
283 |
|
Datasheet | Box with Wire Leads | SPS | Box | Active | - | Linear Position | Magnetoresistive | - | 0 ~ 225.00mm (0 ~ 8.86") | Analog Voltage | - | External Magnet, Included | ±0.4% | - | - | 6V ~ 24V | Chassis Mount | Wire Leads | -40°C ~ 125°C | - | - | - |
|
RTP090LVNAASENSOR ROTARY 90DEG CONNECTOR |
4,345 |
|
Datasheet | Box with Connector | RTP | Bulk | Active | - | Rotary Position | Hall Effect | 90° (±45°) | - | Analog Voltage | Clockwise Increase | External Magnet, Included | ±1% | - | - | 5V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
|
|
RTY360HVNAXSENSOR ROTARY 360DEG CONNECTOR |
2,490 |
|
Datasheet | Box with Connector | RTY | Bulk | Active | - | Rotary Position | Hall Effect | 360° (±180°), Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±1% | - | - | 10V ~ 30V | Chassis Mount | Connector | -40°C ~ 125°C | - | - | - |
