Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43504A9107M000CAP ALUM 100UF 20% 400V SNAP TH |
594 |
|
Datasheet | B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 880mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 100 Hz | - | 1.09 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

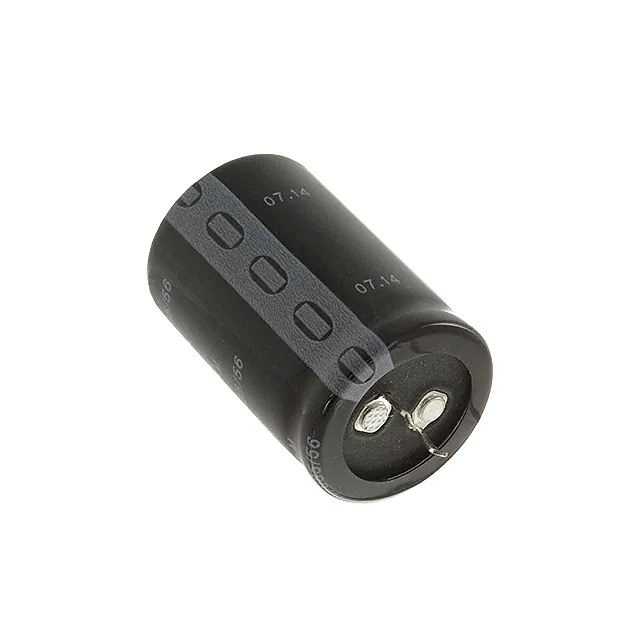

B41231A6109M000CAP ALUM 10000UF 20% 50V SNAP TH |
2,029 |
|
Datasheet | B41231 | Bulk | Active | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.07 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B41505A8338M000CAP ALUM 3300UF 20% 63V SNAP TH |
109 |
|
Datasheet | B41505 | Bulk | Not For New Designs | 3300 µF | ±20% | 63 V | 53mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | - | 56 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B41231A4479M000CAP ALUM 47000UF 20% 16V SNAP TH |
901 |
|
Datasheet | B41231 | Bulk | Active | 47000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.62 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

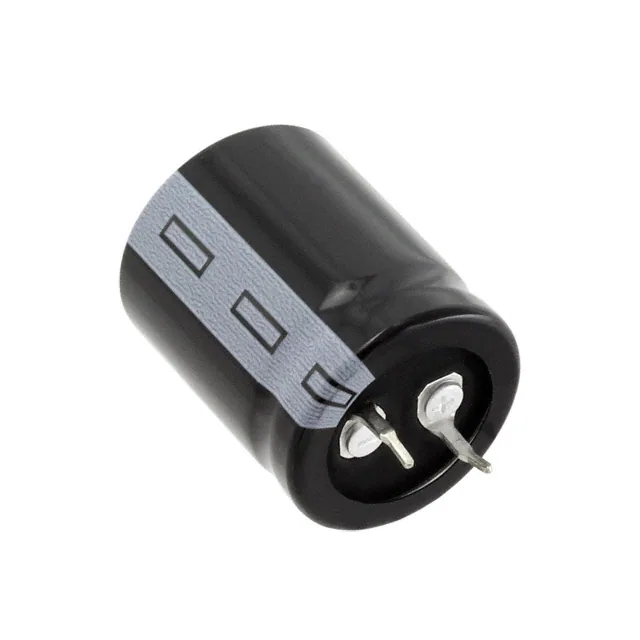

B43508B5157M000CAP ALUM 150UF 20% 450V SNAP TH |
222 |
|
Datasheet | B43508 | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | 820mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 100 Hz | - | 1.15 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43504B9107M000CAP ALUM 100UF 20% 400V SNAP TH |
847 |
|
Datasheet | B43504 | Bulk | Not For New Designs | 100 µF | ±20% | 400 V | 880mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 100 Hz | - | 1.09 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43644A2567M007CAP ALUM 560UF 20% 200V SNAP TH |
624 |
|
Datasheet | B43644 | Bulk | Active | 560 µF | ±20% | 200 V | 290mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41252A6109M000CAP ALUM 10000UF 20% 50V SNAP TH |
298 |
|
Datasheet | B41252 | Bulk | Active | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.42 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

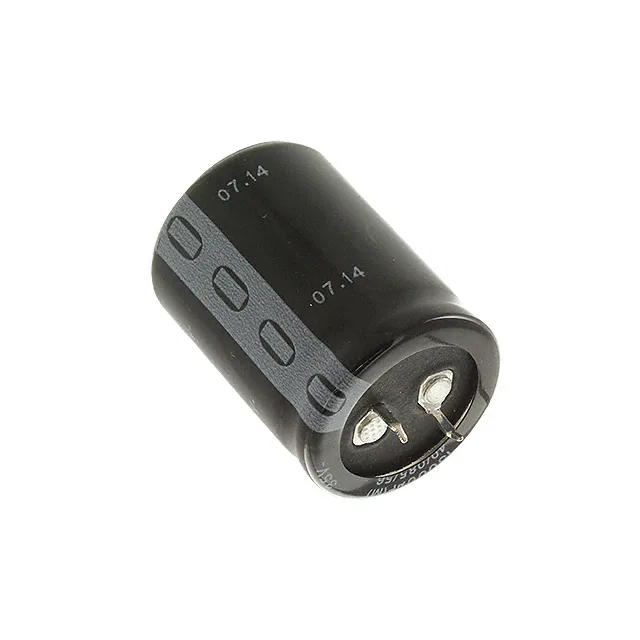

B41231B9338M000CAP ALUM 3300UF 20% 100V SNAP TH |
249 |
|
Datasheet | B41231 | Bulk | Active | 3300 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.72 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43501A9227M000CAP ALUM 220UF 20% 400V SNAP TH |
2,881 |
|
Datasheet | B43501 | Bulk | Not For New Designs | 220 µF | ±20% | 400 V | 300mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 490 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
