Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS431T300R2CCAP ALUM 430UF 300V SCREW CHAS M |
0 |
|
Datasheet | CGS | Bulk | Active | 430 µF | -10%, +50% | 300 V | 228mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
CG111T450R4CCAP ALUM 110UF 450V SCREW CHAS M |
0 |
|
Datasheet | CG | Bulk | Active | 110 µF | -10%, +50% | 450 V | 1.22Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.23 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
CGS112U150R2CCAP ALUM 1100UF 150V SCREW CHAS |
0 |
|
Datasheet | CGS | Bulk | Active | 1100 µF | -10%, +75% | 150 V | 102mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.16 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 2.125" (53.98mm) | - | Chassis Mount | |
|
|
CGS133U025R4CCAP ALUM 13000UF 25V SCREW CHAS |
0 |
|
Datasheet | CGS | Bulk | Active | 13000 µF | -10%, +75% | 25 V | 82mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 5.07 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|
|
CGS163U025R4CCAP ALUM 16000UF 25V SCREW CHAS |
0 |
|
Datasheet | CGS | Bulk | Active | 16000 µF | -10%, +75% | 25 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 11.05 A @ 10 kHz | - | - | 1.375" Dia (34.93mm) | 4.125" (104.78mm) | - | Chassis Mount | |
|

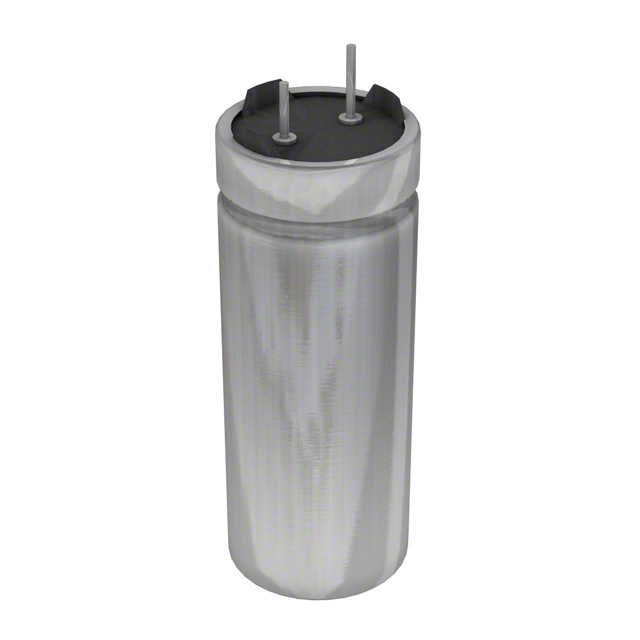

VPR222U040N2LCAP ALUM 2200UF 40V RADIAL TH |
0 |
|
Datasheet | VPR | Bulk | Active | 2200 µF | -10%, +75% | 40 V | 17mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 4.732 A @ 10 kHz | - | 0.402" (10.20mm) | 1.000" Dia (25.40mm) | 2.626" (66.70mm) | - | Through Hole | |
|
DCMC232T400BD2BCAP ALUM 2300UF 400V SCREW CHAS |
0 |
|
Datasheet | DCMC | Bulk | Active | 2300 µF | -10%, +50% | 400 V | 59.3mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 9.144 A @ 10 kHz | - | 0.875" (22.23mm) | 2.000" Dia (50.80mm) | 4.687" (119.05mm) | - | Chassis Mount | |
|

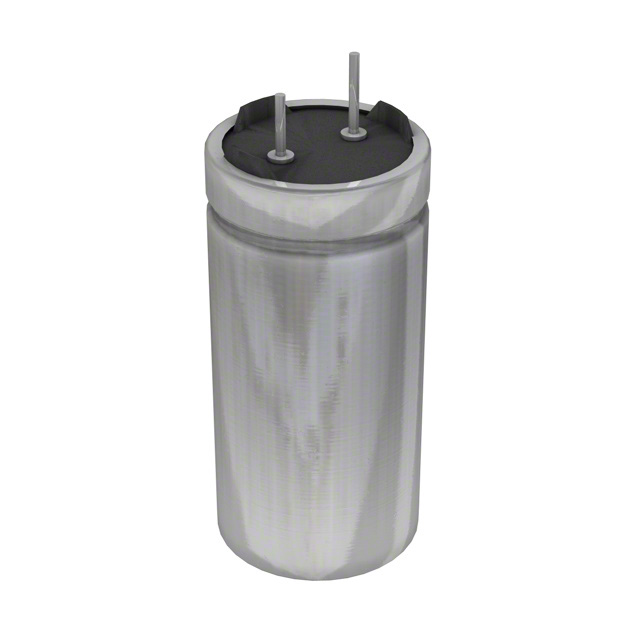

VPR681U075N2CCAP ALUM 680UF 75V RADIAL TH |
0 |
|
Datasheet | VPR | Bulk | Active | 680 µF | -10%, +75% | 75 V | 69mOhm @ 10kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 2.42 A @ 10 kHz | - | 0.402" (10.20mm) | 1.000" Dia (25.40mm) | 2.126" (54.00mm) | - | Through Hole | |
|
|
DCM273U015AB2BCAP ALUM 27000UF 15V SCREW CHAS |
0 |
|
Datasheet | DCM | Bulk | Active | 27000 µF | -10%, +75% | 15 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500" (12.70mm) | 1.375" Dia (34.93mm) | 3.187" (80.95mm) | - | Chassis Mount | |
|
THA232M040AA0CCAP ALUM 2300UF 20% 40V FLTPCK |
0 |
|
Datasheet | THA | Bulk | Active | 2300 µF | ±20% | 40 V | 120mOhm @ 120Hz | 5000 Hrs @ 85°C | -55°C ~ 85°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.04 A @ 20 kHz | - | 0.394" (10.00mm) | 1.433" L x 0.953" W (36.40mm x 24.20mm) | 0.335" (8.50mm) | - | Through Hole |
