Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-FK0J101PCAP ALUM 100UF 20% 6.3V SMD |
654 |
|
Datasheet | FK | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 240 mA @ 100 kHz | 360 mOhms | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ2A220MPDCAP ALUM 22UF 20% 100V RADIAL TH |
599 |
|
Datasheet | UPJ | Bulk | Not For New Designs | 22 µF | ±20% | 100 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 122 mA @ 120 Hz | 230 mA @ 10 kHz | 550 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UWZ1C221MCL1GSCAP ALUM 220UF 20% 16V SMD |
590 |
|
Datasheet | UWZ | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 105 mA @ 120 Hz | 157.5 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
250PX10MEFC10X12.5CAP ALUM 10UF 20% 250V RADIAL TH |
509 |
|
Datasheet | PX | Bulk | Active | 10 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 135 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|
ECE-A1EN470UICAP ALUM 47UF 20% 25V RADIAL TH |
295 |
|
Datasheet | SU | Cut Tape (CT) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.480" (12.20mm) | - | Through Hole | |
|
63YXF100MEFCT810X12.5CAP ALUM 100UF 20% 63V RADIAL TH |
104 |
|
Datasheet | YXF | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 63 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 210 mA @ 120 Hz | 300 mA @ 100 kHz | 430 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UKL1E470MEDANACAP ALUM 47UF 20% 25V RADIAL TH |
951 |
|
Datasheet | UKL | Bulk | Not For New Designs | 47 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 170 mA @ 120 Hz | 340 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.472" (12.00mm) | - | Through Hole | |
|
100YXG47MEFC10X12.5CAP ALUM 47UF 20% 100V RADIAL TH |
940 |
|
Datasheet | YXG | Bulk | Not For New Designs | 47 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 144 mA @ 120 Hz | 288 mA @ 100 kHz | 430 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

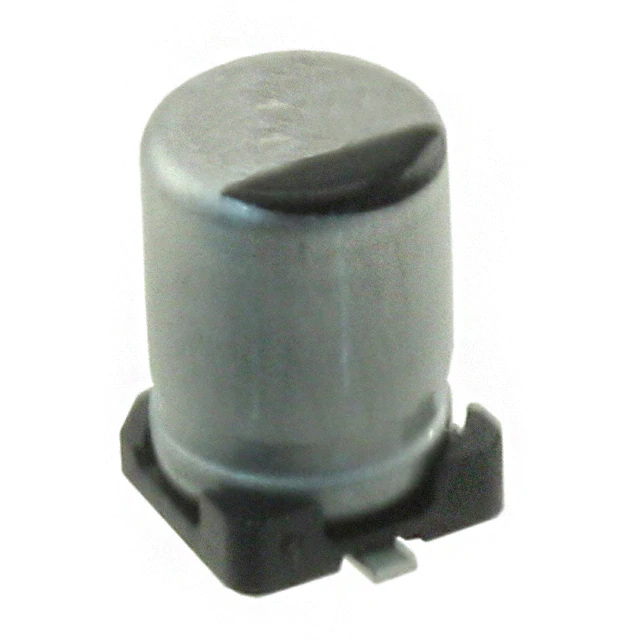

EEE-FT1A680ARCAP ALUM 68UF 20% 10V SMD |
895 |
|
Datasheet | FT | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | 850mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.240" (6.10mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
UUA1V100MCL1GSCAP ALUM 10UF 20% 35V SMD |
849 |
|
Datasheet | UUA | Tape & Reel (TR) | Active | 10 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 27 mA @ 120 Hz | 40.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
25ZLH470MEFCT810X12.5CAP ALUM 470UF 20% 25V RADIAL TH |
803 |
|
Datasheet | ZLH | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 731.5 mA @ 120 Hz | 1.33 A @ 100 kHz | 39 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
|
ECE-A0JN101UCAP ALUM 100UF 20% 6.3V RADIAL |
764 |
|
- |
SU | Bulk | Active | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 221 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.441" (11.20mm) | - | Through Hole | |
|
50ZLH120MEFC8X16CAP ALUM 120UF 20% 50V RADIAL TH |
665 |
|
Datasheet | ZLH | Bulk | Active | 120 µF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 475 mA @ 120 Hz | 950 mA @ 100 kHz | 61 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
25YXF470MEFCT810X16CAP ALUM 470UF 20% 25V RADIAL TH |
464 |
|
Datasheet | YXF | Cut Tape (CT) | Not For New Designs | 470 µF | ±20% | 25 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 577.5 mA @ 120 Hz | 770 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UPW2E2R2MPD1TDCAP ALUM 2.2UF 20% 250V RADIAL |
273 |
|
Datasheet | UPW | Cut Tape (CT) | Not For New Designs | 2.2 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 46.4 mA @ 10 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPJ1E221MPD6TDCAP ALUM 220UF 20% 25V RADIAL TH |
159 |
|
Datasheet | UPJ | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 435 mA @ 120 Hz | - | 210 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
UPW1E221MPDCAP ALUM 220UF 20% 25V RADIAL TH |
64 |
|
Datasheet | UPW | Bulk | Not For New Designs | 220 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 360.75 mA @ 120 Hz | - | 117 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole | |
|
EEU-FR1E821BCAP ALUM 820UF 20% 25V RADIAL TH |
1,576 |
|
Datasheet | FR-A | Cut Tape (CT) | Active | 820 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.635 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
35ML220MEFCT810X9CAP ALUM 220UF 20% 35V RADIAL TH |
1,514 |
|
Datasheet | ML | Cut Tape (CT) | Not For New Designs | 220 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 360 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole | |
|
865230653012CAP ALUM 47UF 20% 50V SMD |
1,391 |
|
Datasheet | WCAP-AS5H | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 142.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
