Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMW451VSN391MQ50SCAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet | KMW | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
|
EKMH101VSN222MQ50UCAP ALUM 2200UF 20% 100V SNAP TH |
4 |
|
Datasheet | KMH | Bulk | Active | 2200 µF | ±20% | 100 V | 113mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 3.036 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMW401VSN561MR40SCAP ALUM 560UF 20% 400V SNAP TH |
0 |
|
Datasheet | KMW | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|

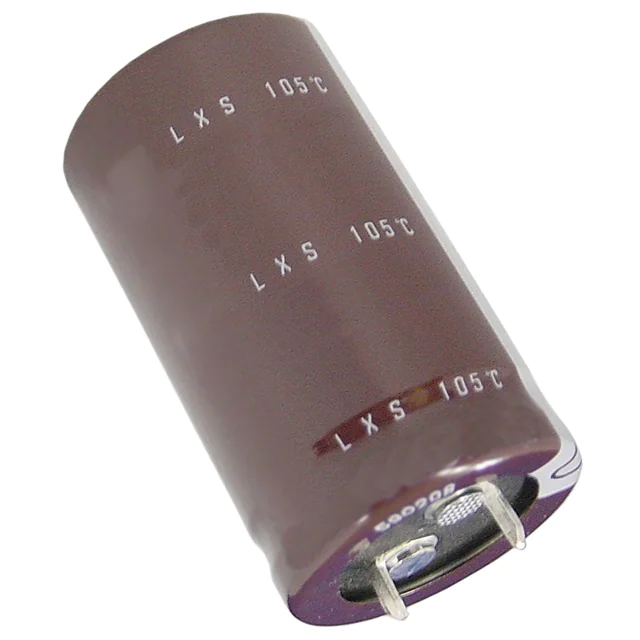

ELXS501VSN471MA60SCAP ALUM 470UF 20% 500V SNAP TH |
0 |
|
Datasheet | LXS | Bulk | Active | 470 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.9029 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.461" (62.50mm) | - | Through Hole | |
|
EKZM500ELL270ME11DCAP ALUM 27UF 20% 50V RADIAL TH |
0 |
|
Datasheet | KZM | Bulk | Active | 27 µF | ±20% | 50 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 95.2 mA @ 120 Hz | 238 mA @ 100 kHz | 340 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ESMG160ELL220ME11DCAP ALUM 22UF 20% 16V RADIAL TH |
0 |
|
Datasheet | SMG | Bulk | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 135 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
ELXZ6R3ELL331MFB5DCAP ALUM 330UF 20% 6.3V RADIAL |
0 |
|
Datasheet | LXZ | Bulk | Active | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 145 mA @ 120 Hz | 290 mA @ 100 kHz | 250 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.512" (13.00mm) | - | Through Hole | |
|
EKZE160ELL560ME11DCAP ALUM 56UF 20% 16V RADIAL TH |
0 |
|
Datasheet | KZE | Bulk | Active | 56 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 250 mA @ 100 kHz | 300 mOhms | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EMZA6R3ARA470ME61GCAP ALUM 47UF 20% 6.3V SMD |
0 |
|
Datasheet | Alchip™- MZA | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 64 mA @ 120 Hz | 160 mA @ 100 kHz | 700 mOhms | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
EKMQ350ELL470ME11DCAP ALUM 47UF 20% 35V RADIAL TH |
0 |
|
Datasheet | KMQ | Bulk | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 93 mA @ 120 Hz | 167.4 mA @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
