Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKXJ221ELL121MJ50SCAP ALUM 120UF 20% 220V RADIAL |
998 |
|
Datasheet | KXJ | Bulk | Active | 120 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 645 mA @ 120 Hz | 1.45125 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 2.028" (51.50mm) | - | Through Hole | |
|
EKMQ201ELL121MK25SCAP ALUM 120UF 20% 200V RADIAL |
994 |
|
Datasheet | KMQ | Bulk | Active | 120 µF | ±20% | 200 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
ELBG250ELL422AL25SCAP ALUM 4200UF 25V RADIAL TH |
994 |
|
Datasheet | LBG | Bulk | Active | 4200 µF | 0%, +30% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 120 Hz | 2.6 A @ 100 kHz | 33 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UPW1H102MHD1CVCAP ALUM 50V POLAR |
624 |
|
Datasheet | UPW | Bulk | Active | 1 mF | ±20% | 50 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.6763 A @ 120 Hz | 2.235 A @ 100 kHz | 34 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
EKMQ161ELL331MMP1SCAP ALUM 330UF 20% 160V RADIAL |
428 |
|
Datasheet | KMQ | Bulk | Active | 330 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 705 mA @ 120 Hz | 1.0575 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEU-TA1H331BCAP ALUM 330UF 20% 50V RADIAL TH |
350 |
|
Datasheet | TA | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 864.5 mA @ 120 Hz | 1.33 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
25RXA2200MEFC12.5X30CAP ALUM 2200UF 20% 25V RADIAL |
1,660 |
|
Datasheet | RXA | Bulk | Active | 2200 µF | ±20% | 25 V | 43mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.533 A @ 120 Hz | 2.19 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.260" (32.00mm) | - | Through Hole | |
|

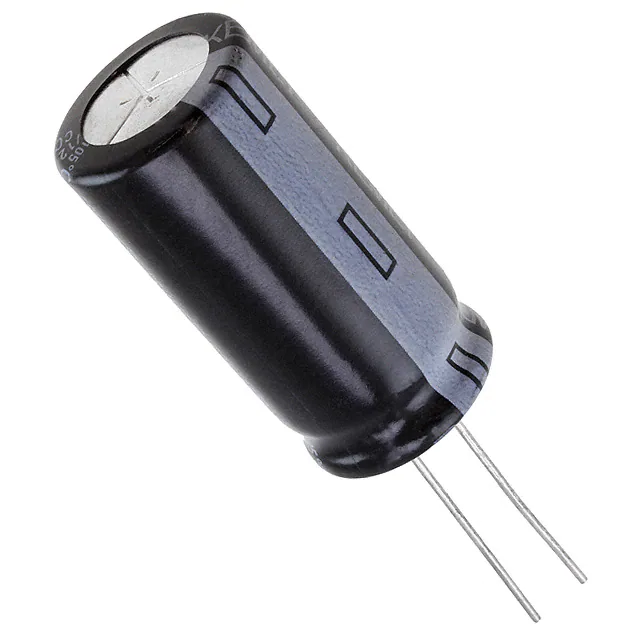

ESH228M050AN2AACAP ALUM 2200UF 20% 50V RADIAL |
1,500 |
|
Datasheet | ESH | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.7595 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
UYA2A900MNJ1MSCAP ALUM 90UF 20% 100V SMD |
1,195 |
|
Datasheet | UYA | Tape & Reel (TR) | Active | 90 µF | ±20% | 100 V | - | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 325 mA @ 120 Hz | 650 mA @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.492" (12.50mm) | 0.535" L x 0.535" W (13.60mm x 13.60mm) | Surface Mount | |
|
|
ELXZ250ELL332MM20SCAP ALUM 25V POLAR |
1,000 |
|
Datasheet | LXZ | Bulk | Active | 3.3 mF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.8675 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
|
EKYA350ELL392MLP1SCAP ALUM 3900UF 20% 35V RADIAL |
997 |
|
Datasheet | KYA | Bulk | Active | 3900 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7075 A @ 120 Hz | 3.61 A @ 100 kHz | 15 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
EKXJ221ELL181MK40SCAP ALUM 180UF 20% 220V RADIAL |
980 |
|
Datasheet | KXJ | Bulk | Active | 180 µF | ±20% | 220 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 975 mA @ 120 Hz | 2.19375 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
400WXA22MEFC16X20CAP ALUM 22UF 20% 400V RADIAL TH |
599 |
|
Datasheet | WXA | Bulk | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 187 mA @ 120 Hz | 280.5 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXV500ELL821MK40SCAP ALUM 820UF 20% 50V RADIAL TH |
500 |
|
Datasheet | LXV | Bulk | Active | 820 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.06 A @ 120 Hz | 2.12 A @ 100 kHz | 29 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
EMHB250ARA332MMN0SCAP ALUM 3.3MF 20% 25V SMD |
200 |
|
Datasheet | MHB | Tape & Reel (TR) | Active | 3.3 mF | ±20% | 25 V | 32mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.8675 A @ 120 Hz | 2.49 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
EKHE421ELL470MJ40SCAP ALUM 47UF 20% 420V RADIAL TH |
2,000 |
|
Datasheet | KHE | Bulk | Active | 47 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 445 mA @ 120 Hz | 801 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
EKXJ451ELL680MLP1SCAP ALUM 68UF 20% 450V RADIAL TH |
950 |
|
Datasheet | KXJ | Bulk | Active | 68 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 660 mA @ 120 Hz | 1.65 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EGXF351ELL470MU25SCAP ALUM 47UF 20% 350V RADIAL TH |
946 |
|
Datasheet | GXF | Bulk | Active | 47 µF | ±20% | 350 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 423.5 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EKZM350ELL272MM25SCAP ALUM 35V POLAR |
935 |
|
Datasheet | KZM | Bulk | Active | 2.7 mF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.738 A @ 120 Hz | 3.65 A @ 100 kHz | 12 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
EGXF800ELL561MK35SCAP ALUM 560UF 20% 80V RADIAL TH |
899 |
|
Datasheet | GXF | Bulk | Active | 560 µF | ±20% | 80 V | 44mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.38 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.437" (36.50mm) | - | Through Hole |
