Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50RXA1800MEFC18X25CAP ALUM 1.8MF 20% 50V RADIAL TH |
470 |
|
Datasheet | RXA | Bulk | Active | 1.8 mF | ±20% | 50 V | 34mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.494 A @ 120 Hz | 2.49 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
160PX330MEFC18X31.5CAP ALUM 330UF 20% 160V RADIAL |
200 |
|
Datasheet | PX | Bulk | Active | 330 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 684 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
200SXG220MEFCSN22X25CAP ALUM 220UF 20% 200V SNAP TH |
196 |
|
Datasheet | SXG | Bulk | Active | 220 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
25RXA5600MEFC18X31.5CAP ALUM 5.6MF 20% 25V RADIAL TH |
166 |
|
Datasheet | RXA | Bulk | Active | 5.6 mF | ±20% | 25 V | 28mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.037 A @ 120 Hz | 2.91 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

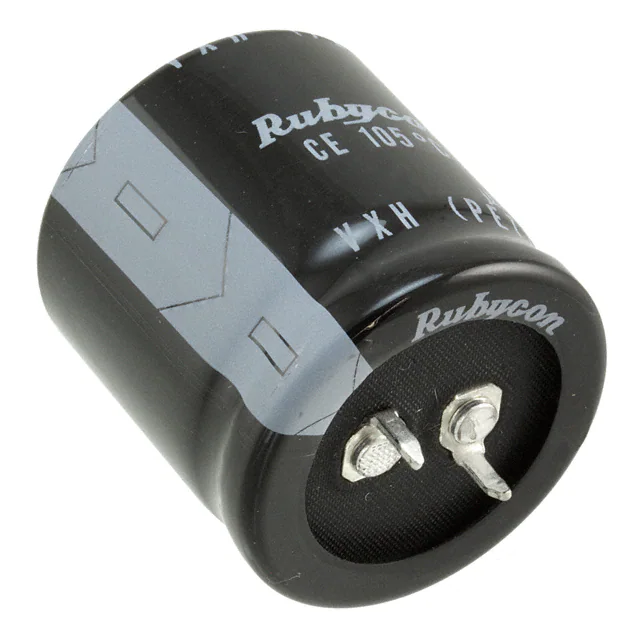

450VXH120MEFCSN25X25CAP ALUM 120UF 20% 450V SNAP TH |
200 |
|
Datasheet | VXH | Bulk | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.344 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
200PX330MEFC18X40CAP ALUM 330UF 20% 200V RADIAL |
200 |
|
Datasheet | PX | Bulk | Active | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 810 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
35RXA3900MEFC18X31.5CAP ALUM 3.9MF 20% 35V RADIAL TH |
194 |
|
Datasheet | RXA | Bulk | Active | 3.9 mF | ±20% | 35 V | 28mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.037 A @ 120 Hz | 2.91 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
420VXH150MEFCSN22X35CAP ALUM 150UF 20% 420V SNAP TH |
385 |
|
Datasheet | VXH | Bulk | Active | 150 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.568 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
160BXW820MEFR18X50CAP ALUM 160V POLAR |
242 |
|
Datasheet | BXW | Bulk | Active | 820 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 120 Hz | 4.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
420MXG100MEFCSN22X25CAP ALUM 100UF 20% 420V SNAP TH |
198 |
|
Datasheet | MXG | Bulk | Active | 100 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole |
