Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
50TRV1500M18X21.5CAP ALUM 1500UF 20% 50V SMD |
0 |
|
Datasheet | TRV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 120 Hz | 1.65 A @ 100 kHz | 72 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

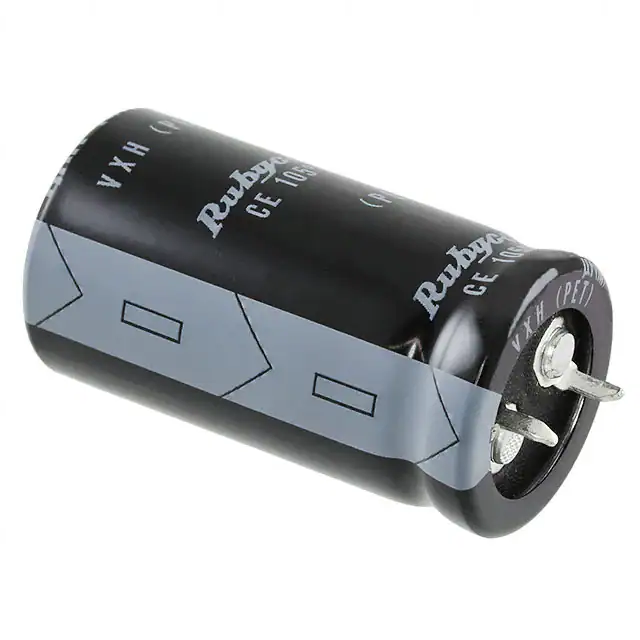

200VXH680MEFCSN22X40CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet | VXH | Bulk | Active | 680 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 3.33 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80USC4700MEFCSN25X45CAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet | USC | Bulk | Not For New Designs | 4700 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.28 A @ 120 Hz | 4.922 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450HXG220MEFCSN25X40CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet | HXG | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.758 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450HXW220MEFR18X45CAP ALUM 220UF 20% 450V RADIAL |
0 |
|
Datasheet | HXW | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.86 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400MXK270MEFCSN25X30CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet | MXK | Tray | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.002 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
63MXG10000MEFCSN35X40CAP ALUM 10000UF 20% 63V SNAP TH |
0 |
|
Datasheet | MXG | Bulk | Active | 10000 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.48 A @ 120 Hz | 5.152 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450LXW220MEFR18X50CAP ALUM 220UF 20% 450V RADIAL |
0 |
|
Datasheet | LXW | Bulk | Active | 220 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | 2.46 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450MXK820MEFCSN35X50CAP ALUM 820UF 20% 450V SNAP TH |
0 |
|
Datasheet | MXK | Tray | Active | 820 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.59 A @ 120 Hz | 3.626 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
63YXF10MEFCT15X11CAP ALUM 10UF 20% 63V RADIAL TH |
0 |
|
Datasheet | YXF | Cut Tape (CT) | Not For New Designs | 10 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 36.54 mA @ 120 Hz | 87 mA @ 100 kHz | 2.3 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole |
