Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLG2G821MELC40CAP ALUM 820UF 20% 400V SNAP TH |
157 |
|
Datasheet | LLG | Bulk | Active | 820 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 3.8467 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKX2W471MESC45CAP ALUM 470UF 20% 450V SNAP TH |
116 |
|
Datasheet | LKX | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.78 A @ 120 Hz | 2.5454 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

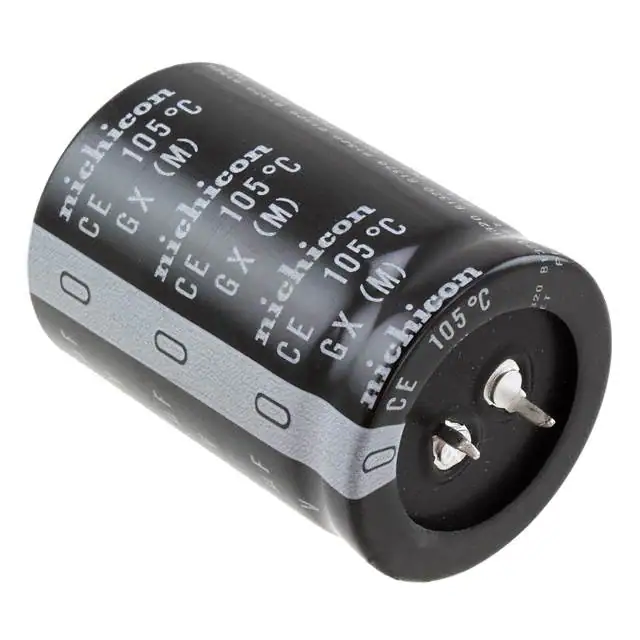

LGX2W561MELC50CAP ALUM 560UF 20% 450V SNAP TH |
184 |
|
Datasheet | LGX | Bulk | Active | 560 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.8314 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGG2W561MELC45CAP ALUM 560UF 20% 450V SNAP TH |
200 |
|
Datasheet | LGG | Bulk | Active | 560 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.431 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGM2W471MELC30CAP ALUM 470UF 20% 450V SNAP TH |
106 |
|
Datasheet | LGM | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
LGZ2W331MELC50CAP ALUM 330UF 20% 450V SNAP TH |
189 |
|
Datasheet | LGZ | Bulk | Active | 330 µF | ±20% | 450 V | - | 20000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.9734 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LQR2G821MSECCAP ALUM 820UF 20% 400V SCREW CH |
126 |
|
Datasheet | LQR | Bulk | Active | 820 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 5.74 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
LGL2G821MELC40CAP ALUM 820UF 20% 400V SNAP TH |
160 |
|
Datasheet | LGL | Bulk | Active | 820 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.92 A @ 120 Hz | 2.7456 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LNT1C333MSECAP ALUM 33000UF 20% 16V SCREW |
111 |
|
Datasheet | LNT | Bulk | Active | 33000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.2 A @ 120 Hz | 5.98 A @ 10 kHz | - | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
LGL2W681MELC45CAP ALUM 680UF 20% 450V SNAP TH |
931 |
|
Datasheet | LGL | Bulk | Active | 680 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.5311 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
