Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPW2W3R3MHD1TOCAP ALUM 3.3UF 20% 450V RADIAL |
62 |
|
Datasheet | UPW | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 41 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCA2D330MHD1TOCAP ALUM 33UF 20% 200V RADIAL TH |
33 |
|
Datasheet | UCA | Cut Tape (CT) | Not For New Designs | 33 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UVR2C470MHD1TOCAP ALUM 47UF 20% 160V RADIAL TH |
1,697 |
|
Datasheet | UVR | Cut Tape (CT) | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 432 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UCQ1E470MCL1GSCAP ALUM 47UF 20% 25V SMD |
900 |
|
Datasheet | UCQ | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 100 mA @ 120 Hz | 150 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1J101MHD6CAP ALUM 100UF 20% 63V RADIAL TH |
865 |
|
Datasheet | UPJ | Bulk | Not For New Designs | 100 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 460 mA @ 120 Hz | - | 200 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UZT0J470MCL1GBCAP ALUM 47UF 20% 6.3V SMD |
767 |
|
Datasheet | UZT | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | AEC-Q200 | General Purpose | 32 mA @ 120 Hz | 48 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.181" (4.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UCJ1H101MCL1GSCAP ALUM 100UF 20% 50V SMD |
267 |
|
Datasheet | UCJ | Tape & Reel (TR) | Active | 100 µF | ±20% | 50 V | 1.5Ohm | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 165 mA @ 120 Hz | 330 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UPS0J102MPDCAP ALUM 1000UF 20% 6.3V RADIAL |
200 |
|
Datasheet | UPS | Bulk | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 522 mA @ 120 Hz | 600 mA @ 100 kHz | 190 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|

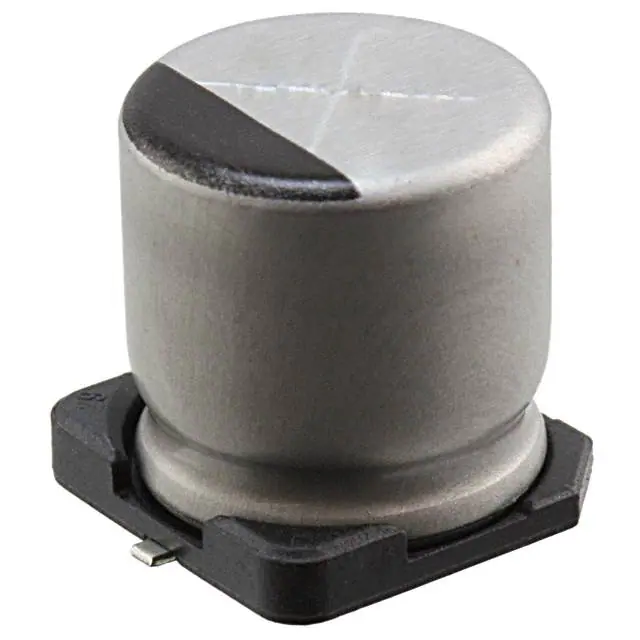

UUA1C471MNL1GSCAP ALUM 470UF 20% 16V SMD |
69 |
|
Datasheet | UUA | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 320 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UVZ2W4R7MPD1TDCAP ALUM 4.7UF 20% 450V RADIAL |
1,333 |
|
Datasheet | UVZ | Cut Tape (CT) | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
