Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULD1H4R7MDD1TDCAP ALUM 4.7UF 20% 50V RADIAL TH |
1,030 |
|
Datasheet | ULD | Cut Tape (CT) | Obsolete | 4.7 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33.6 mA @ 120 Hz | 80 mA @ 100 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVK1E101MDD1TDCAP ALUM 100UF 20% 25V RADIAL TH |
42,866 |
|
Datasheet | UVK | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 270 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVZ1C221MEDCAP ALUM 220UF 20% 16V RADIAL TH |
25,753 |
|
Datasheet | UVZ | Bulk | Obsolete | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 285 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ1A221MEDCAP ALUM 220UF 20% 10V RADIAL TH |
18,626 |
|
Datasheet | UVZ | Bulk | Obsolete | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 262.5 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
|
UVZ2E2R2MED1TDCAP ALUM 2.2UF 20% 250V RADIAL |
17,473 |
|
Datasheet | UVZ | Cut Tape (CT) | Obsolete | 2.2 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 36.8 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UPS1C101MEDCAP ALUM 100UF 20% 16V RADIAL TH |
13,981 |
|
Datasheet | UPS | Bulk | Obsolete | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | 500 mOhms | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | |
|
UVY1E101MDD1TACAP ALUM 100UF 20% 25V RADIAL TH |
10,231 |
|
Datasheet | UVY | Cut Tape (CT) | Obsolete | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 187.5 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

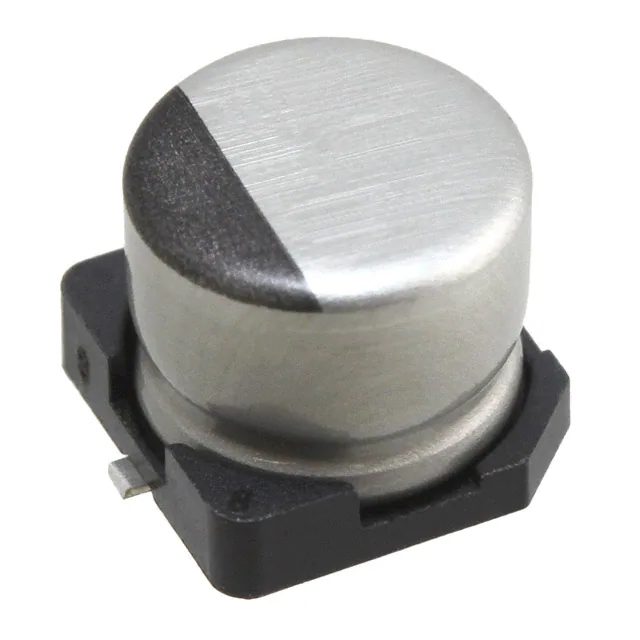

UWJ0J101MCL1GBCAP ALUM 100UF 20% 6.3V SMD |
7,781 |
|
Datasheet | UWJ | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 105 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ1V270MDD1TDCAP ALUM 27UF 20% 35V RADIAL TH |
7,503 |
|
Datasheet | UPJ | Cut Tape (CT) | Obsolete | 27 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 99 mA @ 120 Hz | 180 mA @ 10 kHz | 1 Ohms | 0.098" (2.50mm) | 0.197" Dia (5.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
UVZ2E2R2MEDCAP ALUM 2.2UF 20% 250V RADIAL |
7,458 |
|
Datasheet | UVZ | Bulk | Obsolete | 2.2 µF | ±20% | 250 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 36.8 mA @ 10 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole |
