Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNU2G183MSEJBBCAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet | LNU | Bulk | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 9.370" (238.00mm) | - | Chassis Mount | |
|
|
LNU2G183MSEJBNCAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet | LNU | Bulk | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 9.370" (238.00mm) | - | Chassis Mount | |
|
|
LNU2G183MTEJCAP ALUM 18000UF 20% 400V SCREW |
0 |
|
Datasheet | LNU | Bulk | Active | 18000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 A @ 120 Hz | 53.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 9.370" (238.00mm) | - | Chassis Mount | |
|

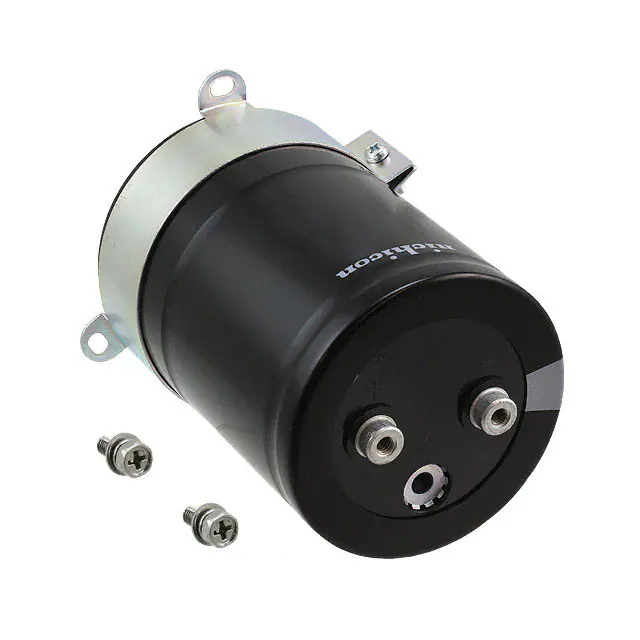

LNT2H822MSEJCAP ALUM 8200UF 20% 500V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 8200 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25.5 A @ 120 Hz | 35.7 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|
|
LNR1C155MSENCAP ALUM 1.5F 20% 16V SCREW CHAS |
0 |
|
Datasheet | LNR | Bulk | Active | 1.5 F | ±20% | 16 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 39.7 A @ 120 Hz | 45.655 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 9.961" (253.00mm) | - | Chassis Mount | |
|
|
LNX2H123MSEKBNCAP ALUM 12000UF 20% 350V SCREW |
0 |
|
Datasheet | LNX | Bulk | Active | 12000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 27.8 A @ 120 Hz | 38.92 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 8.819" (224.00mm) | - | Chassis Mount | |
|
|
LNK2H103MSEJBBCAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet | LNK | Bulk | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.3 A @ 120 Hz | 41.02 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 9.370" (238.00mm) | - | Chassis Mount | |
|
|
LNK2H103MSEJBNCAP ALUM 10000UF 20% 500V SCREW |
0 |
|
Datasheet | LNK | Bulk | Active | 10000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 29.3 A @ 120 Hz | 41.02 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 9.370" (238.00mm) | - | Chassis Mount | |
|
LNT2A154MSECAP ALUM 150000UF 20% 100V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 150000 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.4 A @ 120 Hz | 26.91 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 8.819" (224.00mm) | - | Chassis Mount | |
|
|
LNX2W183MSEKBNCAP ALUM 18000UF 20% 450V SCREW |
0 |
|
Datasheet | LNX | Bulk | Active | 18000 µF | ±20% | 450 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 37 A @ 120 Hz | 51.8 A @ 10 kHz | - | 1.634" (41.50mm) | 3.937" Dia (100.00mm) | 10.000" (254.00mm) | - | Chassis Mount |
