Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNT1A474MSEBCAP ALUM 470000UF 20% 10V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 470000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNT1A474MSENCAP ALUM 470000UF 20% 10V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 470000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17 A @ 120 Hz | 25.5 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|

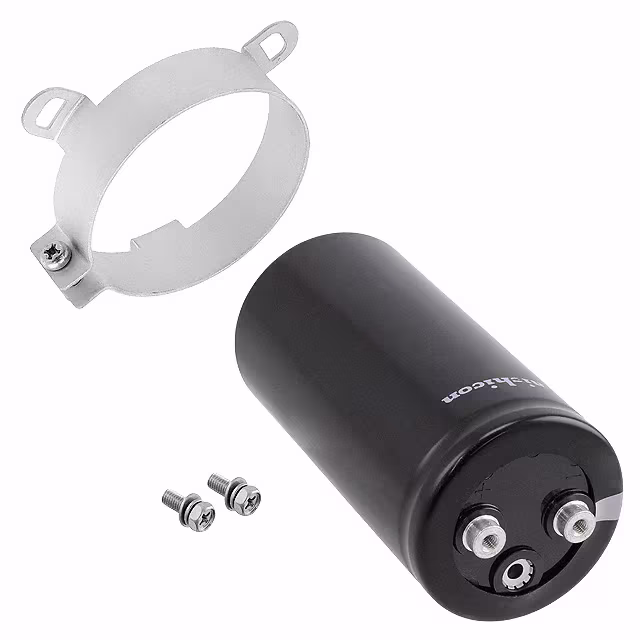

LNK2V562MSEGCAP ALUM 5600UF 20% 350V SCREW |
0 |
|
Datasheet | LNK | Bulk | Active | 5600 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.3 A @ 120 Hz | 24.22 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 5.118" (130.00mm) | - | Chassis Mount | |
|
|
LNY2W472MSEHBBCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet | LNY | Bulk | Active | 4700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
|
LNY2W472MSEHBNCAP ALUM 4700UF 20% 450V SCREW |
0 |
|
Datasheet | LNY | Bulk | Active | 4700 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 15.6 A @ 120 Hz | 21.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.252" (108.00mm) | - | Chassis Mount | |
|
LNT2E682MSECAP ALUM 6800UF 20% 250V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 6800 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 7.1 A @ 120 Hz | 8.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.843" (123.00mm) | - | Chassis Mount | |
|
|
LNR2C223MSEBCAP ALUM 22000UF 20% 160V SCREW |
0 |
|
Datasheet | LNR | Bulk | Active | 22000 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.9 A @ 120 Hz | 20.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LNR2C223MSENCAP ALUM 22000UF 20% 160V SCREW |
0 |
|
Datasheet | LNR | Bulk | Active | 22000 µF | ±20% | 160 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 16.9 A @ 120 Hz | 20.28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.630" (143.00mm) | - | Chassis Mount | |
|
|
LQR2W332MSEHBBCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet | LQR | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 16.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LQR2W332MSEHBNCAP ALUM 3300UF 20% 450V SCREW |
0 |
|
Datasheet | LQR | Bulk | Active | 3300 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.8 A @ 120 Hz | 16.52 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 4.055" (103.00mm) | - | Chassis Mount |
