Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LNC2G152MSEFBBCAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet | LNC | Bulk | Active | 1500 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNC2G152MSEFBNCAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet | LNC | Bulk | Active | 1500 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNC2G152MTEFCAP ALUM 1500UF 20% 400V SCREW |
0 |
|
Datasheet | LNC | Bulk | Active | 1500 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 15.12 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|
|
LNR1E104MSEBCAP ALUM 100000UF 20% 25V SCREW |
0 |
|
Datasheet | LNR | Bulk | Active | 100000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 120 Hz | 13.8 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LNR1E104MSENCAP ALUM 100000UF 20% 25V SCREW |
0 |
|
Datasheet | LNR | Bulk | Active | 100000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 A @ 120 Hz | 13.8 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
|
|
LNT2G102MSEFBBCAP ALUM 1000UF 20% 400V SCREW |
0 |
|
Datasheet | LNT | Bulk | Active | 1000 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 6.6 A @ 120 Hz | 9.24 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 3.268" (83.00mm) | - | Chassis Mount | |
|

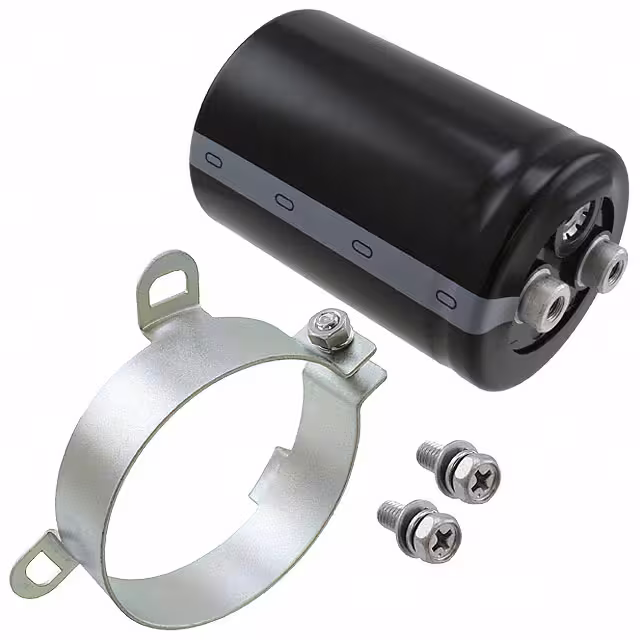

LNK2G122MSEFCAP ALUM 1200UF 20% 400V SCREW |
0 |
|
Datasheet | LNK | Bulk | Active | 1200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 120 Hz | 8.12 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.953" (75.00mm) | - | Chassis Mount | |
|
LNC2G122MSEFCAP ALUM 1200UF 20% 400V SCREW |
0 |
|
Datasheet | LNC | Bulk | Active | 1200 µF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.677" (68.00mm) | - | Chassis Mount | |
|
|
LNC2G122MTEFCAP ALUM 400V POLAR |
0 |
|
Datasheet | LNC | Bulk | Active | 1.2 mF | ±20% | 400 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 13.02 A @ 10 kHz | - | - | 2.008" Dia (51.00mm) | 2.677" (68.00mm) | - | Chassis Mount | |
|
|
LNR1A224MSEBCAP ALUM 220000UF 20% 10V SCREW |
0 |
|
Datasheet | LNR | Bulk | Active | 220000 µF | ±20% | 10 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13 A @ 120 Hz | 14.95 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount |
