Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

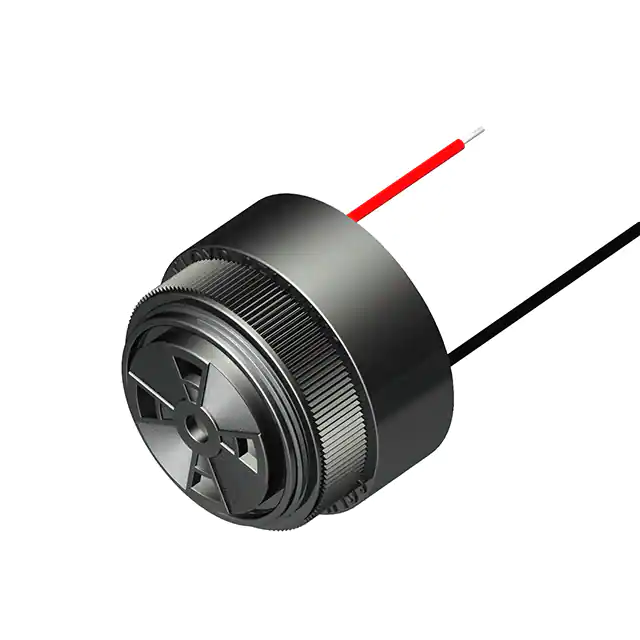

LB-07-530-W(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
LC-07-530-WBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
LB-07-530-W(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
MB-09-948-W(S)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|
|
MB-09-516-W(M)BUZZER PIEZO PNL MNT |
1,000 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Medium | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | - |
|
|
MB-09-530-W(S)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|
|
MB-09-948-W(U)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|
|
MB-09-530-W(U)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|
|
MB-09-948-W(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MB-09-948-W(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MB-09-516-W(F)BUZZER PIEZO PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Fast | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | - |
|
|
MB-09-516-W(S)BUZZER PIEZO PNL MNT |
1,000 |
|
- |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pulse, Slow | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | - |
|
|
MB-09-530-W(M)BUZZER PIEZO 35.81MM PNL MNT |
999 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MB-09-530-W(F)BUZZER PIEZO 35.81MM PNL MNT |
995 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MW09530WMBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MW09616WMBUZZER PIEZO PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | - | - | - | - | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | - |
|
|
MW-09-948-W(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MW-09-530-W(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.6kHz ~ 3kHz | Piezo | Warble Fast | - | 95dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
MW-09-948-W(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 48V | 2.6kHz ~ 3kHz | Piezo | Warble, Medium | - | 95dB @ 48V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
|
LS-07-530-WBUZZER PIEZO 35.81MM PNL MNT |
993 |
|
Datasheet | AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Siren | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
