Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCH616NRBUZZER PIEZO 42.85MM PNL MNT |
4,789 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 91dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
15300066BUZZER 48V |
2,944 |
|
Datasheet | - | Box | Active | - | - | 48 V | - | - | - | Siren, Alternating Continuous Tone | - | - | - | - | -25°C ~ 50°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
|
15300054BUZZER 12V |
3,352 |
|
Datasheet | - | Box | Active | - | - | 12 V | - | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 50°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
SCH307NRBUZZER PIEZO 42.85MM PNL MNT |
2,931 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 3 ~ 7V | 2.9kHz | Piezo | Single Tone | - | 93dB @ 3V, 61cm | 4 ~ 12mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH616NPRBUZZER PIEZO 42.85MM PNL MNT |
3,597 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 91dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
19000068BUZZER 230V |
4,192 |
|
Datasheet | - | Box | Active | - | - | 230 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
|
SCH628NLRBUZZER PIEZO 42.85MM PNL MNT |
1,169 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 86dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Wire Leads | 1.687" Dia (42.85mm) |
|

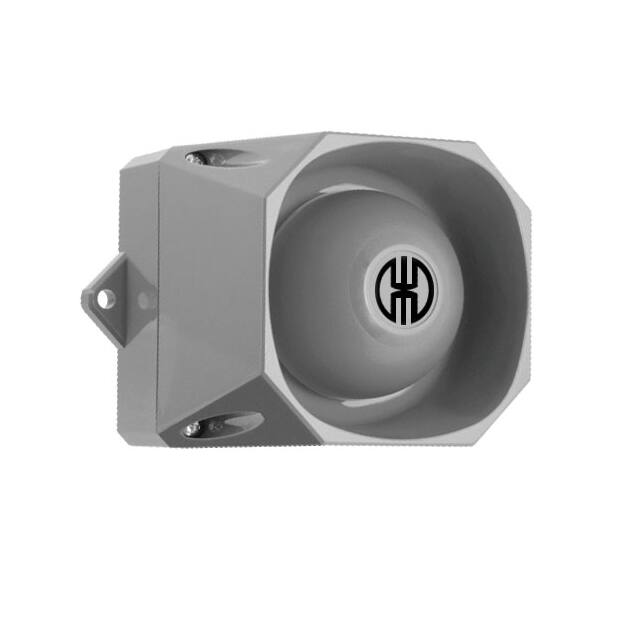

13910055BUZZER MULTI SOUNDER 9-60V |
4,270 |
|
Datasheet | - | Box | Active | - | - | - | 9 ~ 60V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
|
EB3P-ZUN12FN30MM BUZZER INTRINSICALLY-SAFE |
4,845 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VAZ-BUZZER/LT-RDAS-INTERFACE (EXCLUDING SENSORS) |
2,415 |
|
Datasheet | - | Box | Active | Indicator, Internally Driven | DC | 24 V | - | 2.8kHz | - | - | - | 80dB | 80mA | Top | -20°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | Base Mount | Terminal Block | 1.949" Dia (49.50mm) |
|
|
SCH628PRBUZZER PIEZO 42.85MM PNL MNT |
4,542 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 78dB @ 6V, 61cm | 6 ~ 26mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH628ARBUZZER PIEZO 42.85MM PNL MNT |
2,466 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 76dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCH648ARBUZZER PIEZO 42.85MM PNL MNT |
1,702 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 77dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
13910068BUZZER MULTI SOUNDER 115-23 |
4,112 |
|
Datasheet | - | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
13900068BUZZER MULTI SOUNDER 115-23 |
2,458 |
|
Datasheet | - | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Multiple Tone | - | - | - | - | -25°C ~ 70°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
SCH110RBUZZER PIEZO 42.85MM PNL MNT |
2,951 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 81dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCH250RBUZZER PIEZO 42.85MM PNL MNT |
2,383 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH616CPRBUZZER PIEZO 42.85MM PNL MNT |
2,061 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | - | 75dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH628ANRBUZZER PIEZO 42.85MM PNL MNT |
2,157 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 88dB @ 6V, 61cm | 4 ~ 30mA | Top | -30°C ~ 65°C | cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH110NRBUZZER PIEZO 42.85MM PNL MNT |
3,604 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 30V, 61cm | 6 ~ 24mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
