Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBS12CHFLBUZZER MAGNETIC 44.45MM FLANGE |
2,362 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12VMFLBUZZER MAGNETIC 44.45MM FLANGE |
1,510 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12XHFLBUZZER MAGNETIC 44.45MM FLANGE |
3,465 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12DMFLBUZZER MAGNETIC 44.45MM FLANGE |
3,793 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12VHFLBUZZER MAGNETIC 44.45MM FLANGE |
3,572 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12DHFLBUZZER MAGNETIC 44.45MM FLANGE |
1,482 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12GHFLBUZZER MAGNETIC 44.45MM FLANGE |
3,694 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12PMFLBUZZER MAGNETIC 44.45MM FLANGE |
1,024 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12PHFLBUZZER MAGNETIC 44.45MM FLANGE |
1,037 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12THFLBUZZER MAGNETIC 44.45MM FLANGE |
1,114 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12GMFLBUZZER MAGNETIC 44.45MM FLANGE |
1,459 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12GLFLBUZZER MAGNETIC 44.45MM FLANGE |
2,954 |
|
Datasheet | SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Slow | Repeating every 30 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
SC250NBUZZER PIEZO 42.85MM PNL MNT |
1,395 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

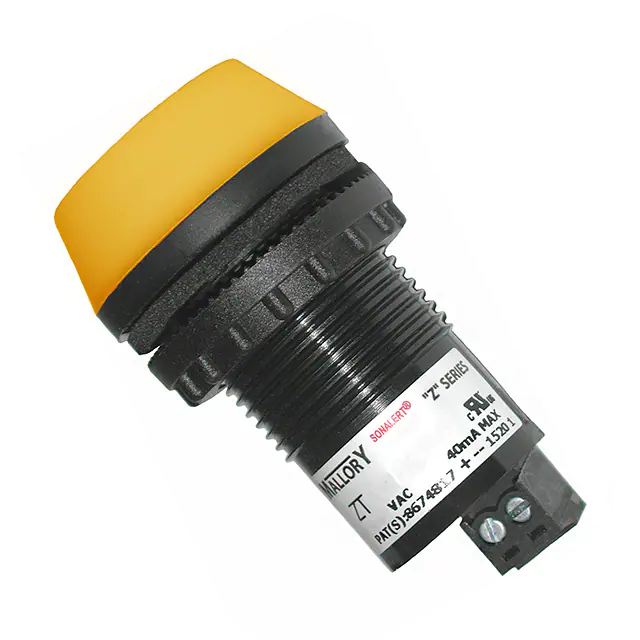

ZT120LACTYBUZZER PIEZO 30.74MM PNL MNT |
1,061 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Yellow | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MACM1BUZZER PIEZO 30.74MM PNL MNT |
1,114 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MADT7BUZZER PIEZO 30.74MM PNL MNT |
4,384 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Warble, Fast | 7 WPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MADT8BUZZER PIEZO 30.74MM PNL MNT |
1,577 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Warble, Slow | 1.5 WPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MASR8BUZZER PIEZO 30.74MM PNL MNT |
1,734 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Siren, Fast | 5 SPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120MASR9BUZZER PIEZO 30.74MM PNL MNT |
2,942 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Siren, Slow | 2 SPS | 75dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120SACM1BUZZER PIEZO 30.74MM PNL MNT |
4,506 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Chime | Repeating every 3 Sec | 65dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
