Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMI-0955-05TH9MMX5.5MM 5 V, 85 DB, THROUGH H |
910 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.362" Dia (9.20mm) |
|
|
CMI-1295-03TH12MMX9.5MM 3 V, 85 DB, THROUGH |
994 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 110mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
CMI-1275-05TH12MMX7.5MM 5 V, 85 DB, THROUGH |
990 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 110mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
CMI-0955-03TH9MMX5.5MM 3 V, 80 DB, THROUGH H |
980 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 80dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.362" Dia (9.20mm) |
|
|
CMI-1275-03TH12MMX7.5MM 3 V, 85 DB, THROUGH |
830 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.7kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
CMI-1295-05TH12MMX9.5MM 5 V, 85 DB, THROUGH |
775 |
|
Datasheet | CMI | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.4kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
CSS-0575B-SMT-TRBUZZER MAGNETIC 3V 5X5MM SMD |
1,474 |
|
Datasheet | CSS | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 75dB @ 3V, 10cm | 110mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
|
|
CPI-4116-85PMBUZZER PIEZO 12V 41.8MM FLANGE |
1,335 |
|
Datasheet | CPI | Box | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 2.8kHz | Piezo | Single Tone | - | 85dB @ 12V, 30cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|

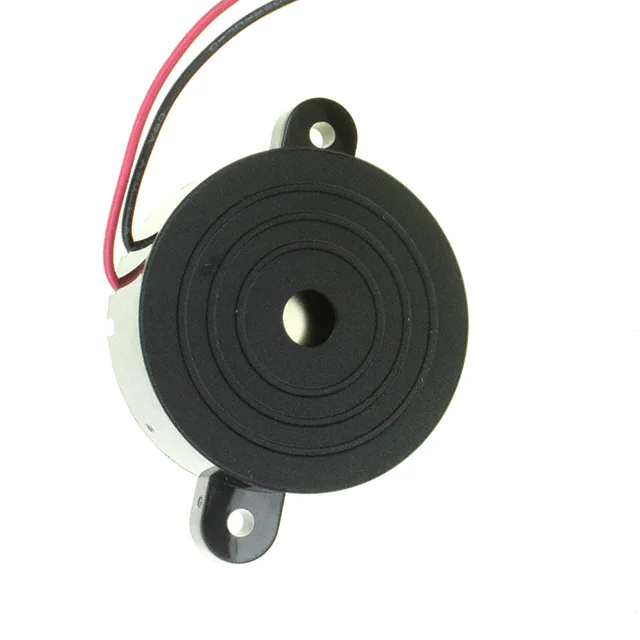

CPE-353BUZZER PIEZO 12V 41.80MM FLANGE |
2,712 |
|
Datasheet | CPE | Box | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.8kHz | Piezo | Pulse, Slow | - | 81dB @ 12V, 30cm | 8mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|
|
CMT-7525-80-SMT-TRBUZZER MAGN 3.6V 7.5X7.5 SMD |
2,945 |
|
Datasheet | CMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.73kHz | Magnetic | - | - | 80dB @ 3.6V, 10cm | 100mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.295" L x 0.295" W (7.50mm x 7.50mm) |
