Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCL016MD3CTBBUZZER PIEZO 42.85MM PNL MNT |
2,562 |
|
Datasheet | SCL | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 6V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

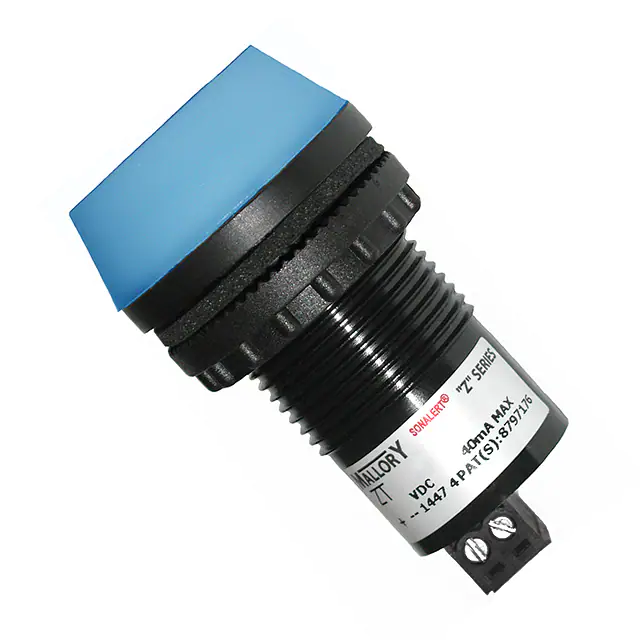

ZT028LDCTBBUZZER PIEZO 30.74MM PNL MNT |
3,514 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628FJRBUZZER PIEZO 42.98MM PNL MNT |
4,885 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 50dB @ 6V, 61cm | 5 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628FJBUZZER PIEZO 42.98MM PNL MNT |
4,884 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 50dB @ 6V, 61cm | 5 ~ 20mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC648NDBUZZER PIEZO 42.98MM PNL MNT |
4,767 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 7 ~ 22mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE028LD3VC1BBUZZER PIEZO 42.85MM PNL MNT |
4,181 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE028LD3VC2BBUZZER PIEZO 42.85MM PNL MNT |
1,606 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE028LD3VC4BBUZZER PIEZO 42.85MM PNL MNT |
2,489 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE028LD3VC3BBUZZER PIEZO 42.85MM PNL MNT |
2,627 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE016LD3VC2BBUZZER PIEZO 42.85MM PNL MNT |
4,668 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE016LD3VC4BBUZZER PIEZO 42.85MM PNL MNT |
2,461 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE016LD3VC3BBUZZER PIEZO 42.85MM PNL MNT |
1,301 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE016LD3VC1BBUZZER PIEZO 42.85MM PNL MNT |
2,122 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE048LD3VC1BBUZZER PIEZO 42.85MM PNL MNT |
1,709 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE048LD3VC3BBUZZER PIEZO 42.85MM PNL MNT |
1,178 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Medium | 5 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE048LD3VC2BBUZZER PIEZO 42.85MM PNL MNT |
3,762 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 10 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCE048LD3VC4BBUZZER PIEZO 42.85MM PNL MNT |
2,277 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Slow | 1 PPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
ZA048LACTBUZZER PIEZO 30.74MM PNL MNT |
3,099 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 28 ~ 48V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 28V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SBS12LMMCPCBUZZER MAGNETIC 44.45MM TH |
3,666 |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SBS12LMMDPCBUZZER MAGNETIC 44.45MM TH |
4,031 |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pin Selectable | Variable | 95dB @ 9V, 10cm | 40 ~ 200mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
