Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

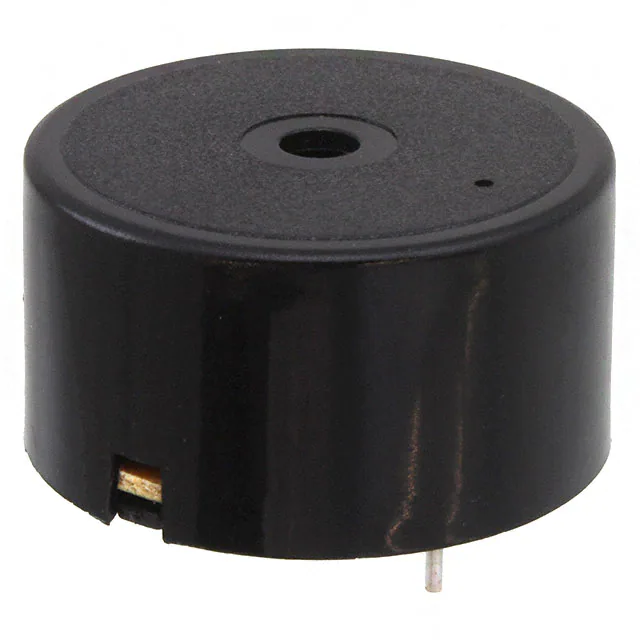

PK-27N25PSQBUZZER PIEZO 12V 30MM TH |
2,867 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
MSR516XBUZZER PIEZO 23MM TH |
2,642 |
|
Datasheet | MSR | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 5 ~ 16V | 3.4kHz | Piezo | Siren | - | 75dB @ 5V, 61cm | 3 ~ 12mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|

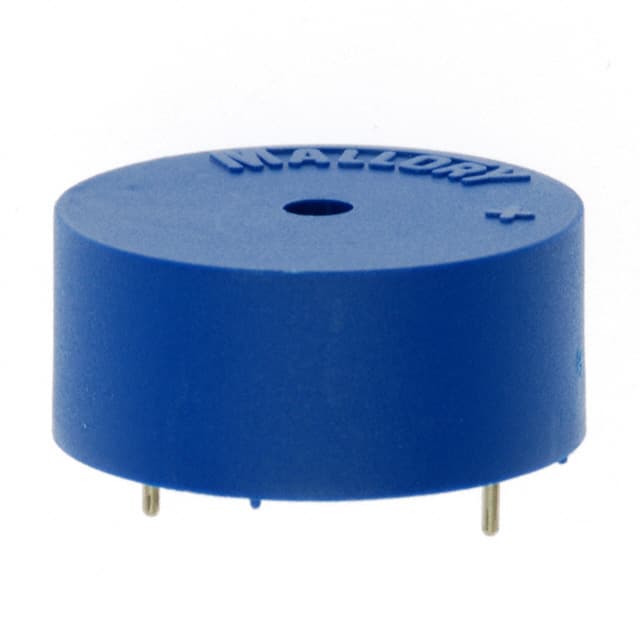

MSR516XRBUZZER PIEZO 23MM TH |
4,864 |
|
Datasheet | MSR | Bulk | Obsolete | Indicator, Internally Driven | DC | - | 5 ~ 16V | 3.4kHz | Piezo | Siren | - | 82dB @ 5V, 30cm | 3 ~ 12mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
PK-27N35PSQBUZZER PIEZO 12V 30MM TH |
3,775 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
PK-27A35WQBUZZER PIEZO 12V 30MM FLANGE |
4,265 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
MSR414NRBUZZER PIEZO 23MM TH |
1,698 |
|
Datasheet | MSR | Bulk | Not For New Designs | Indicator, Internally Driven | DC | - | 4 ~ 14V | 3.5kHz | Piezo | Single Tone | - | 88dB @ 4V, 30cm | 3 ~ 12mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
|
PS-583QBUZZER PIEZO 12V 50MM FLANGE |
4,163 |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz | Piezo | Siren, Fast | - | 100dB @ 12V, 100cm | 300mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.969" Dia (50.00mm) |
|
|
PLD-27N36WQBUZZER PIEZO 12V 30MM FLANGE |
2,724 |
|
Datasheet | PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Pin Selectable | Variable | 90dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
PFD-21N30WQBUZZER PIEZO 12V 24MM FLANGE |
4,129 |
|
Datasheet | PFD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 30V | 3kHz | Piezo | Pin Selectable | 3 PPS | 80dB @ 12V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
|
PK-16N04WA-03QBUZZER MAGN 3V 32X17 W FLANG |
3,476 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 400Hz | Magnetic | Single Tone | - | 82dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
