Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA028LACTBUZZER PIEZO 30.74MM PNL MNT |
1,711 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|

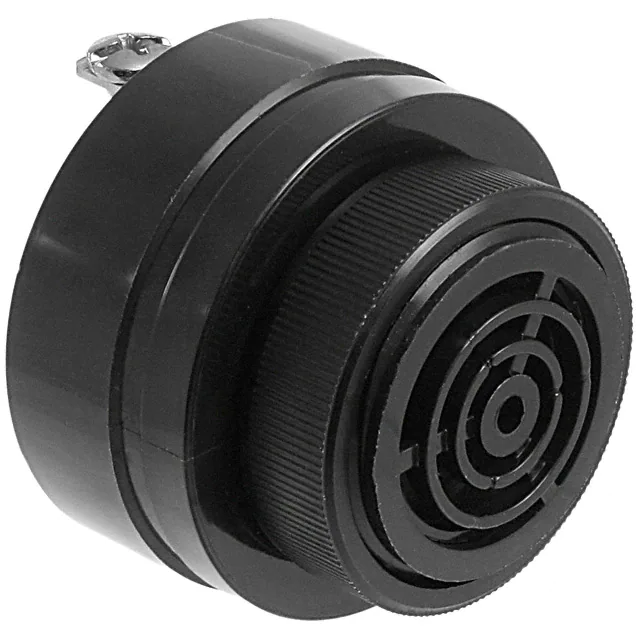

SC648ANRBUZZER PIEZO 42.98MM PNL MNT |
4,735 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 4 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC250BUZZER PIEZO 42.85MM PNL MNT |
4,530 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 60V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCE028XD3CTBBUZZER PIEZO 42.85MM PNL MNT |
3,107 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
STA35802BUZZER PIEZO127X100MM BRACKET |
4,084 |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 1.25kHz | Piezo | Pulse, Slow | - | 112dB @ 12V, 122cm | 1A | User Defined | -40°C ~ 85°C | CE, cUL, SAE, UL | - | - | Bracket Mount | Screw Terminals | 5.000" L x 3.937" W (127.00mm x 100.00mm) |
|
SC628JU-1BUZZER PIEZO 42.98MM PNL MNT |
1,833 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pin Selectable | 0.5 ~ 2 PPS | 68dB @ 6V, 61cm | 3 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|

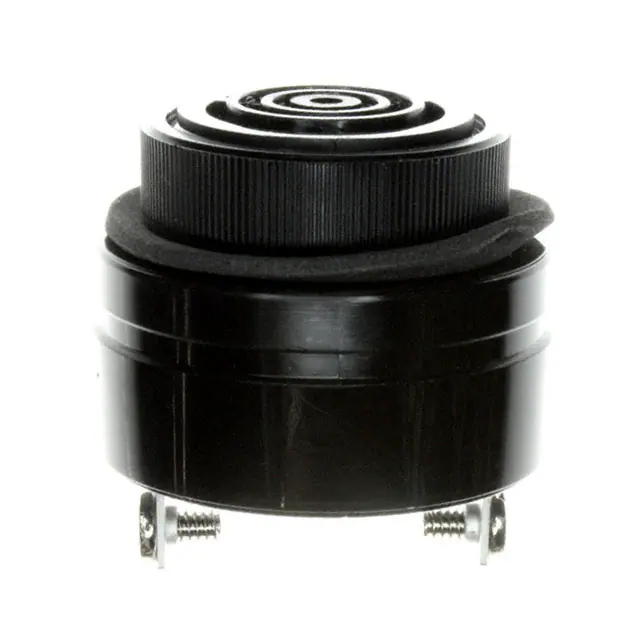

SC110DJRBUZZER PIEZO 42.85MM PNL MNT |
3,914 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 60dB @ 30V, 61cm | 6 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
LSC628ANBUZZER PIEZO 42.85MM PNL MNT |
1,070 |
|
Datasheet | LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 9 ~ 28V | 2.9kHz | Piezo, LED, Red | Single Tone, Visual Indicator | - | 80dB @ 9V, 10cm | 65mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SCH628RBUZZER PIEZO 42.85MM PNL MNT |
1,975 |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 18V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
PT-2045FWQBUZZER PIEZO 12V 24MM FLANGE |
3,494 |
|
Datasheet | PT | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 28V | 4.5kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 30cm | 8mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.945" Dia (24.00mm) |
