Adapter, Breakout Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Proto Board Type | Package Accepted | Number of Positions | Pitch | Board Thickness | Material | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0102QFN-20 TO DIP-20 SMT ADAPTER |
2,455 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.016" (0.40mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.000" (25.40mm x 25.40mm) |
|
PA0080TVSOP-48 TO DIP-48 SMT ADAPTER |
1,463 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | TVSOP | 48 | 0.016" (0.40mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 2.400" (25.40mm x 60.96mm) |
|

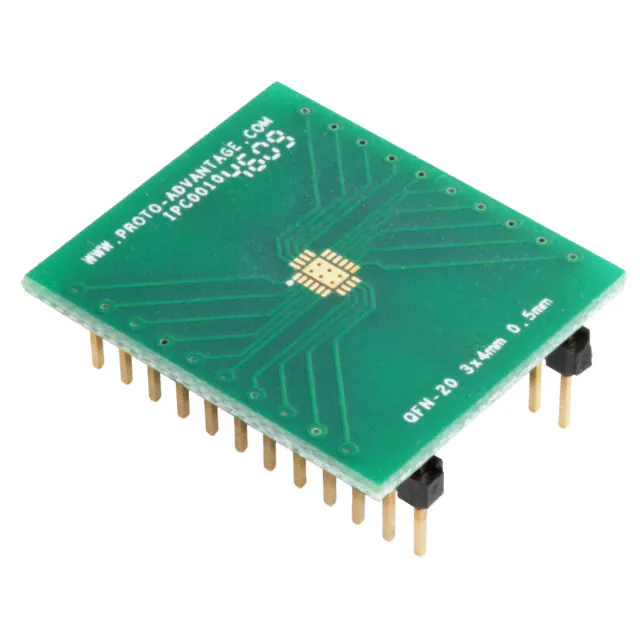

IPC0010QFN-20 TO DIP-24 SMT ADAPTER |
2,949 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.200" (25.40mm x 30.48mm) |
|
PA0207TSOP-40 I TO DIP-40 SMT ADAPTER |
1,358 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | TSOP | 40 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 2.000" (25.40mm x 50.80mm) |
|
IPC0108QFN-20 TO DIP-24 SMT ADAPTER |
4,941 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.018" (0.45mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.200" (25.40mm x 30.48mm) |
|

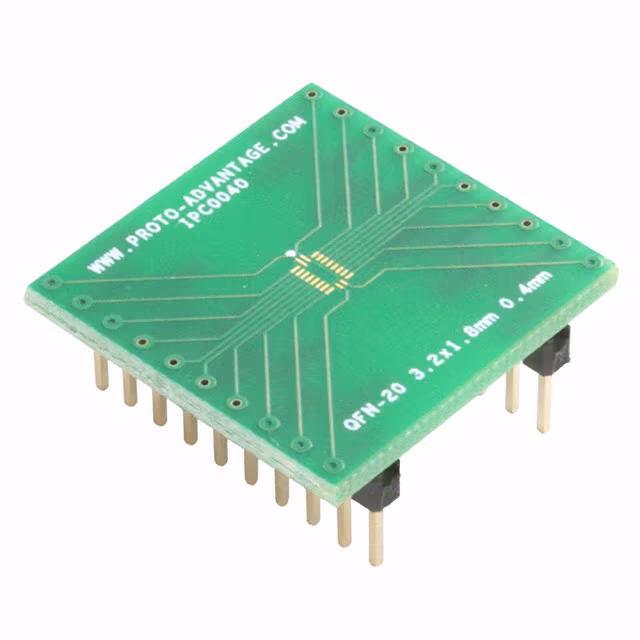

IPC0040QFN-20 TO DIP-20 SMT ADAPTER |
3,633 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.016" (0.40mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.000" (25.40mm x 25.40mm) |
|
IPC0126QFN-20 TO DIP-24 SMT ADAPTER |
2,342 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.200" (25.40mm x 30.48mm) |
|

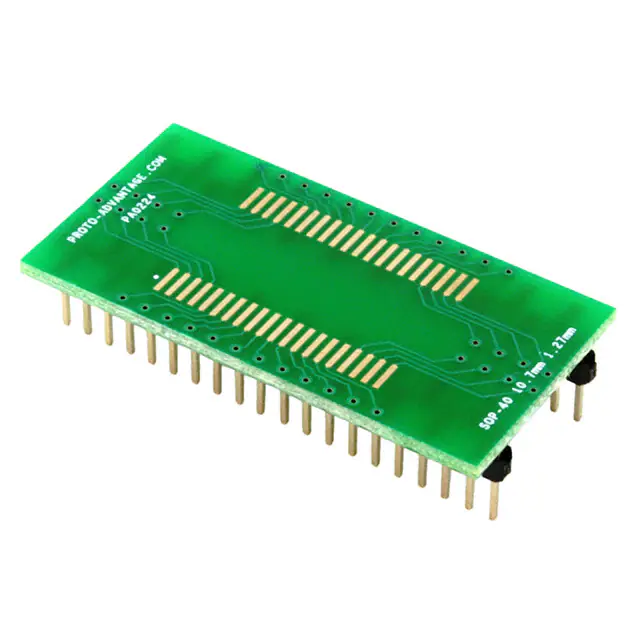

PA0224SOP-40 TO DIP-40 SMT ADAPTER |
3,811 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | SOP | 40 | 0.050" (1.27mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 2.000" (25.40mm x 50.80mm) |
|
PA0138LLP-16 TO DIP-16 SMT ADAPTER |
3,030 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | LLP | 16 | 0.020" (0.50mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 0.700" x 0.800" (17.78mm x 20.32mm) |
|

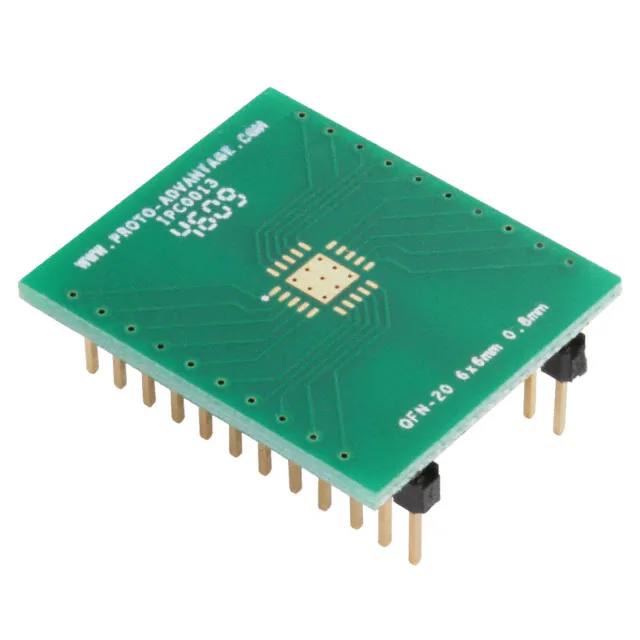

IPC0013QFN-20 TO DIP-24 SMT ADAPTER |
2,716 |
|
Datasheet | Proto-Advantage | Bulk | Active | SMD to DIP | QFN | 20 | 0.031" (0.80mm) | 0.062" (1.57mm) 1/16" | FR4 Epoxy Glass | 1.000" x 1.200" (25.40mm x 30.48mm) |
