Adapter, Breakout Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Proto Board Type | Package Accepted | Number of Positions | Pitch | Board Thickness | Material | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

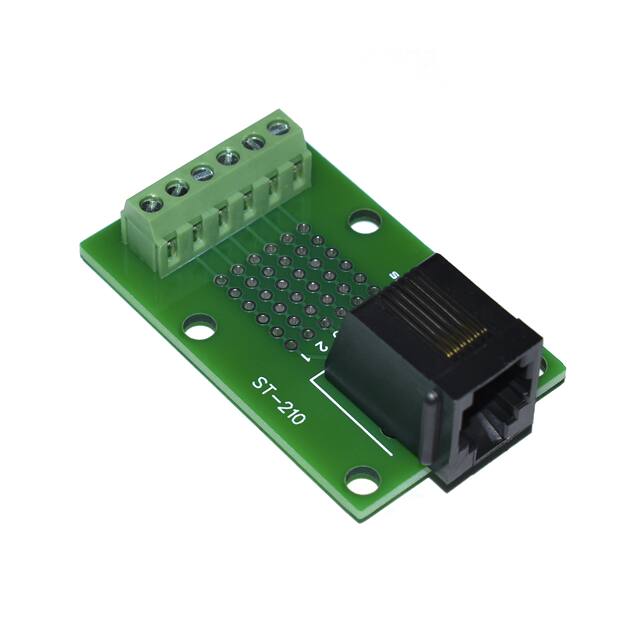

ST-210RJ11/RJ12 BREAKOUT BOARD |
4,405 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | RJ11 | 6 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 1.250" W (50.80mm x 31.75mm) |
|
ST-205USB TYPE B BREAKOUT BOARD |
3,969 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | USB-B (USB TYPE-B) | 6 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 1.250" W (50.80mm x 31.75mm) |
|
ST-2173.5MM 3-POLE BREAKOUT BOARD |
4,875 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | 3.5mm, 3-Pole | 3 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 1.250" W (50.80mm x 31.75mm) |
|
ST-221DB15 MALE BREAKOUT BOARD |
3,466 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | DB15 | 16 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 3.000" W (50.80mm x 76.20mm) |
|

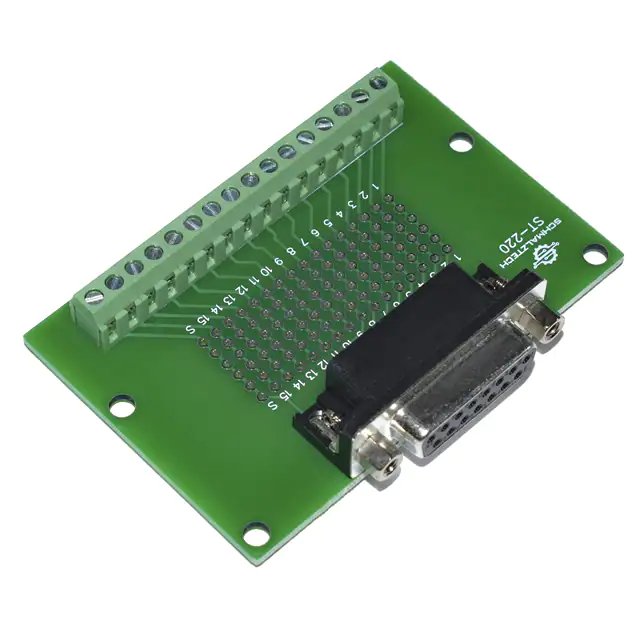

ST-220DB15 FEMALE BREAKOUT BOARD |
1,708 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | DB15 | 16 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 3.000" W (50.80mm x 76.20mm) |
|
ST-215RJ45 BREADBOARD BREAKOUT |
1,142 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to SIP | RJ45 | 9 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 1.300" L x 1.000" W (33.02mm x 25.40mm) |
|
ST-128SOT-23 SMD TO DIP ADAPTER |
3,588 |
|
Datasheet | ST-Adapt | Bag | Active | SMD to DIP | SOT-23 | 3 | 0.037" (0.95mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
|

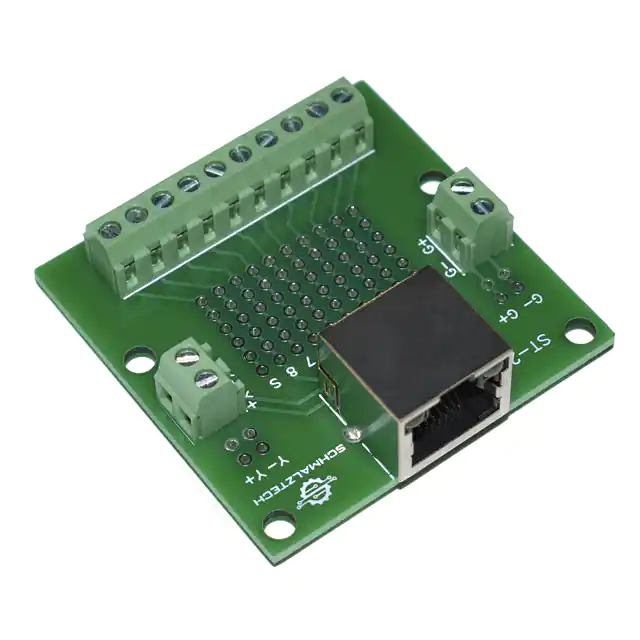

ST-216RJ45 W/ LED BREAKOUT BOARD |
1,514 |
|
Datasheet | ST-Adapt | Bag | Active | Connector to Terminal Block | RJ45 | 13 | 0.100" (2.54mm) | 0.063" (1.60mm) | FR4 Epoxy Glass | 2.000" L x 2.000" W (50.80mm x 50.80mm) |
|
ST-RJ45-S-E-CHSRJ45 Enclosed Breakout Board |
3,806 |
|
Datasheet | - | Box | Active | Connector to Terminal Block | RJ45 | 9 | 0.100" (2.54mm) | - | - | 2.330" L x 1.890" W (59.18mm x 48.01mm) |
