Adapter, Breakout Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Proto Board Type | Package Accepted | Number of Positions | Pitch | Board Thickness | Material | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA-SOD3SM18-08SOCKET ADAPTER SOIC TO 8DIP |
1,325 |
|
Datasheet | - | Box | Active | SMD to DIP | SOIC | 8 | 0.050" (1.27mm) | 0.031" (0.79mm) 1/32" | - | 0.450" L x 0.500" W (11.43mm x 12.70mm) |
|

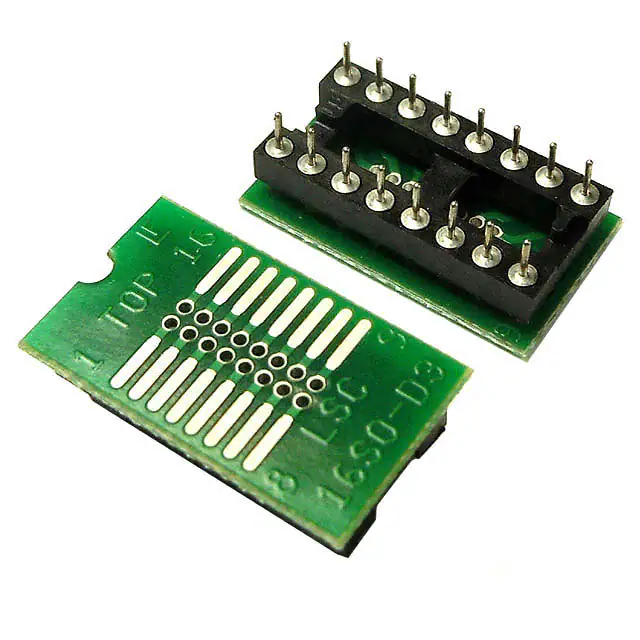

PA-SOD3SM18-16SOCKET ADAPTER SOIC TO 16DIP |
462 |
|
Datasheet | - | Box | Active | SMD to DIP | SOIC | 16 | 0.050" (1.27mm) | 0.031" (0.79mm) 1/32" | - | 0.850" L x 0.500" W (21.59mm x 12.70mm) |
|

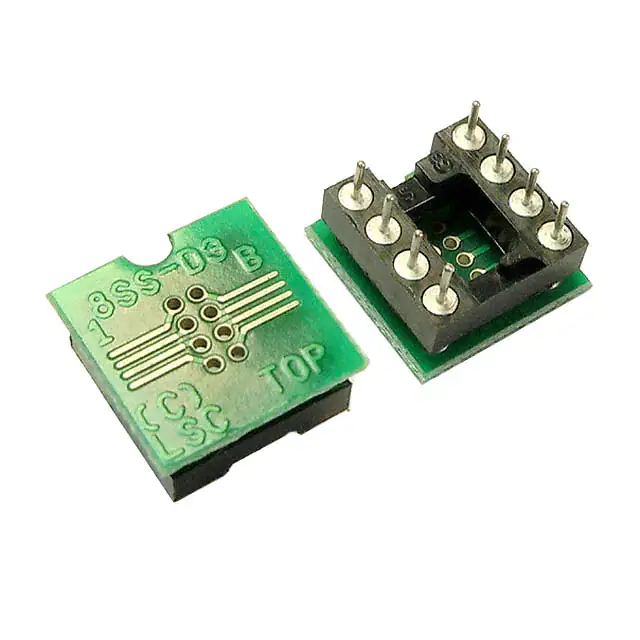

PA-SSD3SM18-08SOCKET ADAPTER SSOP TO 8DIP |
131 |
|
Datasheet | - | Box | Active | SMD to DIP | SSOP, TSSOP | 8 | 0.026" (0.65mm) | - | - | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
|

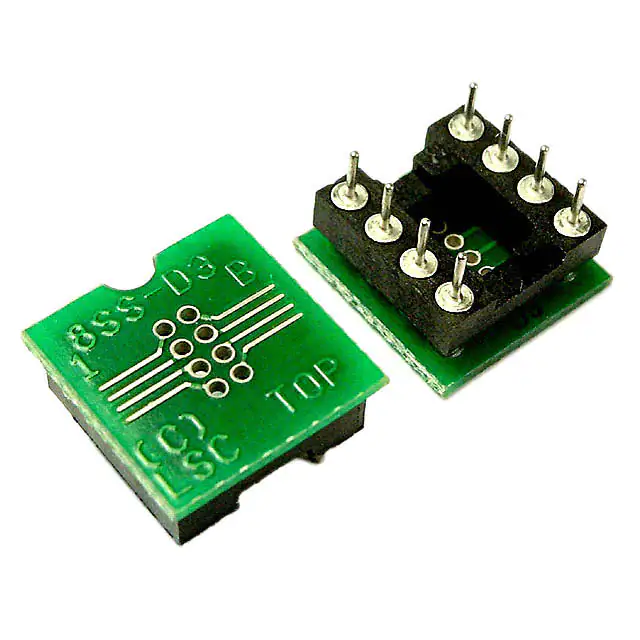

PA-MSD3SM18-08SOCKET ADAPTER MSOP TO 8DIP |
125 |
|
Datasheet | - | Box | Active | SMD to DIP | MSOP | 8 | 0.026" (0.65mm) | - | - | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
|

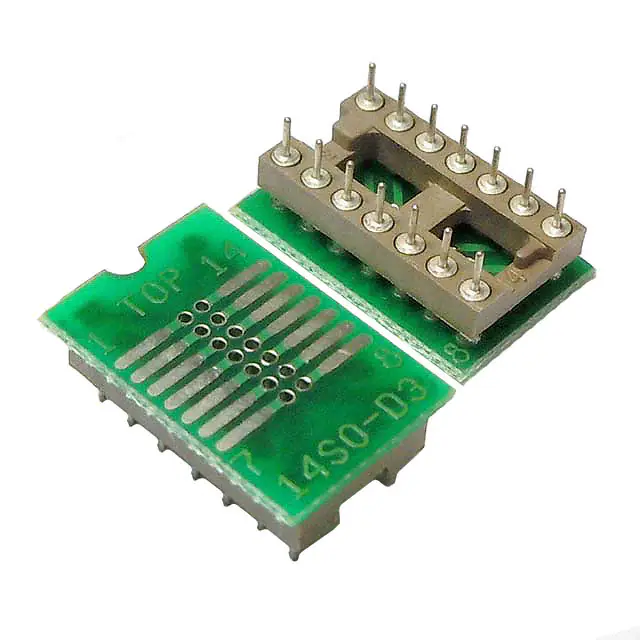

PA-SOD3SM18-14SOCKET ADAPTER SOIC TO 14DIP |
1,069 |
|
Datasheet | - | Box | Active | SMD to DIP | SOIC | 14 | 0.050" (1.27mm) | 0.031" (0.79mm) 1/32" | - | 0.750" L x 0.500" W (19.05mm x 12.70mm) |
|

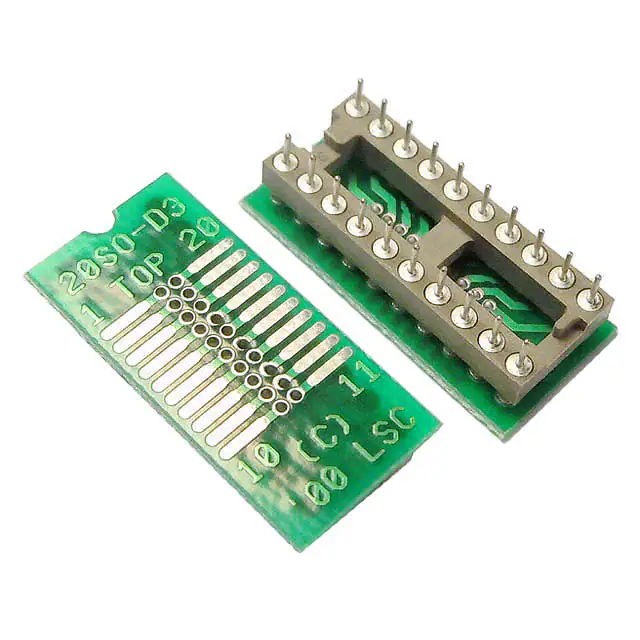

PA-SOD3SM18-20SOCKET ADAPTER SOIC TO 20DIP |
200 |
|
Datasheet | - | Box | Active | SMD to DIP | SOIC | 20 | 0.050" (1.27mm) | 0.031" (0.79mm) 1/32" | - | 1.050" L x 0.500" W (26.67mm x 12.70mm) |
|

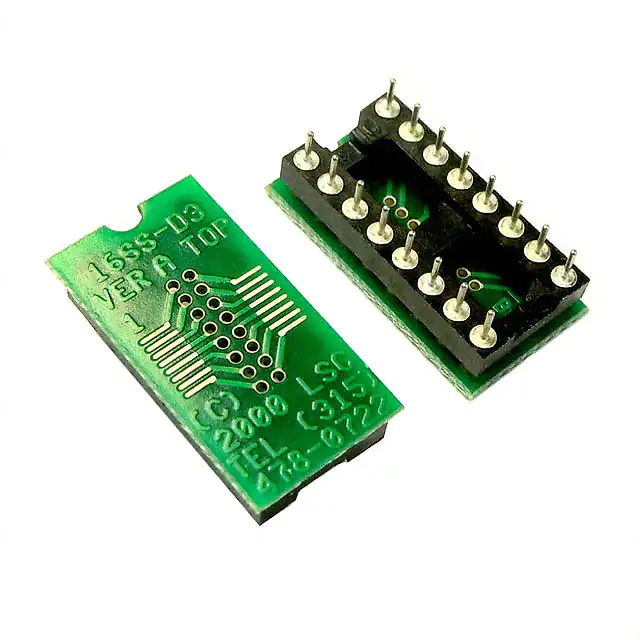

PA-SSD3SM18-16SOCKET ADAPTER SSOP TO 16DIP |
1,311 |
|
Datasheet | - | Box | Active | SMD to DIP | SSOP, TSSOP | 16 | 0.026" (0.65mm) | - | - | 0.850" L x 0.450" W (21.59mm x 11.43mm) |
|

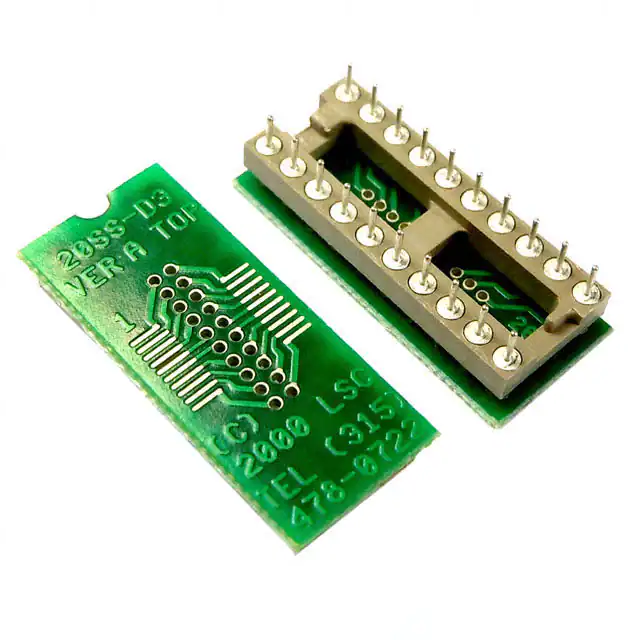

PA-SSD3SM18-20SOCKET ADAPTER SSOP TO 20DIP |
3,745 |
|
Datasheet | - | Bulk | Active | SMD to DIP | SSOP, TSSOP | 20 | 0.026" (0.65mm) | - | - | 1.050" L x 0.450" W (26.67mm x 11.43mm) |
|

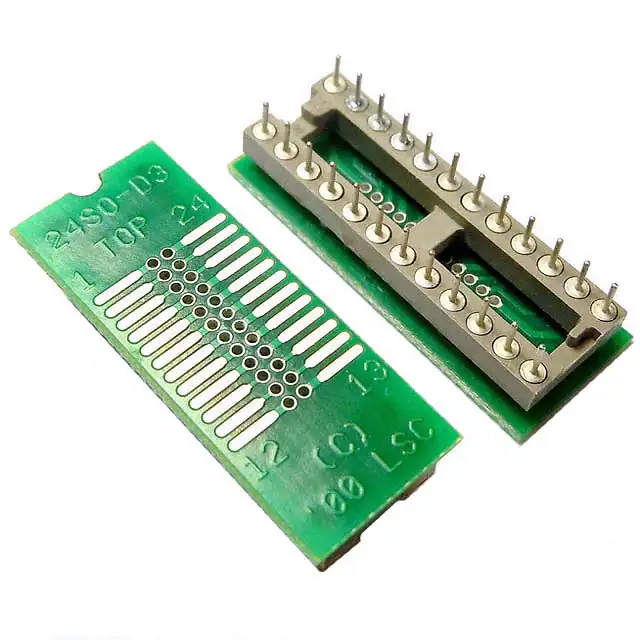

PA-SOD3SM18-24SOCKET ADAPTER SOIC TO 24DIP |
4,800 |
|
Datasheet | - | Box | Active | SMD to DIP | SOIC | 24 | 0.050" (1.27mm) | 0.031" (0.79mm) 1/32" | - | 1.250" L x 0.500" W (31.75mm x 12.70mm) |
|

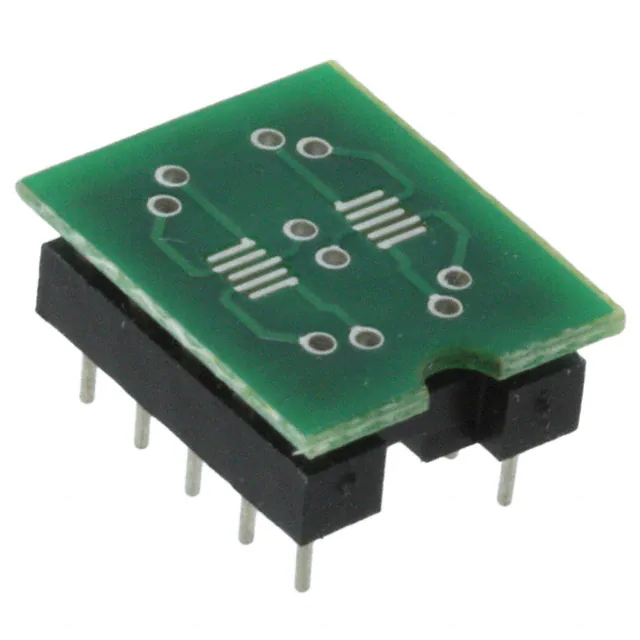

PA-MSD3SM18-10SOCKET ADAPTER MSOP TO 10DIP |
3,451 |
|
Datasheet | - | Box | Active | SMD to DIP | MSOP | 10 | 0.020" (0.50mm) | - | - | 0.450" L x 0.550" W (11.43mm x 13.97mm) |
