AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDM300G-24-UR-P219AC/DC DESKTOP ADAPTER 24V 300W |
4,212 |
|
Datasheet | SDM300G-UR (300W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 12.5A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 47" (1.20m) | IEC 320-C18 | - | 7.20" L x 3.35" W x 1.38" H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
SDM300G-24-U-P219AC/DC DESKTOP ADAPTER 24V 300W |
1,685 |
|
Datasheet | SDM300G-U (300W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 12.5A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 47" (1.20m) | IEC 320-C14 | - | 7.20" L x 3.35" W x 1.38" H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
SDI200G-56-U-P51AC/DC DESKTOP ADAPTER 56V 202W |
2,120 |
|
Datasheet | GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 56V | 3.6A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-24-U-P51AC/DC DESKTOP ADAPTER 24V 199W |
1,459 |
|
Datasheet | GaN, SDI200G-U (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 8.3A | 199 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.34" L x 2.13" W x 1.31" H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
SDI300G-24-UR-P219AC/DC DESKTOP ADAPTER 24V 300W |
2,663 |
|
Datasheet | GaN, SDI300G-UR (300W) | Box | Active | International | Desktop | Cord | 85 ~ 264 VAC | 24V | 12.5A | 300 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 47.2" (1.20m) | IEC 320-C18 | - | 7.20" L x 3.35" W x 1.38" H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
SMI12-12-KB-P6AC/DC WALL MOUNT ADAPTER 12V 12W |
1,951 |
|
Datasheet | SMI12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 750mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) | CE, cUIus, FCC, PSE |
|

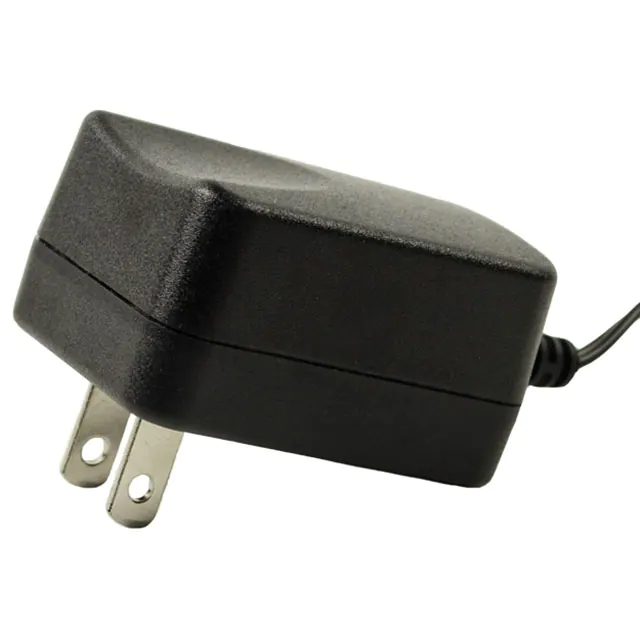

SWM12-24-NV-P5AC/DC WALL MOUNT ADAPTER 24V 12W |
2,811 |
|
Datasheet | SWM12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.11" L x 1.62" W x 1.11" H (53.5mm x 41.2mm x 28.2mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SMI6B-15-V-P5AC/DC WALL MOUNT ADAPTER 15V 6W |
4,484 |
|
Datasheet | SMI6B (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 400mA | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade (Included) | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|
SMM6-5-K-P5AC/DC WALL MOUNT ADAPTER 5V 6W |
1,446 |
|
Datasheet | SMM6 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CB Scheme, CSA, EN, FCC, IEC, UL |
|
SWI12-24-N-P5RAC/DC WALL MOUNT ADAPTER 24V 12W |
1,657 |
|
Datasheet | SWI12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL |
