AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETMA480416UC-P51-WPAC/DC DESKTOP ADAPTER 48V 200W |
3,800 |
|
Datasheet | ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 4.16A | 200 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | TUV, UL |
|
|
ETMA360555UC-P51-WPAC/DC DESKTOP ADAPTER 36V 200W |
1,956 |
|
Datasheet | ETMA-U (200W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 36V | 5.55A | 200 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 7.42" L x 4.11" W x 2.36" H (188.5mm x 104.5mm x 60.0mm) | TUV, UL |
|
EMSA120050-P6P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
4,033 |
|
Datasheet | EMSA (6W) | Bulk | Obsolete | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 500mA | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade (Included) | - | 2.44" L x 1.59" W x 1.18" H (62.0mm x 40.5mm x 30.0mm) | CCC, CE, cULus, GS, PSE, RCM |
|

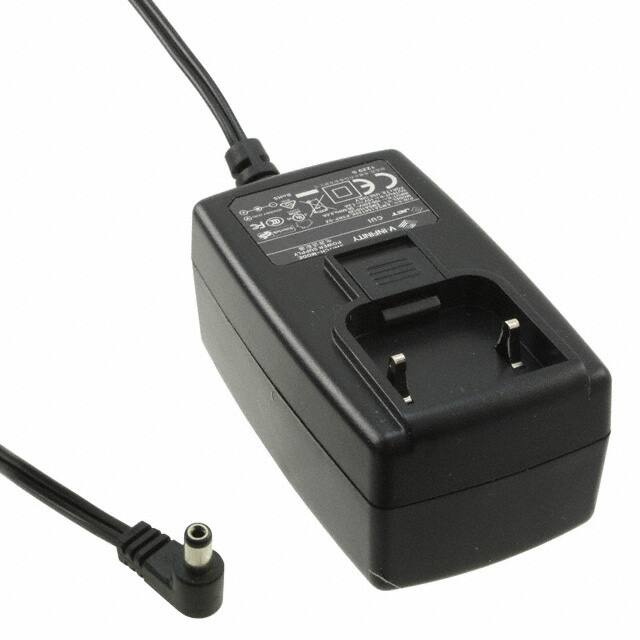

EMSA150120K-P5RP-SZAC/DC WALL MOUNT ADAPTER 15V 18W |
3,025 |
|
Datasheet | EMSA (18W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 1.2A | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE |
|
EMSA050300-P6P-SZAC/DC WALL MOUNT ADAPTER 5V 15W |
2,026 |
|
Datasheet | EMSA (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CCC, CE, cULus, GS, PSE |
|
EPSA120050UW-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
1,963 |
|
Datasheet | EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA050120UW-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
2,032 |
|
Datasheet | EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
EPSA050120U-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
3,135 |
|
Datasheet | EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA120050U-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
3,158 |
|
Datasheet | EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA033180U-P6P-SZAC/DC WALL MOUNT ADAPTER 3.3V 6W |
1,388 |
|
Datasheet | EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 3.3V | 1.8A | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | cULus, PSE |
