AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DTM050200UDC-P5-HFAC/DC DESKTOP ADAPTER 5V 10W |
1,679 |
|
Datasheet | - | Bulk | Obsolete | - | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 2A | 10 W | - | Positive Center | Medical | - | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 2.93" L x 1.83" W x 1.14" H (74.5mm x 46.5mm x 29.0mm) | - |
|
DTM060200UDC-P5-HFAC/DC DESKTOP ADAPTER 6V 12W |
3,373 |
|
Datasheet | - | Bulk | Obsolete | - | Desktop (Class I) | Cord | 90 ~ 264 VAC | 6V | 2A | 12 W | - | Positive Center | Medical | - | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 2.93" L x 1.83" W x 1.14" H (74.5mm x 46.5mm x 29.0mm) | - |
|
DTM120167UDC-P5-HFAC/DC DESKTOP ADAPTER 12V 20W |
2,829 |
|
Datasheet | - | Bulk | Obsolete | - | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 1.67A | 20 W | - | Positive Center | Medical | - | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 2.93" L x 1.83" W x 1.14" H (74.5mm x 46.5mm x 29.0mm) | - |
|
DPS120100UPS-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 12W |
3,026 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.36" L x 1.73" W x 0.98" H (60.0mm x 44.0mm x 25.0mm) | cULus |
|

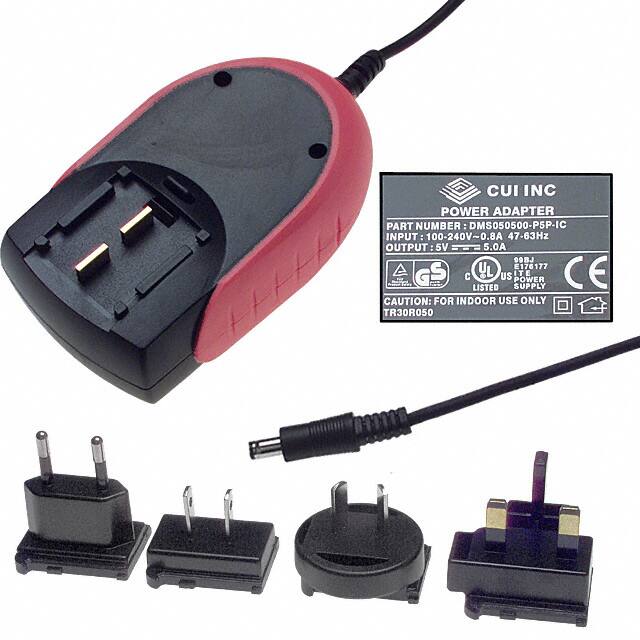

DMS050500-P5P-ICAC/DC WALL MOUNT ADAPTER 5V 25W |
2,147 |
|
Datasheet | - | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 5A | 25 W | - | Positive Center | ITE (Commercial) | 70% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 4.24" L x 2.27" W x 1.32" H (107.7mm x 57.7mm x 33.5mm) | CE, cULus, TUVgs |
|
DPD030050-P7P-SZAC/DC WALL MOUNT ADAPTER 3V 1.5W |
1,363 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 3V | 500mA | 1.5 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug R/A, 1.3mm I.D. x 3.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.20" L x 1.73" W x 1.46" H (56.0mm x 44.0mm x 37.0mm) | - |
|

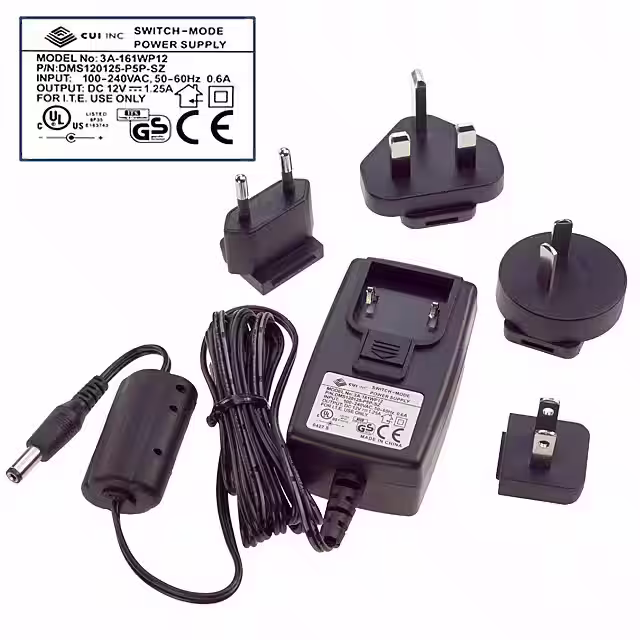

DMS120125-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 15W |
3,956 |
|
Datasheet | - | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | - | Positive Center | ITE (Commercial) | 60% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | Multi-Blade | - | 2.91" L x 1.71" W x 1.34" H (74.0mm x 43.5mm x 34.0mm) | CE, cULus, TUVgs |
|
DPD090050-P5P-TKAC/DC WALL MOUNT ADAPTER 9V 1.8W |
2,691 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 500mA | 1.8 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.52" L x 1.77" W x 1.55" H (64.0mm x 45.0mm x 39.5mm) | cULus |
|
|
DPD090100-P1P-TKAC/DC WALL MOUNT ADAPTER 9V 9W |
4,589 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 1A | 9 W | - | Positive Tip, Negative Sleeve | ITE (Commercial) | - | - | Phono Plug, 3.5mm O.D. x 14.5mm | 72" (1.83m) | NEMA 1-15P | - | 3.06" L x 2.19" W x 1.77" H (77.6mm x 55.6mm x 45.0mm) | cULus |
|
|
DPD120020-P1P-TKAC/DC WALL MNT ADAPTER 12V 2.4W |
1,872 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 200mA | 2.4 W | - | Positive Tip, Negative Sleeve | ITE (Commercial) | - | - | Phono Plug, 3.5mm O.D. x 14.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.50" W x 1.35" H (62.2mm x 38.0mm x 34.2mm) | cULus |
