AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

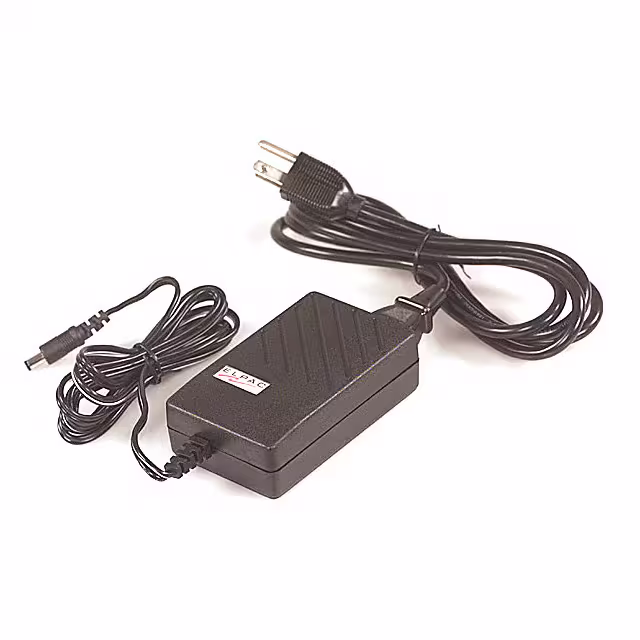

FW3015-760-NCAC/DC DESKTOP ADAPTER 15V 30W |
2,558 |
|
Datasheet | FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 2A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
FW3024-760-NCAC/DC DESKTOP ADAPTER 24V 30W |
3,469 |
|
Datasheet | FW30 (30W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 1.25A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|

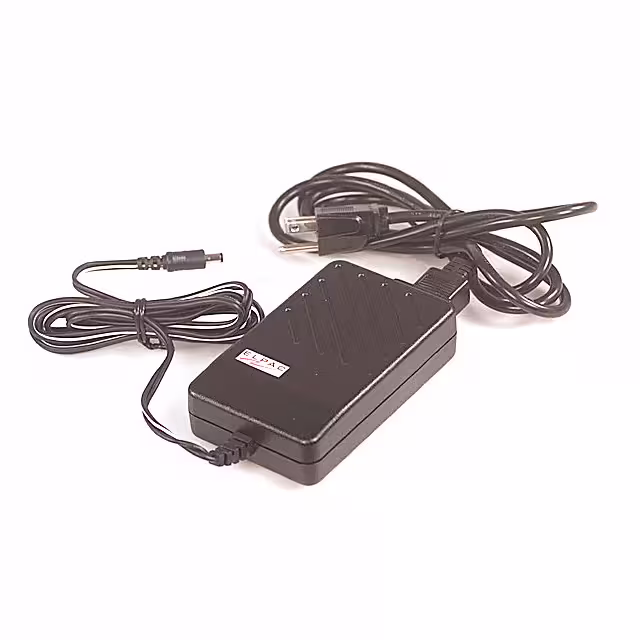

FW5012-760-NCAC/DC DESKTOP ADAPTER 12V 50W |
4,673 |
|
Datasheet | FW50 (50W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 4.15A | 50 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | - |
|
FW10024-D5-NCAC/DC DESKTOP ADAPTER 24V 96W |
3,959 |
|
Datasheet | FW100 (96W) | - | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 4A | 96 W | - | - | ITE (Commercial) | 80% | 0°C ~ 60°C | DIN, 5 Pin | - | IEC 320-C14 | - | 6.50" L x 3.85" W x 2.60" H (165.0mm x 98.0mm x 66.0mm) | - |
|
WM1830/.6-760AC/DC WALL MOUNT ADAPTER 30V 18W |
4,775 |
|
- |
WM | - | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 108 ~ 132 VAC | 30V | 600mA | 18 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | NEMA 1-15P | - | - | - |
|
FW1805-760AC/DC DESKTOP ADAPTER 5V 15W |
1,932 |
|
Datasheet | FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
|
FW1812-760AC/DC DESKTOP ADAPTER 12V 18W |
2,477 |
|
Datasheet | FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 1.5A | 18 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
|
FW1824-760AC/DC DESKTOP ADAPTER 24V 18W |
1,592 |
|
Datasheet | FW18 (18W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 24V | 750mA | 18 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 3.35" L x 1.97" W x 1.30" H (85.0mm x 50.0mm x 33.0mm) | - |
|
FW3012-760AC/DC DESKTOP ADAPTER 12V 30W |
3,530 |
|
Datasheet | FW30 (30W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 12V | 2.5A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
|
|
FW3015-760AC/DC DESKTOP ADAPTER 15V 30W |
3,873 |
|
Datasheet | FW30 (30W) | - | Obsolete | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 15V | 2A | 30 W | - | Positive Center | ITE (Commercial) | 80% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | - | IEC 320-C14 | - | 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm) | - |
