AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VMS-45-15AC/DC CONVERTER 2X15V 45W |
2,429 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 15V | 15V | - | - | - | - | 3 A | - | - | - | - | - | 45W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
VMS-45-3AC/DC CONVERTER 2X3.3V 26W |
2,793 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | 3.3V | - | - | - | - | 8 A | - | - | - | - | - | 26W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
PSK-60-24-TAC/DC CONVERTER 24V 60W |
1,621 |
|
Datasheet | PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) |
|
VGS-100W-5-BAC/DC CONVERTER 5V 90W |
2,107 |
|
Datasheet | VGS-100W (100W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
VGS-150W-24-BAC/DC CONVERTER 24V 150W |
3,149 |
|
Datasheet | VGS-150W (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

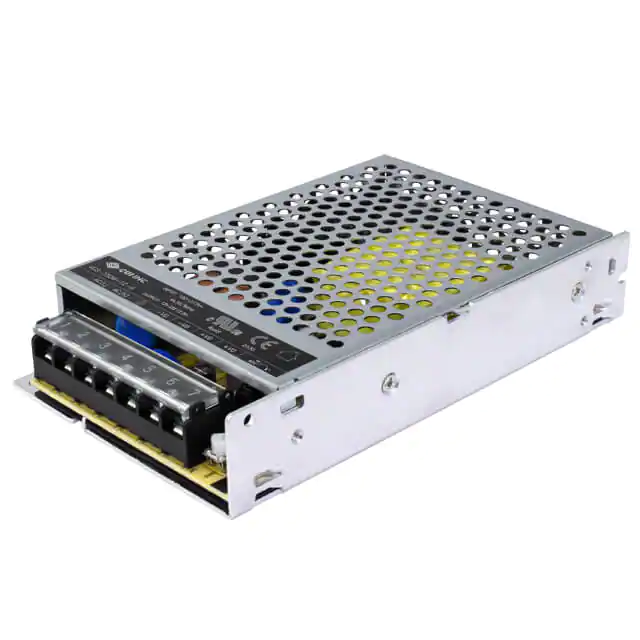

VGS-150W-12-AAC/DC CONVERTER 12V 150W |
4,954 |
|
Datasheet | VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
VOF-50-12AC/DC CONVERTER 12V 50W |
4,839 |
|
Datasheet | VOF-50 (50W) | Box | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
|
VGS-150W-48-AAC/DC CONVERTER 48V 158W |
4,231 |
|
Datasheet | VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
VGS-150W-15-AAC/DC CONVERTER 15V 150W |
1,514 |
|
Datasheet | VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
VGS-150W-36-AAC/DC CONVERTER 36V 154W |
1,878 |
|
Datasheet | VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 154W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
