AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-15W-48-BAC/DC CONVERTER 48V 15W |
4,747 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
VGS-15W-15-AAC/DC CONVERTER 15V 15W |
1,407 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
VGS-15W-3-AAC/DC CONVERTER 3.3V 10W |
3,794 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
VGS-15W-24-AAC/DC CONVERTER 24V 15W |
1,750 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
VGS-15W-5-AAC/DC CONVERTER 5V 15W |
4,366 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
VGS-15W-24-BAC/DC CONVERTER 24V 15W |
3,583 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|

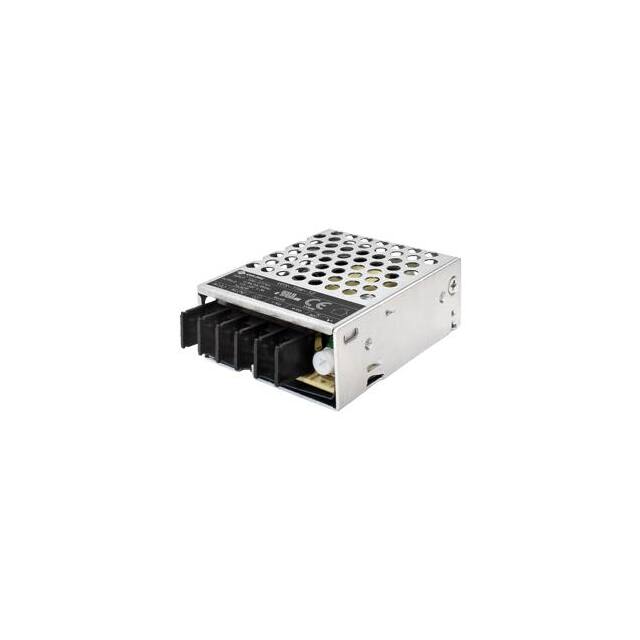

VGS-15W-15-BAC/DC CONVERTER 15V 15W |
3,817 |
|
Datasheet | VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
PSK-S5B-3-LAC/DC CONVERTER 3.3V 3.3W |
3,337 |
|
Datasheet | PSK-S5B (5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 1 A | - | - | - | - | - | 3.3W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
|
|
PSK-S5B-12-LAC/DC CONVERTER 12V 5W |
4,233 |
|
Datasheet | PSK-S5B (5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 420 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
|
PSK-S3-15-LAC/DC CONVERTER 15V 3W |
3,982 |
|
Datasheet | PSK-S3 (3W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 200 mA | - | - | - | - | - | 3W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
