AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

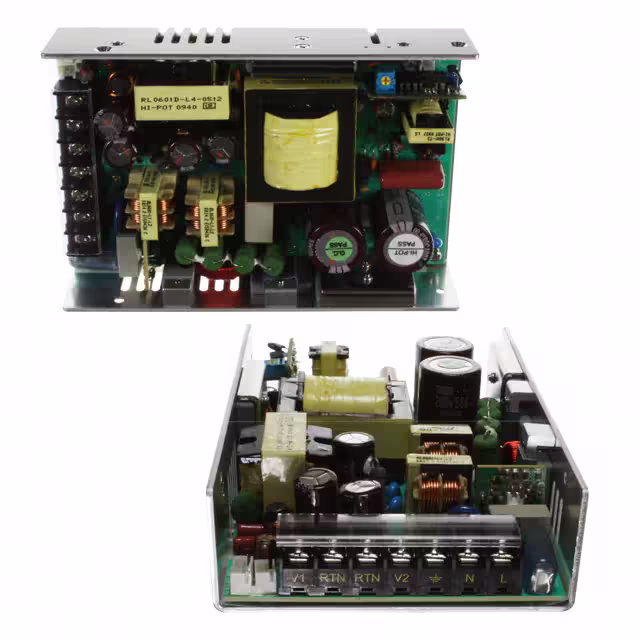

VF-D320-D512A-1AC/DC CONVERTER 5V 12V 320W |
4,884 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 12V | - | - | - | - | 30 A | 16.67 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|
VF-D320-D524A-1AC/DC CONVERTER 5V 24V 320W |
4,428 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 24V | - | - | - | - | 30 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|
VF-S320-05A-CFS-1AC/DC CONVERTER 5V 320W |
2,489 |
|
Datasheet | VF-S320 (320W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 45 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output | Chassis Mount | 7.00" L x 4.00" W x 1.55" H (177.8mm x 101.6mm x 39.3mm) |
|
VF-D320-D512A-CFS-1AC/DC CONVERTER 5V 12V 320W |
2,163 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 12V | - | - | - | - | 30 A | 16.67 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
|

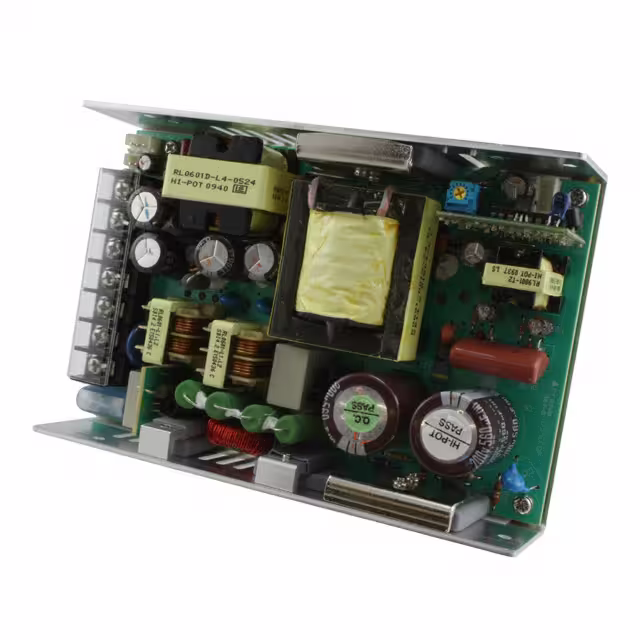

VF-D320-D524A-CFS-1AC/DC CONVERTER 5V 24V 320W |
2,346 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 24V | - | - | - | - | 30 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
|
VF-D320-D548A-CFS-1AC/DC CONVERTER 5V 48V 320W |
4,241 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
VF-S320-09AAC/DC CONVERTER 9V 320W |
1,170 |
|
Datasheet | VF-S320 (320W) | Box | Obsolete | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 9V | - | - | - | - | - | 32 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|
|
VF-D320-D548AAC/DC CONVERTER 5V 48V 320W |
4,128 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|
|
VF-D320-D548A-CFSAC/DC CONVERTER 5V 48V 320W |
4,129 |
|
Datasheet | VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
|
VF-S320-05AAC/DC CONVERTER 5V 320W |
3,260 |
|
Datasheet | VF-S320 (320W) | Box | Obsolete | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 27 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
