AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

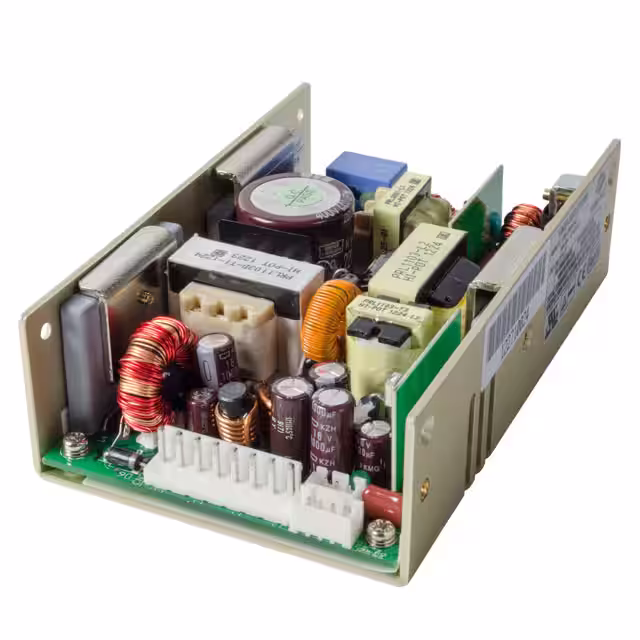

VMS-300-36-CF-1AC/DC CONVERTER 36V 300W |
1,724 |
|
Datasheet | VMS-300-CF (300W) | Tray | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 300W | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 2.00" H (127.0mm x 81.3mm x 50.8mm) |
|
VMS-300-D1224-CFAC/DC CONVERTER 12V 24V 120W |
3,006 |
|
Datasheet | VMS-300-CF (300W) | Tray | Active | Enclosed | 2 | 90 ~ 264 VAC | 12V | 24V | - | - | - | - | 10 A | 5 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 2.00" H (127.0mm x 81.3mm x 50.8mm) |
|
VMS-300-D1224-CFSAC/DC CONVERTER 12V 24V 120W |
1,954 |
|
Datasheet | VMS-300-CFS (300W) | Tray | Active | Enclosed | 2 | 90 ~ 264 VAC | 12V | 24V | - | - | - | - | 10 A | 5 A | - | - | - | - | 120W (240W Forced Air) | Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.50" L x 3.20" W x 1.60" H (165.1mm x 81.3mm x 40.6mm) |
|
VOF-25-5AC/DC CONVERTER 5V 25W |
2,766 |
|
Datasheet | VOF-25 (25W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.54" L x 2.01" W x 0.80" H (90.0mm x 51.0mm x 20.3mm) |
|
|
VOF-25-12AC/DC CONVERTER 12V 25W |
4,676 |
|
Datasheet | VOF-25 (25W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.54" L x 2.01" W x 0.80" H (90.0mm x 51.0mm x 20.3mm) |
|
|
VOF-25-15AC/DC CONVERTER 15V 25W |
2,084 |
|
Datasheet | VOF-25 (25W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.54" L x 2.01" W x 0.80" H (90.0mm x 51.0mm x 20.3mm) |
|
|
VOF-25-24AC/DC CONVERTER 24V 25W |
3,392 |
|
Datasheet | VOF-25 (25W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.54" L x 2.01" W x 0.80" H (90.0mm x 51.0mm x 20.3mm) |
|
VOF-45-12AC/DC CONVERTER 12V 45W |
1,707 |
|
Datasheet | VOF-45 (45W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 12V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) |
|
|
VOF-45-15AC/DC CONVERTER 15V 45W |
1,359 |
|
Datasheet | VOF-45 (45W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) |
|
|
VOF-45-24AC/DC CONVERTER 24V 45W |
4,677 |
|
Datasheet | VOF-45 (45W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) |
