AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-500B-18-HAC-DC, 500 W, 18 VDC, SINGLE OUT |
4,769 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 27.78 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-30-HAC-DC, 500 W, 30 VDC, SINGLE OUT |
1,888 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-28-HAC-DC, 500 W, 28 VDC, SINGLE OUT |
2,132 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 28V | - | - | - | - | - | 17.86 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-12-HAC-DC, 500 W, 12 VDC, SINGLE OUT |
3,997 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 41.67 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-48-PCAC-DC, 500 W, 48 VDC, SINGLE OUT |
4,592 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 10.42 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-36-PCAC-DC, 500 W, 36 VDC, SINGLE OUT |
1,966 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 13.89 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-24-HAC-DC, 500 W, 24 VDC, SINGLE OUT |
3,055 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|
|
VGS-500B-30-PCAC-DC, 500 W, 30 VDC, SINGLE OUT |
4,379 |
|
Datasheet | VGS-500B (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 500W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) |
|

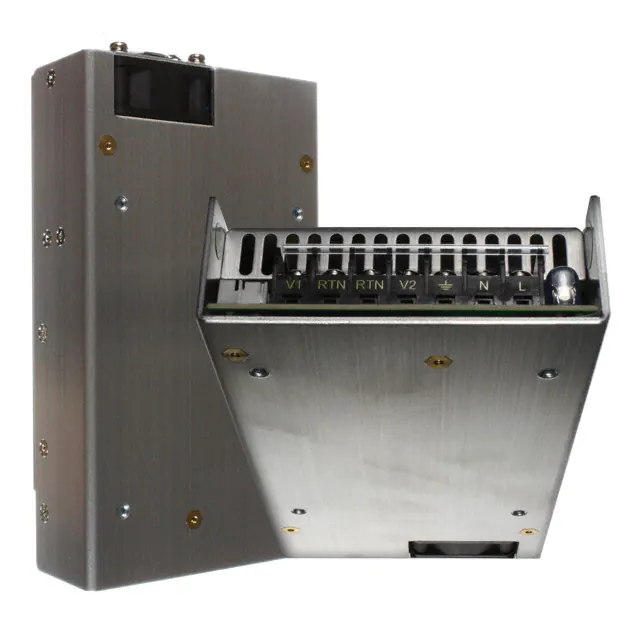

VF-D320-D1224A-CFS-1AC/DC CONVERTER 12V 24V 320W |
2,359 |
|
Datasheet | VF-D320-D (300W) | Box | Active | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 12V | 24V | - | - | - | - | 16.67 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
PCM-400-15-UAC/DC CONVERTER 15V 220W |
4,052 |
|
Datasheet | PCM-400 (400W) | Tray | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 14.67 A | - | - | - | - | - | 220W (400W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
