AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSBU-150-9AC/DC CONVERTER 9V 144W |
2,396 |
|
Datasheet | VSBU-150 (150W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 16 A | - | - | - | - | - | 144W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|

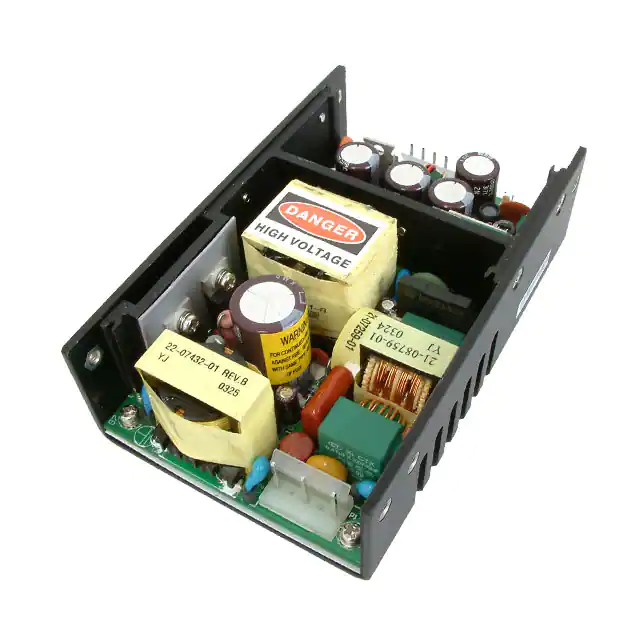

VSUU-150-36AC/DC CONVERTER 36V 150W |
3,904 |
|
Datasheet | VSUU-150 (150W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.21" W x 1.62" H (127.0mm x 81.6mm x 41.2mm) |
|

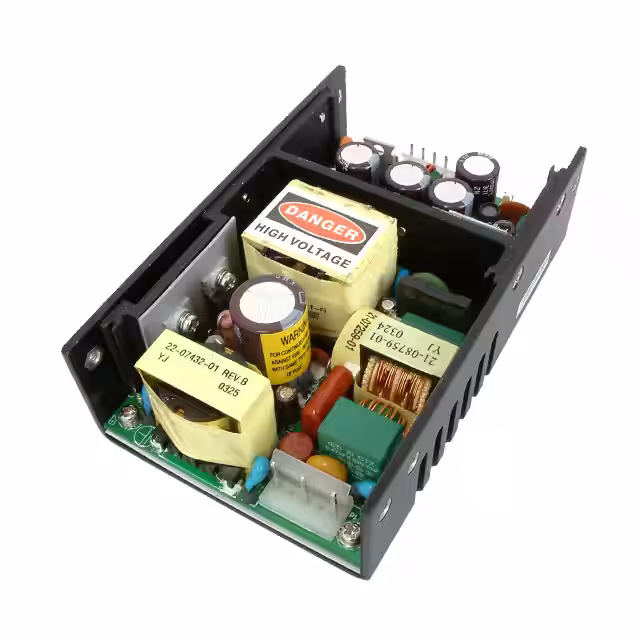

VSUU-150-9AC/DC CONVERTER 9V 144W |
3,332 |
|
Datasheet | VSUU-150 (150W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 16 A | - | - | - | - | - | 144W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.21" W x 1.62" H (127.0mm x 81.6mm x 41.2mm) |
|
VOF-225A-12-1AC/DC CONVERTER 12V 120W |
1,239 |
|
Datasheet | VOF-225A (225W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225A-15-1AC/DC CONVERTER 15V 120W |
4,265 |
|
Datasheet | VOF-225A (225W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225A-24-1AC/DC CONVERTER 24V 120W |
4,610 |
|
Datasheet | VOF-225A (225W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225A-30-1AC/DC CONVERTER 30V 120W |
1,253 |
|
Datasheet | VOF-225A (225W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225A-48-1AC/DC CONVERTER 48V 120W |
3,435 |
|
Datasheet | VOF-225A (225W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225A-58-1AC/DC CONVERTER 58V 120W |
4,419 |
|
Datasheet | VOF-225A (225W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 58V | - | - | - | - | - | 2.07 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
VMS-450B-56AC-DC, 450 W, 56 VDC, SINGLE OUT |
1,510 |
|
- |
VMS-450B (450W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 56V | - | - | - | - | - | 8 A | - | - | - | - | - | 450W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) |
