AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSUU-120-T515AAC/DC CONVERTER 5V +/-15V 120W |
2,537 |
|
Datasheet | VSUU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
VSBU-120-T3125BAC/DC CONVERTER 3.3V 12V 5V 120W |
3,639 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 3.3V | 12V | 5V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-D312AC/DC CONVERTER 3.3V 12V 120W |
4,477 |
|
Datasheet | VSBU-120-D (120W) | Box | Not For New Designs | Open Frame | 2 | 90 ~ 260 VAC | 3.3V | 12V | - | - | - | - | 15 A | 6 A | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-T305BAC/DC CONVERTER 5V 24V 12V 120W |
3,958 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 5V | 24V | 12V | - | - | - | 15 A | 3.5 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-T125AAC/DC CONVERTER 5V 12V -5V 120W |
3,811 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 5V | 12V | -5V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-T125BAC/DC CONVERTER 5V 12V 5V 120W |
3,018 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 5V | 12V | 5V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|

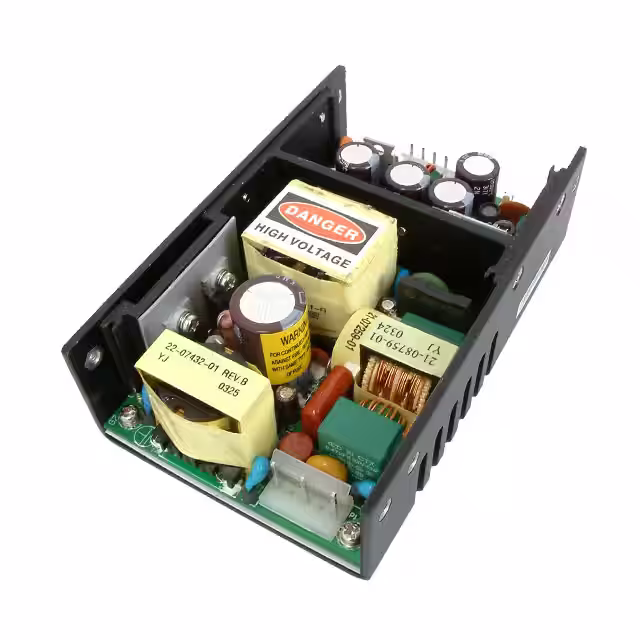

VSUU-150-48AC/DC CONVERTER 48V 150W |
3,050 |
|
Datasheet | VSUU-150 (150W) | Box | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.21" W x 1.62" H (127.0mm x 81.6mm x 41.2mm) |
|
|
VSBU-120-T512BAC/DC CONVERTER 5V 2X12V 120W |
3,395 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 5V | 12V | 12V | - | - | - | 15 A | 6 A | 1 A | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-T312AAC/DC CONVERTER 3.3V +/-12V 120W |
2,397 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 3.3V | 12V | -12V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSBU-120-T312BAC/DC CONVERTER 3.3V 2X12V 120W |
4,798 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 3.3V | 12V | 12V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
