AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSUU-120-T312AAC/DC CONVERTER 3.3V +/-12V 120W |
3,998 |
|
Datasheet | VSUU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC, 130 ~ 370 VDC | 3.3V | 12V | -12V | - | - | - | 15 A | 4 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSUU-120-T515BAC/DC CONVERTER 5V 2X15V 120W |
2,277 |
|
Datasheet | VSUU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | 15V | 15V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSUU-120-T524AAC/DC CONVERTER 5V +/-24V 120W |
2,390 |
|
Datasheet | VSUU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | 24V | -24V | - | - | - | 15 A | 3.5 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSUU-120-T524BAC/DC CONVERTER 5V 2X24V 120W |
4,123 |
|
Datasheet | VSUU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | 24V | 24V | - | - | - | 15 A | 3.5 A | 800 mA | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
VSBU-120-D515AC/DC CONVERTER 5V 15V 120W |
1,742 |
|
Datasheet | VSBU-120-D (120W) | Box | Not For New Designs | Open Frame | 2 | 90 ~ 260 VAC | 5V | 15V | - | - | - | - | 15 A | 6 A | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSUU-120-D285AC/DC CONVERTER 28V 5V 120W |
3,789 |
|
Datasheet | VSUU-120-D (120W) | Box | Not For New Designs | Open Frame | 2 | 90 ~ 260 VAC, 130 ~ 370 VDC | 28V | 5V | - | - | - | - | 3.92 A | 2 A | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
|
VSUU-120-D524BAC/DC CONVERTER 5V -24V 120W |
4,717 |
|
Datasheet | VSUU-120-D (120W) | Box | Not For New Designs | Open Frame | 2 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | -24V | - | - | - | - | 15 A | 2 A | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|

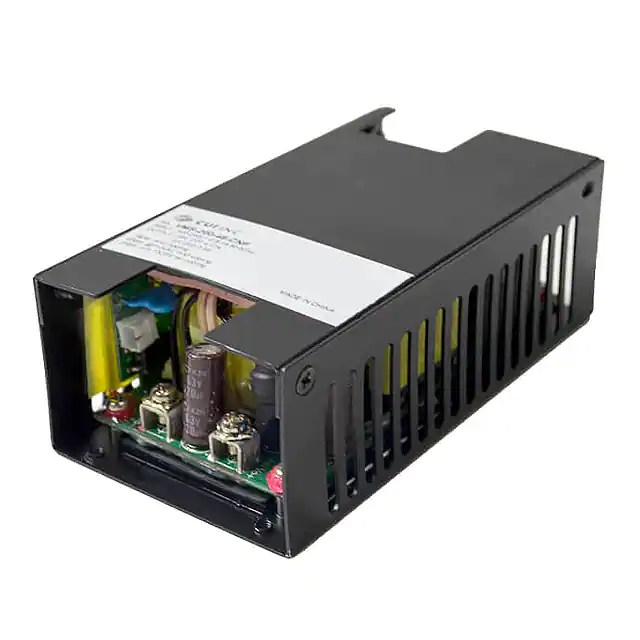

VMS-200-12-CNFAC/DC CONVERTER 12V 200W |
1,185 |
|
Datasheet | VMS-130-CNF (130W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 200W | Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
VMS-200-24-CNFAC/DC CONVERTER 24V 200W |
1,586 |
|
Datasheet | VMS-200-CNF (200W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
|
|
VMS-200-48-CNFAC/DC CONVERTER 48V 200W |
4,354 |
|
Datasheet | VMS-200-CNF (200W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.58" H (117.0mm x 62.0mm x 40.0mm) |
