AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO30-20B24MUAC/DC CONVERTER 24V 30W |
1,833 |
|
Datasheet | LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO30-20B03MUAC/DC CONVERTER 3.3V 20W |
2,251 |
|
Datasheet | LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO30-20B48MUAC/DC CONVERTER 48V 30W |
4,214 |
|
Datasheet | LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 625 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO30-20B36MUAC/DC CONVERTER 36V 30W |
3,124 |
|
Datasheet | LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 36V | - | - | - | - | - | 833 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B48MUOPEN FRAME AC DC CONVERTERS 45W |
4,087 |
|
Datasheet | LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 940 mA | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B24MUOPEN FRAME AC DC CONVERTERS 45W |
3,571 |
|
Datasheet | LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.875 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B12MUOPEN FRAME AC DC CONVERTERS 45W |
4,354 |
|
Datasheet | LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
LM15-23B03AC/DC CONVERTER 3.3V 10W |
3,145 |
|
Datasheet | 305RAC / LM-23B | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|

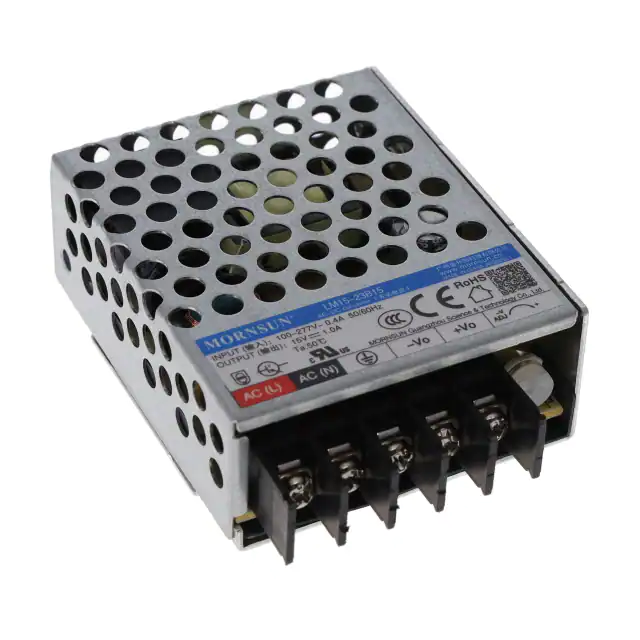

LM15-23B15AC/DC CONVERTER 15V 15W |
1,277 |
|
Datasheet | 305RAC / LM-23B | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
|
LM75-23B24R2AC/DC CONVERTER 24V 77W |
3,972 |
|
Datasheet | LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
